Category 6A Cable
Our Category 6A Copper Cable offers a wide range of options for your CAT 6A network. Some options that are available include small diameter, snake, industrial, non-bonded, and patented Bonded-Pair. The 10GXS Cable is the industry’s gold standard for performance, while the 10GXW cable is designed for smart building and multi-gigabit applications with performance optimized for in-building wireless networks. Belden’s newest cable, the 10GXM, is the industry’s smallest-diameter category 6A cable designed with the needs of data-intensive structures in mind.
Features & Benefits
- Reliable network performance: Designed for mission-critical situations that require constant uptime, whether indoor or outside
- Best-in-class system noise immunity: Achieved through outstanding cable balance, is less susceptible to RFI/EMI in noisy environments
- Space- and cost-saving: 10GXM’s 0.230” (5.84 mm) outside diameter unlocks new installation opportunities while reducing conduit expenditures
- Unparalleled performance: Full 100m channel length under 100W PoE load without derating up to 60°C using 10GXS cables
- Designed to Last: Higher pulling tensions and tighter bend radii offered by Bonded-Pair Cables
50 product families
10GXW13
10GXW (0.250”) Category 6A Cable, 4 Pair, U/UTP, CMP
23 AWG · BC - Bare Copper · FEP - Fluorinated Ethylene Propylene · PVC - Polyvinyl Chloride
19 items
10GXM13
10GXM (0.230”) Category 6A Cable, 4 Pair, U/UTP, CMP
23 AWG · BC - Bare Copper · FEP - Fluorinated Ethylene Propylene · PVC - Polyvinyl Chloride
12 items

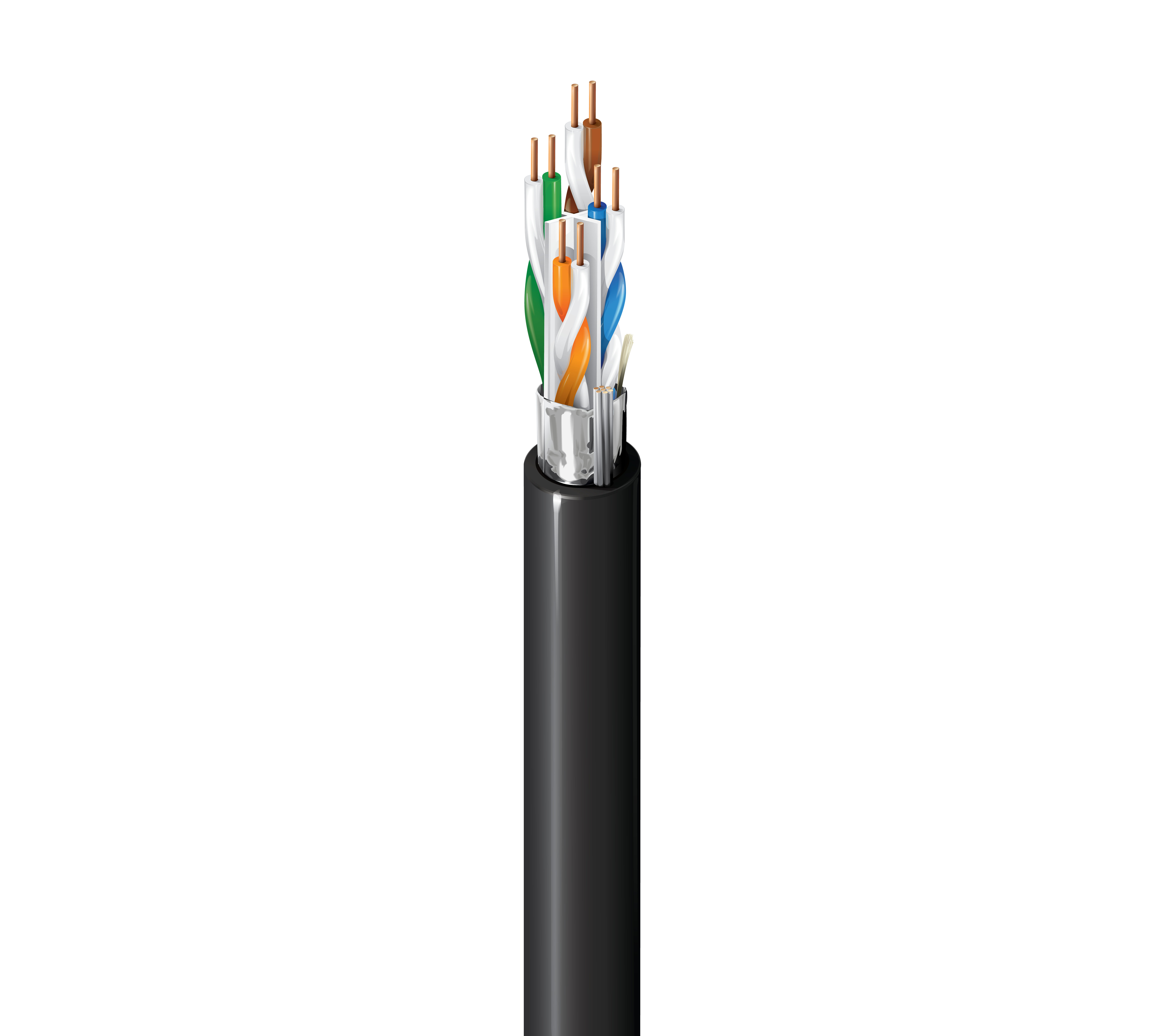

10GXW53
10GXW (0.265”) Category 6A Cable, 4 Pair, F/UTP, CMP
23 AWG · BC - Bare Copper · FEP - Fluorinated Ethylene Propylene · PVC - Polyvinyl Chloride
12 itemsDAUP
Category 6A Cable, 4 Pair, U/UTP, CMP
23 AWG · BC - Bare Copper · FEP - Fluorinated Ethylene Propylene · PVC - Polyvinyl Chloride
11 items

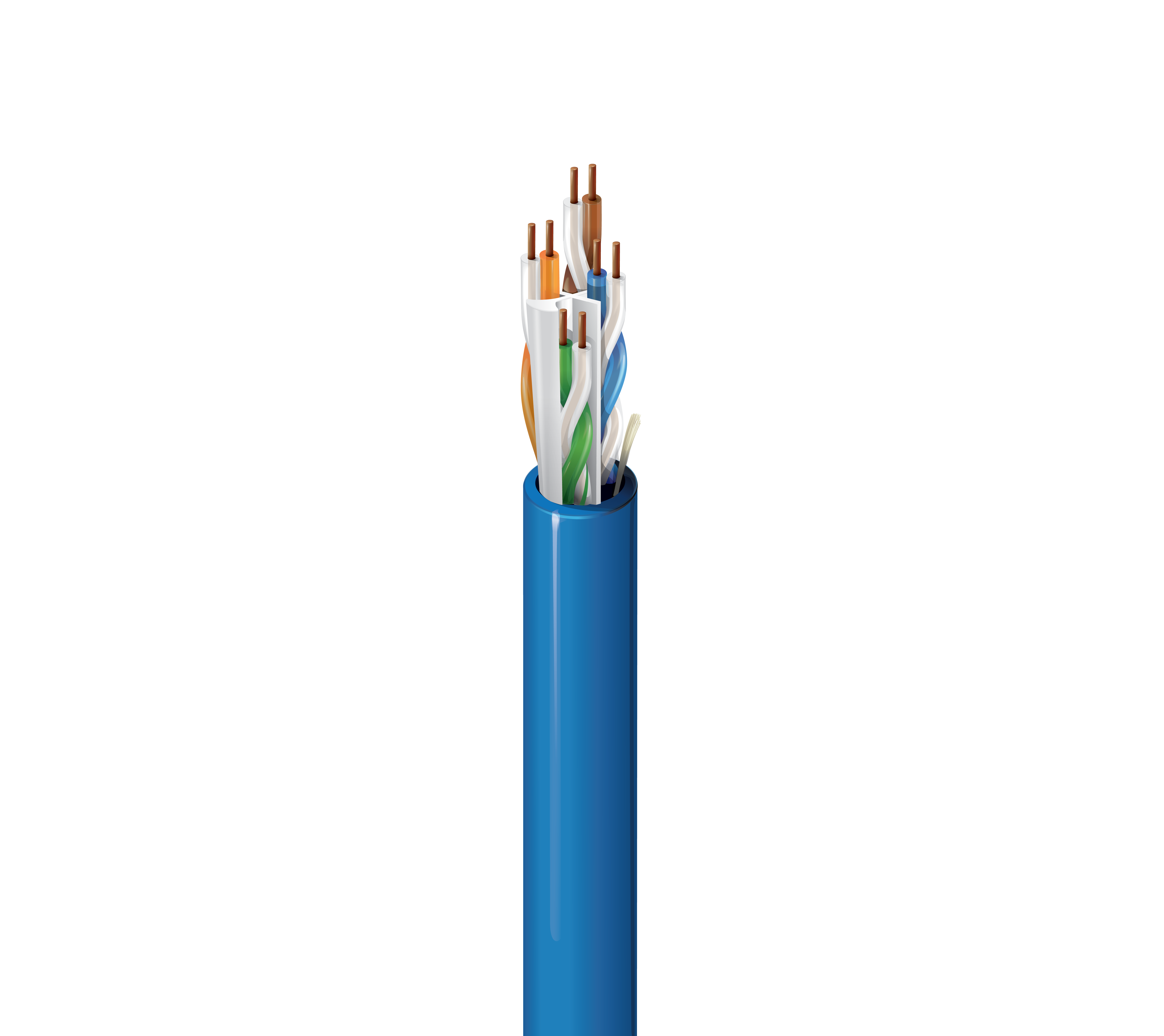

10GXS33
10GXS Category 6A Enhanced Cable, 4 Bonded-Pairs, U/UTP, CMP
23 AWG · BC - Bare Copper · FEP - Fluorinated Ethylene Propylene · PVC - Polyvinyl Chloride
10 items
10GA24
CAT 6A 4P 23AWG, U/UTP, LSZH Jkt, Indoor
23 · BC - Bare Copper · PE - Polyethylene · LSZH - Low Smoke Zero Halogen (Flame Retardant)
9 items
10GA22
CAT 6A 4P 23AWG, U/UTP, LSZH Jkt, Indoor
23 · BC - Bare Copper · PE - Polyethylene · LSZH - Low Smoke Zero Halogen (Flame Retardant)
8 items
10GA25
10GA25 Cat 6A Cable, F/UTP, LSZH, 4 Pair, AWG 23, Indoor
23 · BC - Bare Copper · PE - Polyethylene · LSZH - Low Smoke Zero Halogen (Flame Retardant)
8 items
DAUR
Category 6A Cable, 4 Pair, U/UTP, CMR
23 AWG · BC - Bare Copper · PO - Polyolefin · PVC - Polyvinyl Chloride
8 items

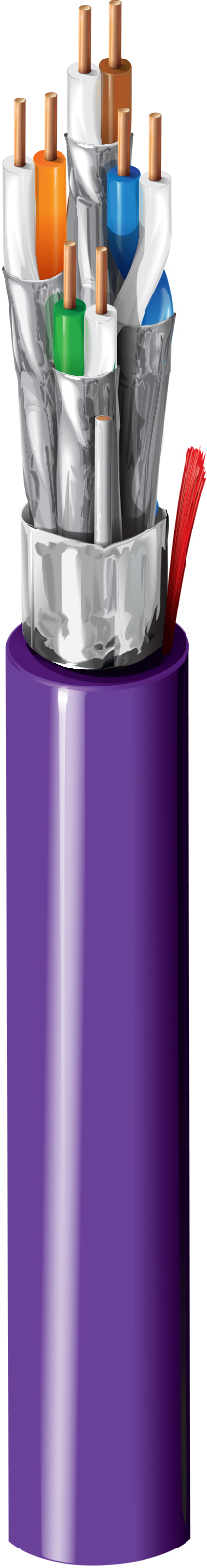

1685ANH
CAT 6A 4P 23AWG, F/FTP, LSZH Jkt, Indoor
23 · BC - Bare Copper · PE - Polyethylene (Foam) · LSZH - Low Smoke Zero Halogen (Flame Retardant)
7 items
10GXW52
10GXW (0.265”) Category 6A Cable, 4 Pair, F/UTP, CMR
23 AWG · BC - Bare Copper · PO - Polyolefin · PVC - Polyvinyl Chloride
6 items
10GAB1
CAT 6A 23AWG, U/UTP, LSZH Jkt, GB 31247 B1 Rating, Indoor
23 · BC - Bare Copper · PE - Polyethylene · LSZH - Low Smoke Zero Halogen (Flame Retardant)
5 items
10GAR
10GAR Category 6A U/UTP 4Pair, 23AWG, PVC Jacket Riser-CMR
23 AWG · BC - Bare Copper · PO - Polyolefin · PVC - Polyvinyl Chloride
4 itemsDAFR
DataConnect Category 6A Cable, 4 Pair, F/UTP, CMR
23 AWG · BC - Bare Copper · PO - Polyolefin · PVC - Polyvinyl Chloride
3 items
10GXV02
DNV GL, Shipboard, 10GX Category 6A Enhanced Cable, 4 Pair, S/FTP, LSZH Indoor CPR Eca
23 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · LSZH - Low Smoke Zero Halogen (Flame Retardant)
2 items

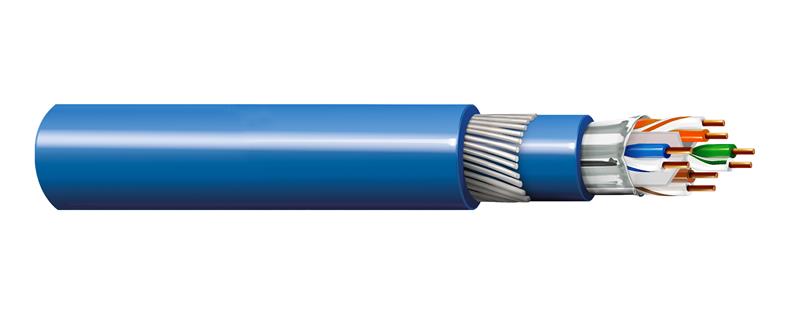

50106AFLS
BELDEN Industrial Ethernet CAT6A cable, F/UTP LSZH SWA LSZH, Outdoor
23 AWG · BC - Bare Copper · PE - Polyethylene · LSZH - Low Smoke Zero Halogen (Flame Retardant)
2 items

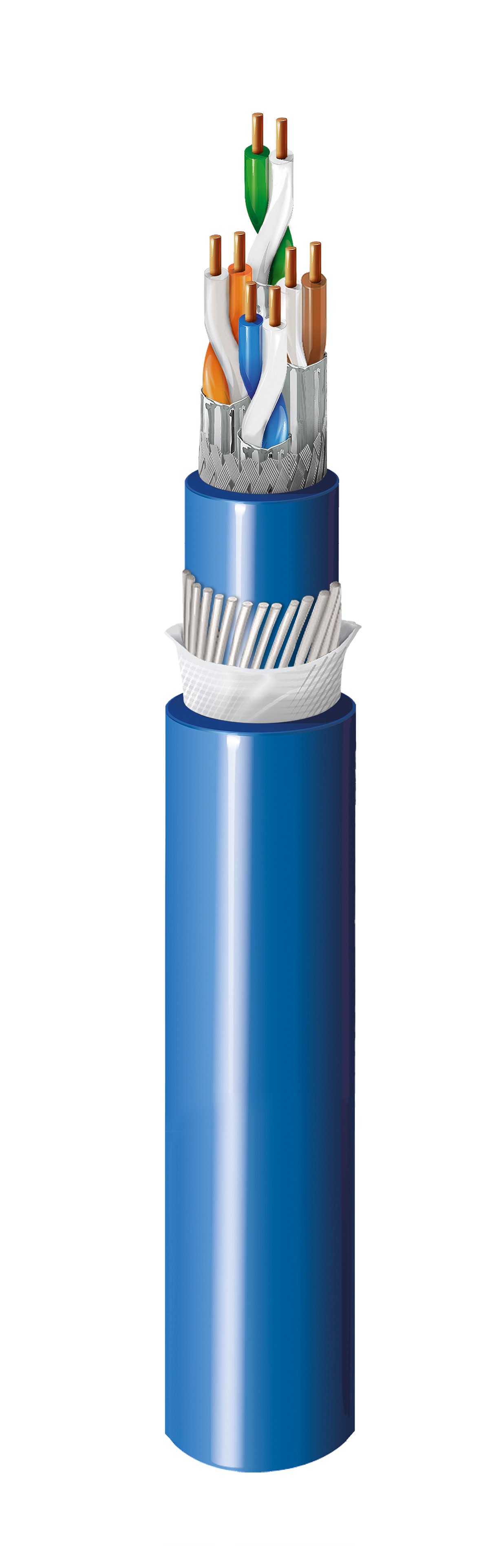

50106ASFLA
CAT 6A 4P23AWG, S/FTP, SWA, LSZH Jkt, Indoor/Outdoor
23 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · LSZH - Low Smoke Zero Halogen (Flame Retardant)
2 items

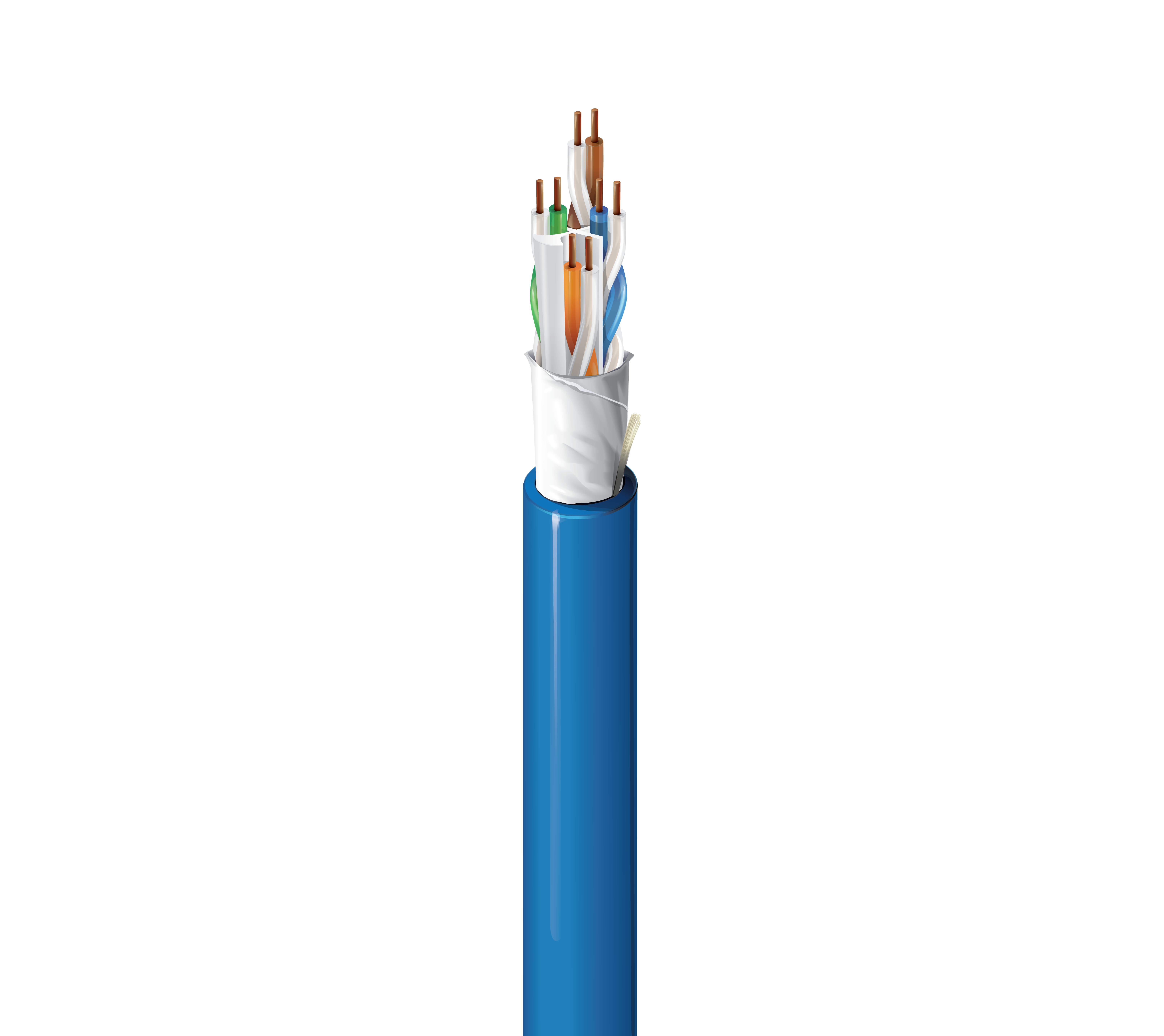

GigaLAN10 SD Cat 6A UTP CMP
Mohawk Category 6A Enhanced Cable, 4 Pair, U/UTP, CMP
23 AWG · BC - Bare Copper · FEP - Fluorinated Ethylene Propylene · PVC - Polyvinyl Chloride
2 items

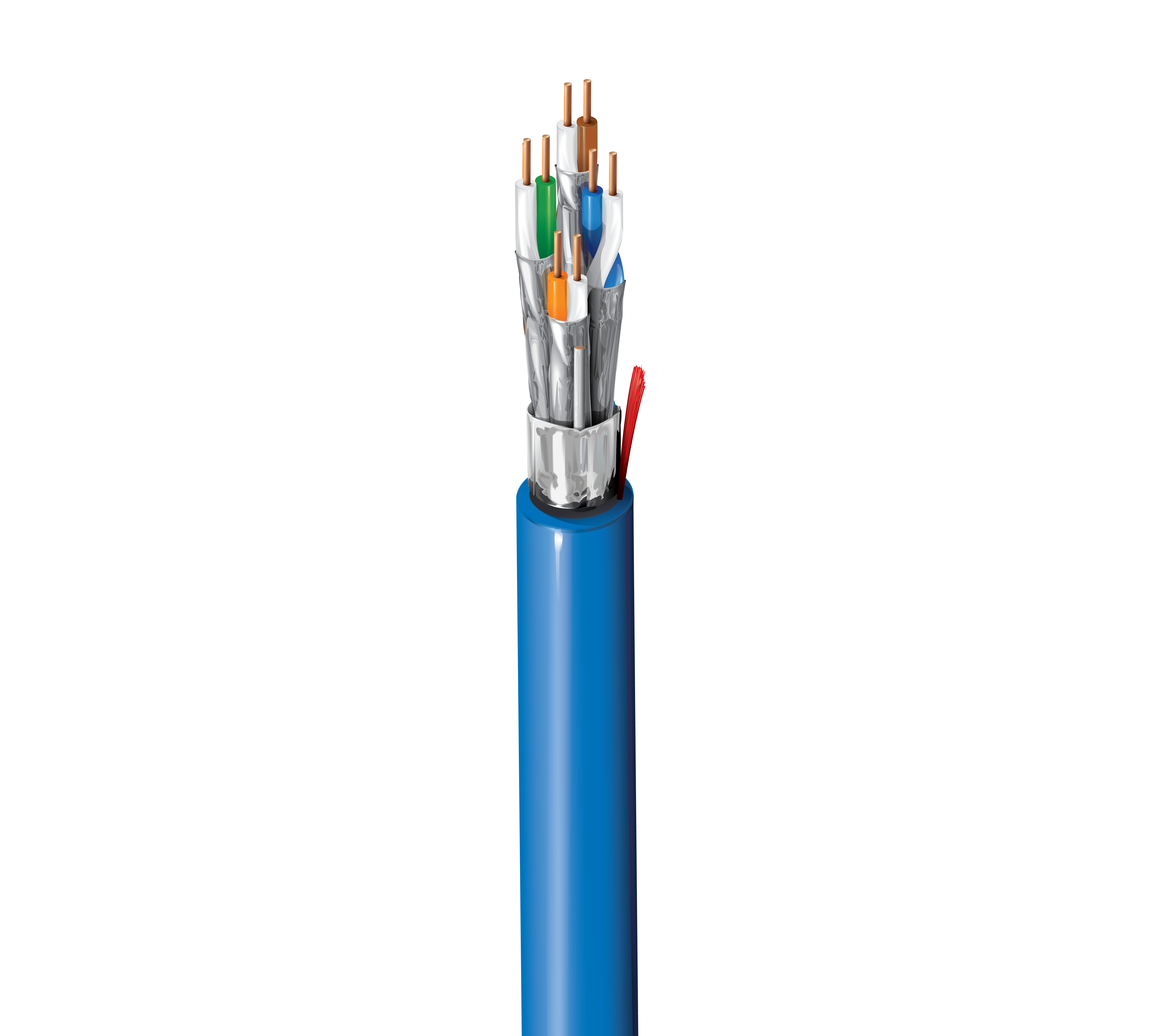

10GXV01
DNV GL, Shipboard, 10GX Category 6A Enhanced Cable, 4 Pair, F/FTP, LSZH Indoor CPR Eca
23 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · LSZH - Low Smoke Zero Halogen (Flame Retardant)
1 item
2141A
Category 6A Indoor/Outdoor Cable, 4 Pair, F/UTP, OSP/CM-ST1, LSZH
23 AWG · BC - Bare Copper · PO - Polyolefin · LSZH - Low Smoke Zero Halogen (Flame Retardant)
1 item
2142A
Category 6A Indoor/Outdoor Cable, 4 Pair, F/UTP, CMR/CMX
23 AWG · BC - Bare Copper · PO - Polyolefin · PVC - Polyvinyl Chloride
1 item

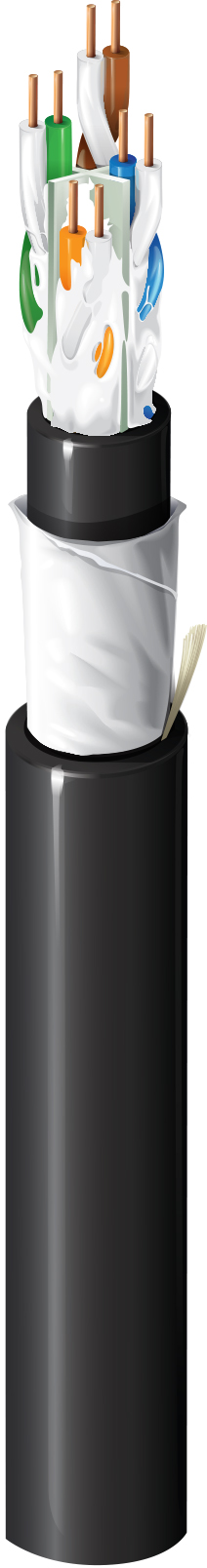

2147A
Category 6A Indoor/Outdoor Cable, 4 Pair, U/UTP, OSP/CM-ST1, LSZH
23 AWG · BC - Bare Copper · PO - Polyolefin · LSZH - Low Smoke Zero Halogen (Flame Retardant)
1 item2200EPE
Category 6A Cable, 4 Pair, F/UTP, PE Outdoor
23 AWG · BC - Bare Copper · PE - Polyethylene
1 item

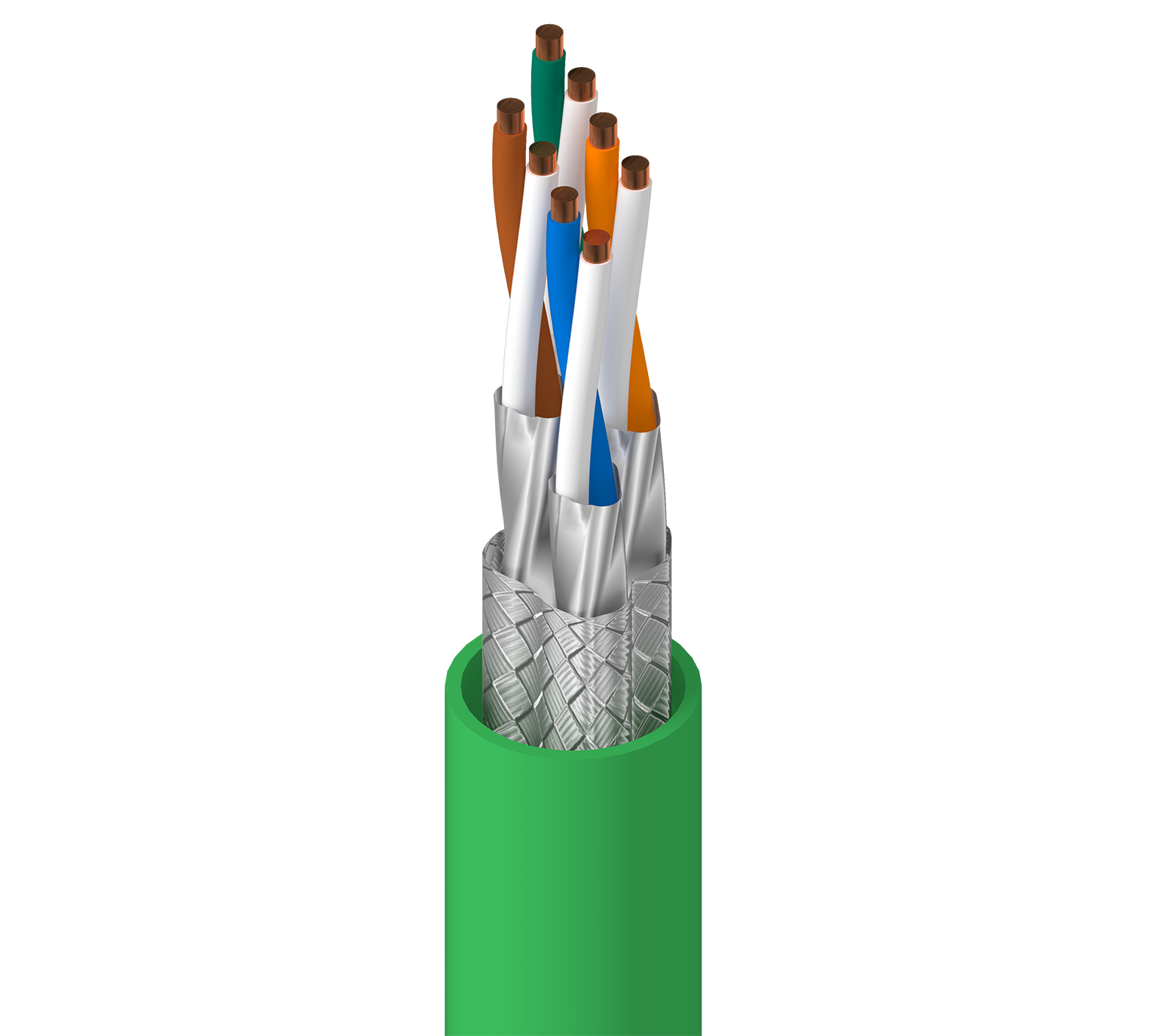

74010EPE
DataTuff® 6A, 4PR #22 Sol BC, PO ins, S/FTP, PO jkt, PROFINET Type A, Outdoor
22 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PE - Polyethylene
1 itemDAFP
Category 6A Cable, 4 Pair, F/UTP, CMP
23 AWG · BC - Bare Copper · FEP - Fluorinated Ethylene Propylene · PVC - Polyvinyl Chloride
1 item
DOSP6AF
Category 6A OSP Cable, 4 Pair, F/UTP, Gel Free
23 · BC - Bare Copper · PO - Polyolefin
1 item

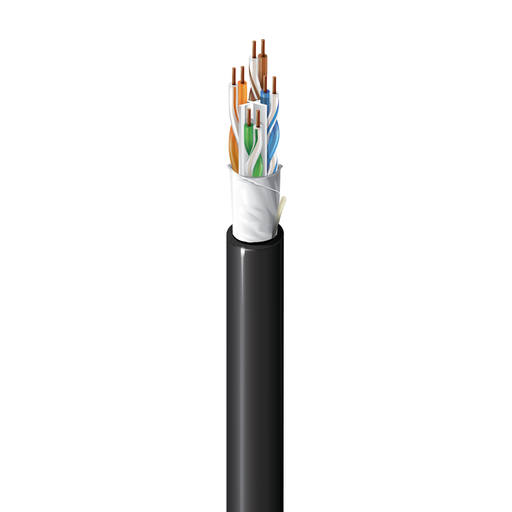

DOSP6AU
Category 6A OSP Cable, 4 Pair, U/UTP, Gel Free
23 · BC - Bare Copper · PO - Polyolefin
1 item
IEA001
DataTuff® 6A, 4 Bonded-Pr #23 Sol BC, PO Ins, PVC Jkt, CMR
23 · BC - Bare Copper · PO - Polyolefin · PVC - Polyvinyl Chloride
1 item
IEA002
DataTuff® 6A, 4 Bonded-Pr #23 Sol BC, PO Ins, OS, PVC Jkt, CMR/CMX Outdoor
23 AWG · BC - Bare Copper · PO - Polyolefin · PVC - Polyvinyl Chloride
1 item
IOP6AF
Category 6A Indoor/Outdoor Cable, 4 Pair, F/UTP, CMP/CMX, Gel Free
23 · BC - Bare Copper · FEP - Fluorinated Ethylene Propylene · PVDF - Polyvinylidene Fluoride
1 item
IOP6AU
Category 6A Indoor/Outdoor Cable, 4 Pair, U/UTP, CMP/CMX, Gel Free
23 · BC - Bare Copper · FEP - Fluorinated Ethylene Propylene · PVDF - Polyvinylidene Fluoride
1 item
OSP6AF
Category 6A OSP Cable, 4 Pair, F/UTP, Gel Filled
23 · BC - Bare Copper · PO - Polyolefin
1 item10GXE00P
10GX Category 6A Enhanced Cable, 4 Pair, F/UTP, Black PE Outdoor, UV
23 AWG · BC - Bare Copper · PE - Polyethylene
10GXE02P
10GX Category 6A Enhanced Cable, 4 Pair, S/FTP, Black PE Outdoor, UV
23 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PE - Polyethylene

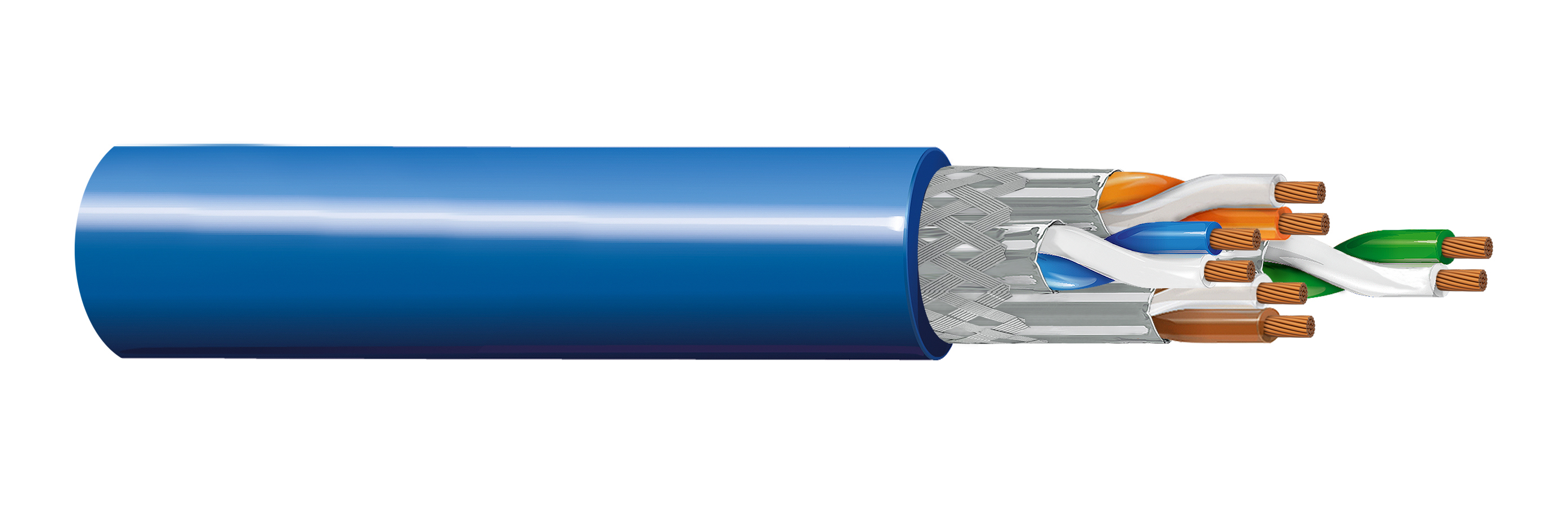

50106AHF
DataTuff® Cat 6A, S/FTP, 4P24AWG/7, Stranded Bare Cu, Foam PE Ins, TPE Jkt, High-Flex, Drag chain, Torsion-resistant
24 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · TPE - Thermoplastic Elastomer
50106AHSFP
BELDEN Industrial High Flexible Ethernet CAT6A cable, SF/UTP, PUR Jacket, Indoor
26 AWG · BC - Bare Copper · PO - Polyolefin · PUR - Polyurethane (Halogen Free)
50106ASFLB
DataTuff® Cat 6A, 4P23AWG, S/FTP, Solid Bare Cu, FMPE Ins, SWB, LSZH Jkt, UV resistant
23 AWG · BC - Bare Copper · PO - Polyolefin (Foam) · LSZH - Low Smoke Zero Halogen (SHF1)
70094F
IE 6A, 4PR #26 Str BC, PO ins, S/FTP, PUR HF jkt, UL AWM 20549
26 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PUR - Polyurethane (Halogen Free)

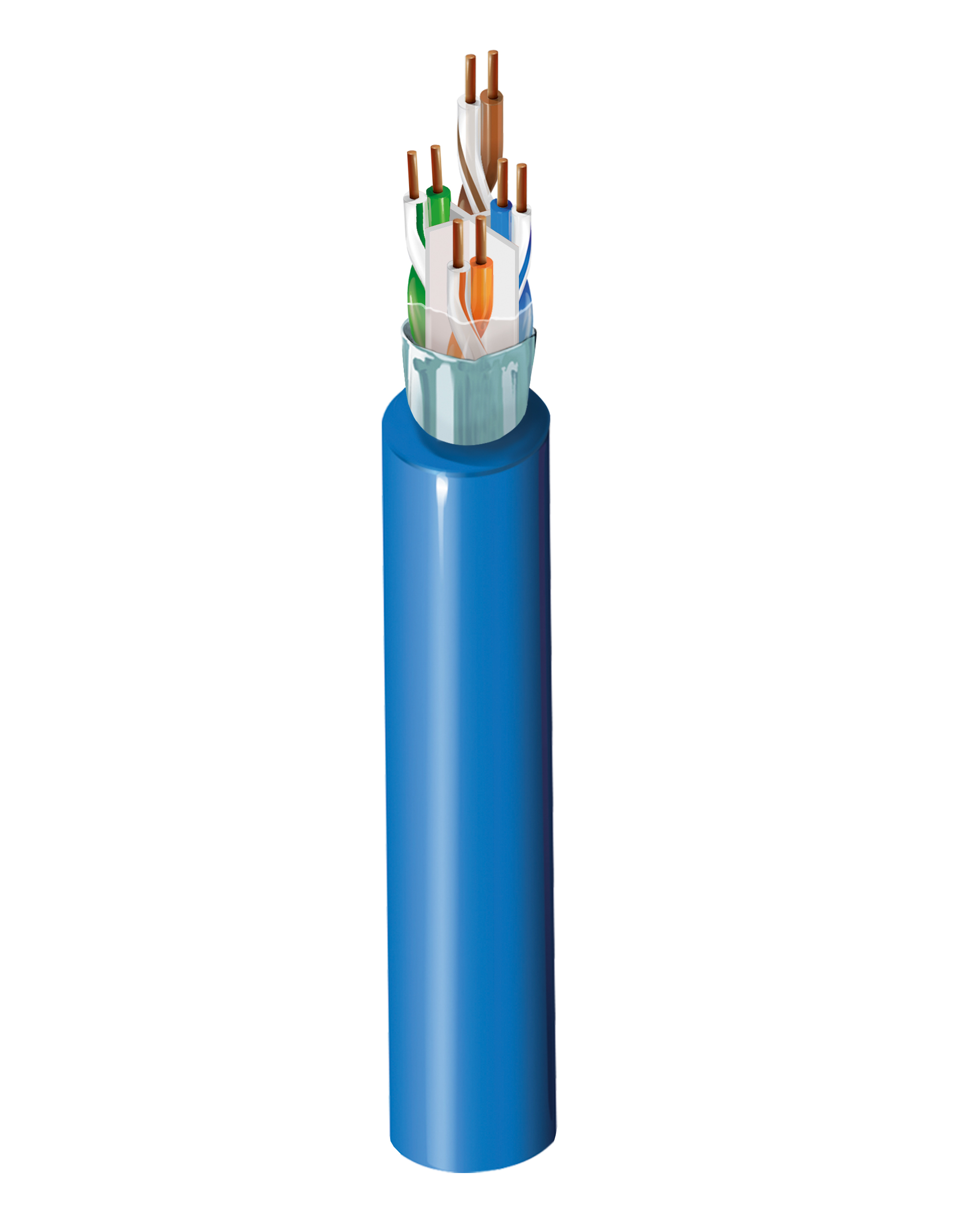

ECO-SMART6A
Category 6A Unbonded – LSZH Jacket
26 AWG · BC - Bare Copper · PO - Polyolefin · LSZH - Low Smoke Zero Halogen (Flame Retardant)
IEA004
DataTuff® 6A, High Flex, 4 Pr #24 Str TC, PO Ins, OS+TC Brd, TPE Jkt, CMR, CMX
24 AWG · TC - Tinned Copper · PO - Polyolefin · TPE - Thermoplastic Elastomer

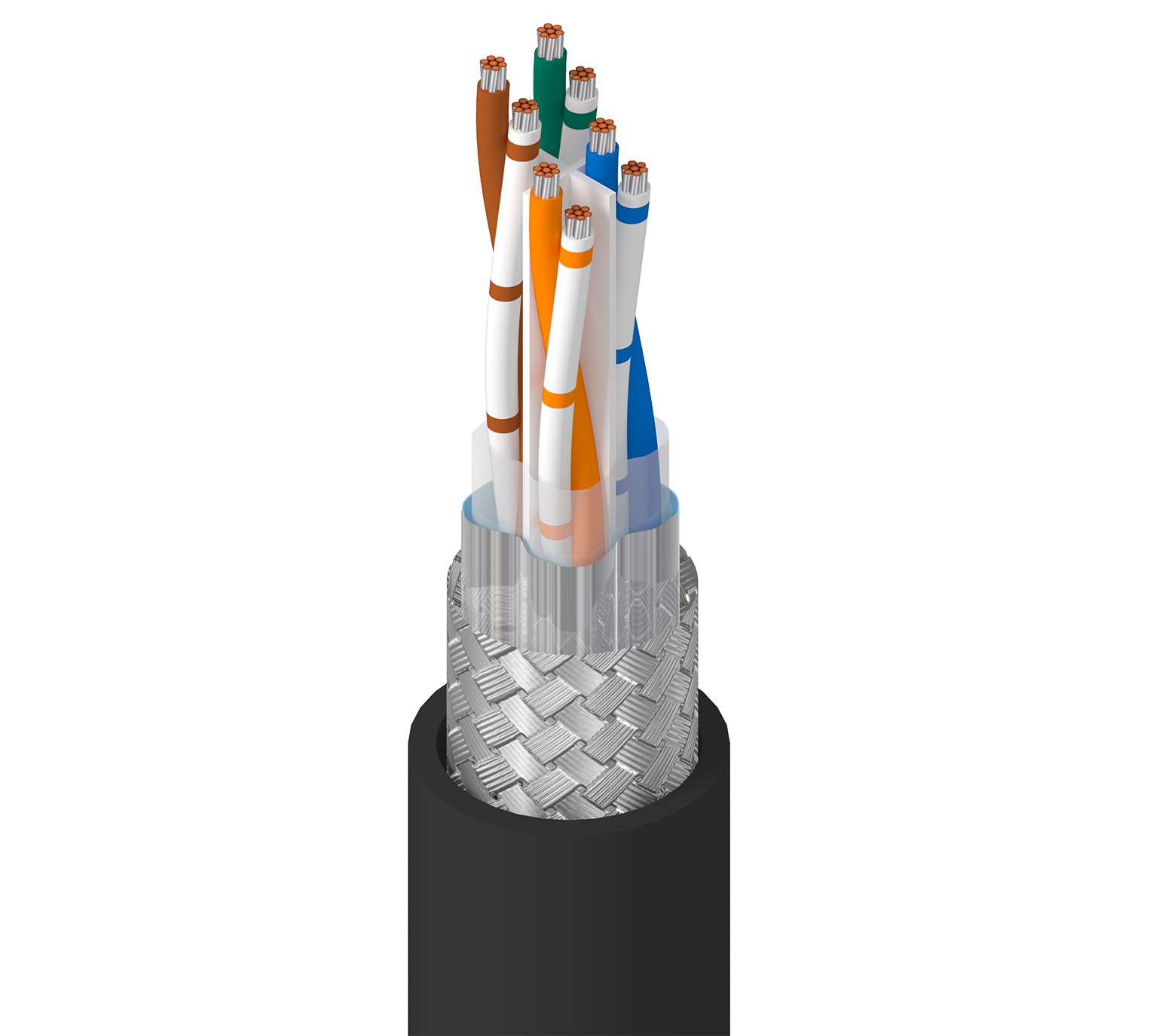

IEA005
DataTuff® 6A, High Flex, 4 Pr #26 Str TC, PO Ins, OS+TC Brd, TPE Jkt, CMR, CMX
26 AWG · TC - Tinned Copper · PO - Polyolefin · TPE - Thermoplastic Elastomer

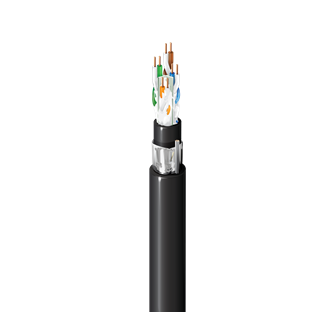

IEA006
DataTuff® 6A, 4 Bonded-Pr #22 Sol BC, PO Ins, X-spline, PVC Jkt, OS, PVC Jkt, PLTC, CMR, CMX Outdoor
22 AWG · BC - Bare Copper · PO - Polyolefin · PVC - Polyvinyl Chloride

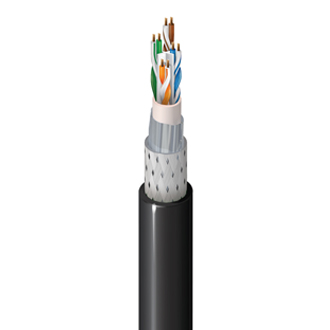

IEA007
DataTuff® 6A, 4 Bonded-Pr #22 Sol BC, PO Ins, X-spline, PVC Jkt, OS+TC Brd, PVC Jkt, PLTC, CMR, CMX Outdoor
BC - Bare Copper · PVC - Polyvinyl Chloride · 300 V (CMR), 600 V (AWM) · 75°C
IEA009
DataTuff Ind. Cat. 6A OSP Cable, 4 Pair, F/UTP, Gel Filled, 23AWG. Oil Res II
23 · BC - Bare Copper · PO - Polyolefin · CPE - Chlorinated Polyethylene
NH50106ASFA
DataTuffTM Industrial Ethernet CAT6A 4x2x23AWG/1 S/FTP SWA Fire Resistant Anti-termite & Water proof
23 AWG · BC - Bare Copper · PE - Polyethylene · LSZH - Low Smoke Zero Halogen (Flame Retardant)

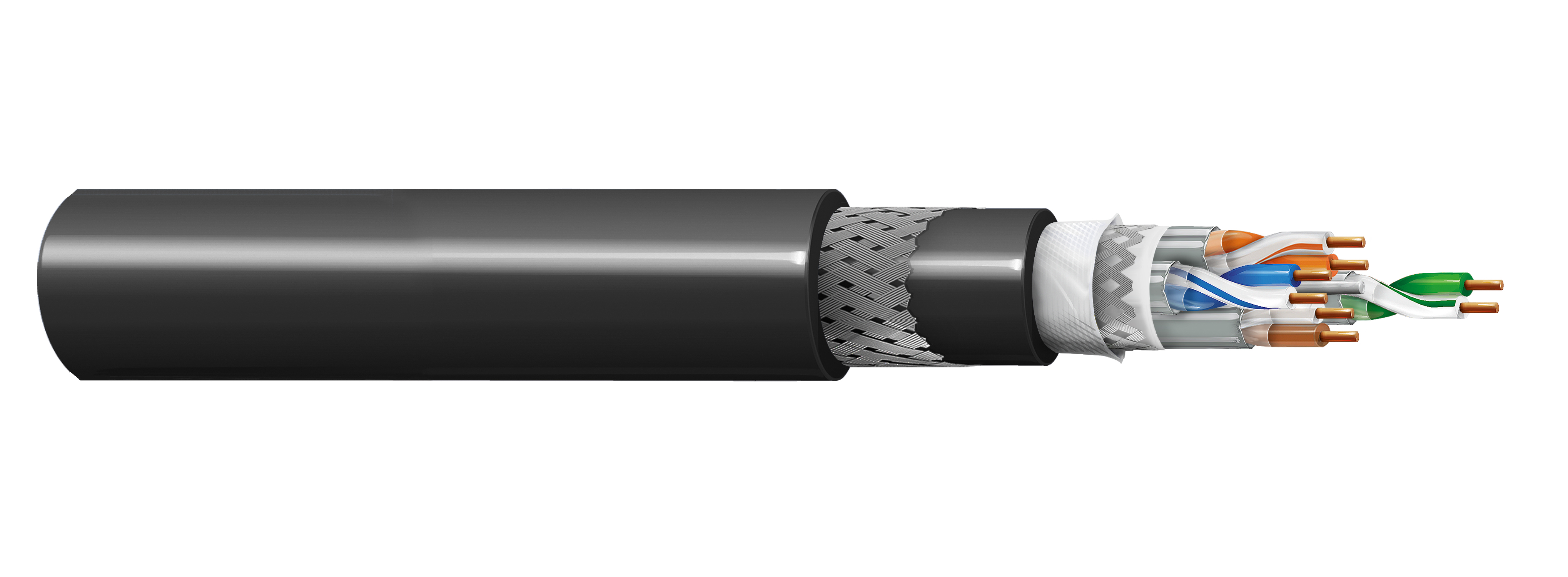

NH50106ASFB
DataTuffTM Industrial Ethernet CAT6A 4x2x23AWG/1 S/FTP SWB Fire Resistant Anti-termite & Water proof
23 AWG · BC - Bare Copper · PE - Polyethylene · LSZH - Low Smoke Zero Halogen (Flame Retardant)
NH50106AUFB
DataTuffTM Industrial Ethernet CAT6A 4x2x23AWG/1 U/FTP SWB Fire Resistant
23 AWG · BC - Bare Copper · PE - Polyethylene · LSZH - Low Smoke Zero Halogen (Flame Retardant)

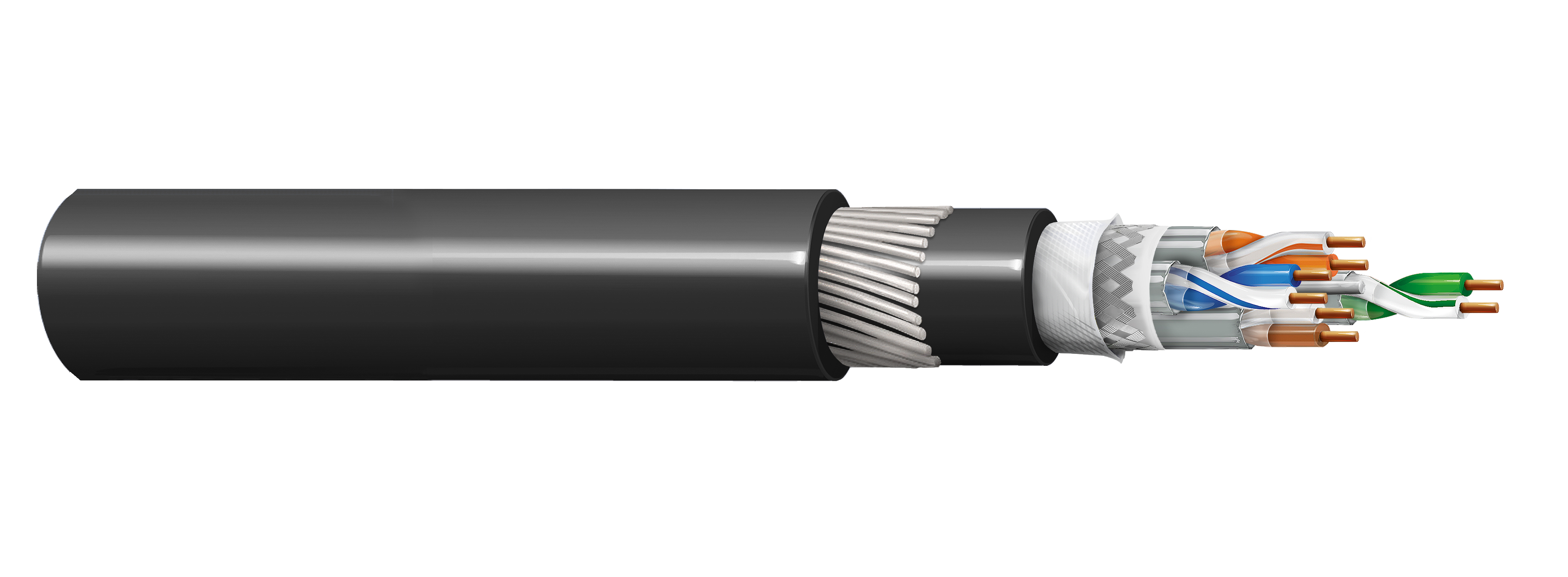

NH50116ASFAC
DataTuffTM Industrial Ethernet CAT6A 4x2x23AWG/1 S/FTP SWA Fire Resistant Anti-termite & Water proof
23 AWG · BC - Bare Copper · PE - Polyethylene · LSZH - Low Smoke Zero Halogen (Flame Retardant)
