Product Number: OSP6AF

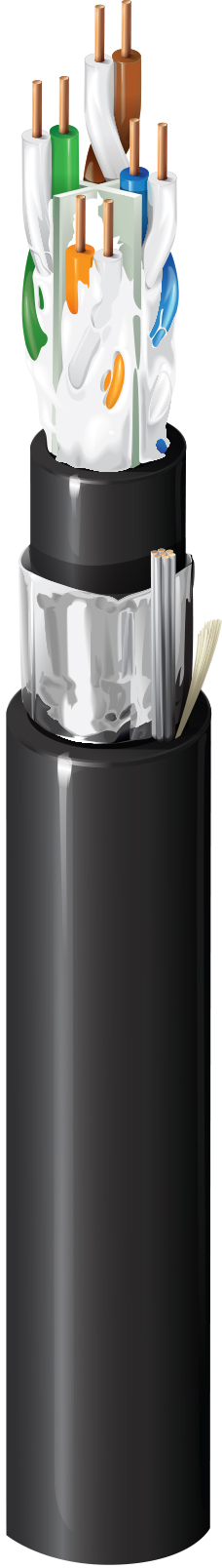

Category 6A OSP Cable, 4 Pair, F/UTP, Gel Filled

Category 6A Cable (500MHz), OSP Rated, 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP, Inner Polyolefin Jacket, Gel-Filled, Outer Polyolefin Jacket

Availability: Americas
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

OSP6AF is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
OSP6AF 0101000	Black	Reel	1,000 ft	612825378839	Order online

Specifications

Product Overview

Suitable Applications	OSP-Outside Plant, Premise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, PoE++, PoE+, PoE, HDBaseT
Patent	This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents .

Construction Details

Waterblocking	Gel Filled
Overall Cable Diameter (Nominal)	0.360 in (9.14 mm)

Conductor

Size	23
Stranding	Solid
Material	BC - Bare Copper
No. of Pairs	4

Insulation

Material	PO - Polyolefin
Color Code	White & Blue, White & Orange, White & Green, White & Brown

Inner Jacket

Material	PE - Polyethylene
Nom. Diameter	0.26 in (6.6 mm)

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	26 AWG (7x34) TC

Outer Jacket

Separator	Center Member (Patented X-Spline®), EquiBlockTM Barrier Technology
Material	PO - Polyolefin
Nom. Diameter	0.360 in (9.14 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Max. Conductor DCR	82 Ohm/km (25 Ohm/1000ft)
Max. Capacitance Unbalance	45 pF/100m

Delay

Frequency	100 MHz
Max. Delay Skew	45 ns/100m
Nom. Velocity of Prop.	65%

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation) [dB/100m]	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACR [dB]	Min. PSACR [dB]	Min. ACRF (ELFEXT) [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]	Max./Min. Input Impedance (unFitted)	Max./Min. Fitted Impedance	Min. PSANEXT [dB]	Min. PSAACRF [dB]	Min. TCL [dB]	Min. ELTCTL [dB]
1	2.1	74.3	72.3	72.2	70.2	67.8	64.8	20.0	105 +/- 10	115 +/- 15	67.0	67.0	40.0	35.0
4	3.8	65.3	63.3	61.5	59.5	55.8	52.8	23.0	105 +/- 10	100 +/- 7	67.0	66.2	40.0	23.0
8	5.3	60.8	58.8	55.4	53.4	49.7	46.7	24.5	100 +/- 22	100 +/- 7	67.0	60.1	40.0	16.9
10	5.9	59.3	57.3	53.4	51.4	47.8	44.8	25.0	100 +/- 22	100 +/- 7	67.0	58.2	40.0	15.0
16	7.5	56.2	54.2	48.8	46.8	43.7	40.7	25.0	100 +/- 22	100 +/- 7	67.0	54.1	38.0	10.9
20	8.4	54.8	52.8	46.4	44.4	41.8	38.8	25.0	100 +/- 22	100 +/- 7	67.0	52.2	37.0	9.0
25	9.4	53.3	51.3	44.0	42.0	39.8	36.8	24.3	100 +/- 22	100 +/- 7	67.0	50.2	36.0	7.0
31.25	10.5	51.9	49.9	41.4	39.4	37.9	34.9	23.6	100 +/- 22	100 +/- 7	67.0	48.3	35.1	5.1
62.5	15.0	47.4	45.4	32.4	30.4	31.9	28.9	21.5	100 +/- 22	100 +/- 7	65.6	42.3	32.0
100	19.1	44.3	42.3	25.2	23.2	27.8	24.8	20.1	100 +/- 22	100 +/- 7	62.5	38.2	30.0
200	27.6	39.8	37.8	12.2	10.2	21.8	18.8	18.0	100 +/- 22	100 +/- 7	58.0	32.2	27.0
250	31.1	38.3	36.3	7.3	5.3	19.8	16.8	17.3	100 +/- 32	100 +/- 7	56.5	30.2	26.0
300	34.3	37.1	35.1	2.9	0.9	18.3	15.3	16.8	100 +/- 32	100 +/- 7	55.3	28.7	25.2
350	37.2	36.1	34.1			16.9	13.9	16.3	100 +/- 32	100 +/- 7	54.3	27.3	24.6
400	40.1	35.3	33.3			15.8	12.8	15.9	100 +/- 32	100 +/- 7	53.5	26.2	24.0
450	42.7	34.5	32.5			14.7	11.7	15.5	100 +/- 32	100 +/- 7	52.7	25.1	23.5
500	45.3	33.8	31.8			13.8	10.8	15.2	100 +/- 32	100 +/- 7	52.0	24.2	23.0

Voltage

Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	25 lbs (11 kg)
Bulk Cable Weight	49 lbs/1000ft (73 kg/km)

Temperature

Operating	-40°C To +75°C
Installation	-40°C To +60°C
Storage	-40°C To +75°C

Bend Radius

Stationary Min.	3.0 in (76 mm)
Installation Min.	3.75 in (95.3 mm)

Standards and Compliance

Environmental Suitability	Outdoor, Outdoor, Sunlight Resistance, Aerial - When supported by messenger wire
CPR Compliance	CPR Euroclass: Fca; CPR UKCA Class: Fca
IEEE Compliance	IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
Data Category	Category 6A
TIA/EIA Compliance	ANSI/TIA-568.2-D Category 6A
ISO/IEC Compliance	ISO/IEC 11801-1, IEC 61156-5
CENELEC Compliance	Segregation class according EN50174-2 = a
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2017-07-10
APAC Compliance	China RoHS II (GB/T 26572-2011)

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Cable not guaranteed to meet TIA 568.2 specification for delay above lengths of 90m. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. Fully Water Blocked. Suitable for burial or use in outdoor wet locations. Not recommended for Direct Burial applications without additional crush and impact protection. Additional crush and impact protection would include cable armoring, installation in conduit or installation with over top barriers per Belden Technical Bulletin T/8-6. Belden recommends using an entrance demarcation point when transitioning inside buildings with gel-filled OSP cables due to the cable design containing gel specific for wet outdoor environments. The suggested transition point is the REVConnect core coupler, part number RVACPKUBK-S1.
