Product Number: 10GA22

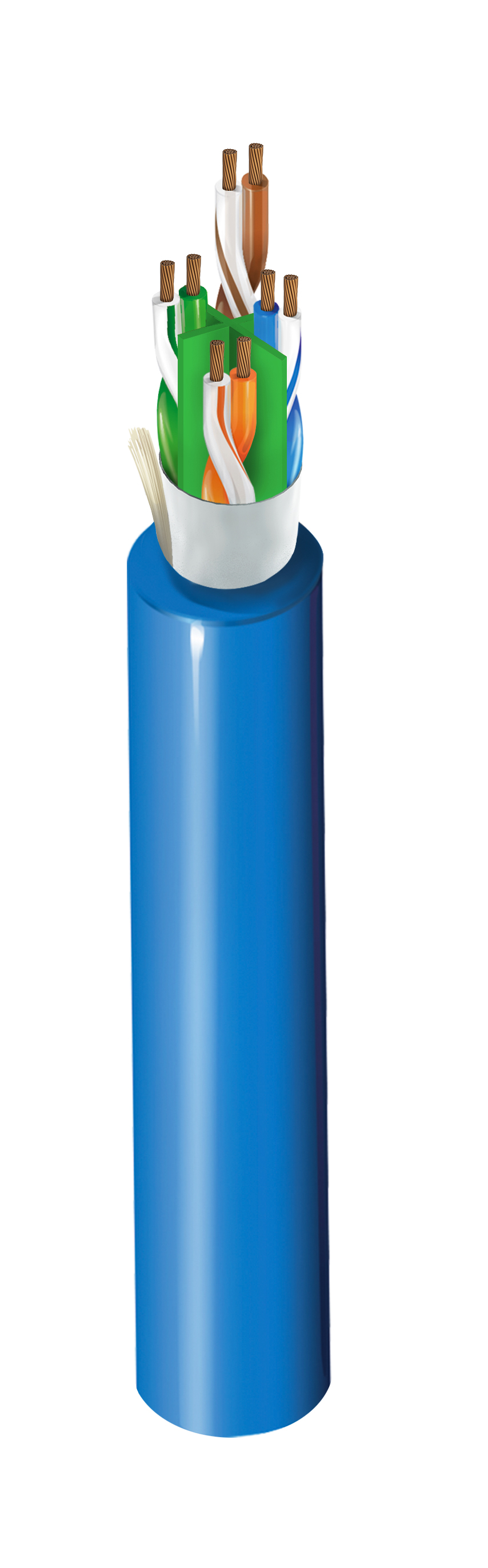

CAT 6A 4P 23AWG, U/UTP, LSZH Jkt, Indoor

Name: Belden 10GA22
Brand: Belden
SKU: 10GA22

CAT 6A 4PR x 23AWG U/UTP, Solid Bare Copper Conductors, PE Insulation, LSZH Jacket, Indoor, IEC 60332-3-22

Ships from and sold by A5 IT.

Part numbers

10GA22 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Suitable Applications	Horizontal and building backbone cable; Support current and future Category 6a and 6 applications, such as: 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM as well as PoE application etc.
Patent	This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents .

Outer Jacket1 Table Notes	A Separator tape "EquiBlockTM Barrier Technology" wrapped below outer jacket

Material	PE - Polyethylene
Nom. Insulation Diameter	1.14 mm (0.0449 in)
Color Code	White / Blue, Orange & White with Orange Stripe, Green & White with Green Stripe, White / Brown & Brown

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter	7.3 mm (0.29 in)
Ripcord	Yes

High Frequency Table Notes	Limits below 1MHZ, and at 600MHz & 650MHz are for information only

Max. Conductor DCR	80.0 Ohm/km (24.4 Ohm/1000ft)
Max. Mutual Capacitance	56 pF/m (17 pF/ft)
Max. Capacitance Unbalance	160 pF/100m
Nom. Characteristic Impedance	100 Ohm

Frequency [MHz]	Max. Insertion Loss (Attenuation) [dB/100m]	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACR [dB]	Min. PSACR [dB]	Min. ACRF (ELFEXT) [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]	Min. PSANEXT [dB]	Min. PSAACRF [dB]	Min. TCL [dB]	Min. ELTCTL [dB]
1	2.1	75.3	72.3	73.2	71.2	68.0	65.0	20.0	67.0	67.0	40.0	35.0
4	3.8	66.3	63.3	62.5	59.5	56.0	53.0	23.0	67.0	66.2	40.0	23.0
8	5.3	61.8	57.3	56.5	55.5	49.7	46.7	24.5	67.0	58.2	40.0	16.9
16	7.5	57.2	54.2	49.6	46.6	43.9	40.9	25.0	67.0	54.1	38.0	10.9
31.25	10.5	52.9	49.9	42.4	39.4	38.1	35.1	23.6	67.0	48.3	35.1
62.5	15.0	48.4	45.4	33.4	30.4	31.9	28.9	21.5	65.6	42.3	32.0
100	19.1	45.3	42.3	26.2	23.2	28.0	25.0	20.1	62.5	38.2	30.0
125	21.5	43.8	40.8	22.3	19.3	26.1	23.1	19.4	61.0	36.3	29.0
200	27.6	40.8	37.8	13.2	10.2	22.0	19.0	18.0	58.0	32.2	27.0
250	31.1	39.3	36.3	8.2	5.2	19.8	16.8	17.3	56.5	30.2	26.0
300	34.3	38.1	35.1	3.8	0.8	18.5	15.5	17.3	55.3	28.7	25.2
500	45.3	34.8	31.8			14.0	11.0	17.3	52.0	24.2	23.0
600	50.1	33.6	30.6			12.4	9.4	17.3	50.8	22.6
650	52.3	33.1	30.1			11.7	8.7	17.3	50.3	21.9

Max. Pull Tension	110 N (25 lbf)
Bulk Cable Weight	52 kg/km (35 lbs/1000ft)

Operating	-20°C To +60°C
Installation	0°C To +50°C

Installation Min.	50 mm (2.0 in)

Environmental Suitability	Indoor, Indoor, Non-Halogenated
Flammability / Reaction to Fire	IEC 60332-3-22
IEEE Compliance	PoE: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
Data Category	Category 6A
TIA/EIA Compliance	ANSI/TIA 568.2-D
ISO/IEC Compliance	ISO/IEC 11801-1, IEC 61156-5
European Halogen Free Standards	IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%
European Directive Compliance	EU Directive 2011/65/EU (RoHS 2)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Notes	Electrical values are expected performance based on cable testing and representative performance within a typical Belden system.

Update and Revision	Revision Number: 0.97 Revision Date: 02-26-2026
Footnote	*Ordering stock code will be created at the time of placing the order and the stock code will include cable part code, outer jacket color & putup length.
