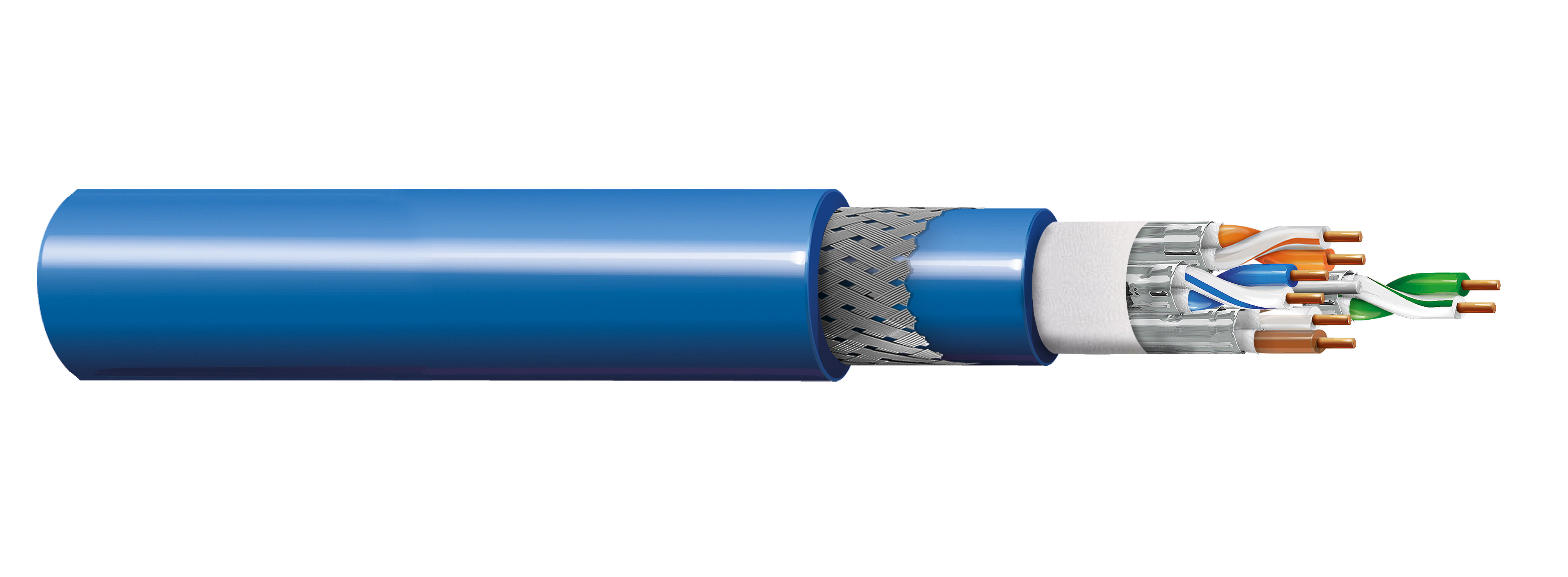

DataTuffTM Industrial Ethernet CAT6A 4x2x23AWG/1 U/FTP SWB Fire Resistant
DataTuffTM Industrial Ethernet CAT6A 4x2x23AWG/1 U/FTP SWB Fire Resistant
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Industrial Ethernet Cat 6A connection with Fire Resistant capability |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 14.9 +/- 0.50 mm |
|---|
Conductor
| Size | 23 AWG |
|---|---|
| Stranding | Solid |
| Material | BC - Bare Copper |
| No. of Pairs | 4 |
Insulation
| Material | PE - Polyethylene |
|---|---|
| Nom. Insulation Diameter | 1.17 mm (0.0461 in) |
| Color Code | Blue & White with Blue Strips, Orange & White with Orange Strips, Green & White with Green Strips, Brown & White with Brown Strips |
| Notes | Fire Protection Barrier: Mica glass Tape(MGT) |
Inner Shield
| Element | Individual Pair |
|---|---|
| Shield Type | Tape |
| Material | Bi-Laminate (Alum+Poly) |
| Drainwire Type | 26 AWG (Solid) TC |
| Notes | All 4 individually shielded Pairs laid up together & made circular |
Inner Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Diameter | 11.75 mm (0.4626 in) |
Armor
| Armor Type & Material | SWB - Steel Wire Braid Armor |
|---|
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|
Electrical Characteristics
Electricals
| Max. Conductor DCR | 73.2 Ohm/km @ 20 Deg. C |
|---|---|
| Nom. Characteristic Impedance | 100 Ohm |
Delay
| Max. Delay Skew | 45 ns/70m |
|---|
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] |
|---|---|---|---|---|---|---|
| 4 | 3.8 dB/70m | 66.3 | 63.3 | 56.0 | 53.0 | 23.0 |
| 10 | 5.9dB/70m | 60.3 | 57.3 | 48.0 | 45.0 | 25.0 |
| 20 | 8.4 dB/70m | 55.8 | 52.8 | 42.0 | 39.0 | 25.0 |
| 25 | 9.4 dB/70m | 54.3 | 51.3 | 40.0 | 37.0 | 24.3 |
| 31.25 | 10.5 dB/70m | 52.9 | 49.9 | 38.1 | 35.1 | 23.6 |
| 62.5 | 15.0 dB/70m | 48.4 | 45.4 | 32.1 | 29.1 | 21.5 |
| 100 | 19.1 dB/70m | 45.3 | 42.3 | 28.0 | 25.0 | 20.1 |
| 250 | 31.1 dB/70m | 39.3 | 36.3 | 20.0 | 17.0 | 17.3 |
| 300 | 34.3 dB/70m | 38.1 | 35.1 | 18.5 | 15.5 | 17.3 |
| 500 | 45.3dB/70m | 34.8 | 31.8 | 14.0 | 11.0 | 17.3 |
Voltage
| Voltage Rating | 60 V |
|---|
Mechanical Characteristics
Temperature
| Operating | -40°C to + 80°C |
|---|
Standards and Compliance
| Environmental Suitability | UV Resistance, Oil Resistance |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2, IEC 60332-3-22, IEC 60331-23, EN 50200 PH120 |
| Data Category | Category 6A |
| TIA/EIA Compliance | ANSI/TIA 568.2-D |
| ISO/IEC Compliance | IEC 61156-5 |
| European Halogen Free Standards | IEC 60754-1 - Halogen Amount = 0.5 %, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| European Directive Compliance | EU Directive 2011/65/EU (RoHS 2) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | BS6387 CWZ |
History
| Update and Revision | Revision Number: 0.33 Revision Date: 02-26-2026 |
|---|
