Product Number: 70094F

IE 6A, 4PR #26 Str BC, PO ins, S/FTP, PUR HF jkt, UL AWM 20549

Name: Belden 70094F
Brand: Belden
SKU: 70094F

IE 5E, 4 pair AWG 26 Bare Copper - Stranded, Polyethylene insulation,S/FTP - Overall Braid / Individual Foil shielding, PUR jacket , UL AWM 20549

Ships from and sold by A5 IT.

Specifications

Suitable Applications	harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Life Cycle	Discontinued - the product is no longer manufactured

Inner Shield Table Notes	Aluminum outside
Outer Jacket1 Table Notes	Flame Retardant Sheath
Overall Cable Diameter (Nominal)	6.4 mm (0.25 in)

Material	PE - Polyethylene (Foam)
Nom. Insulation Diameter	1.05 mm (0.0413 in)
Color Code	White/Blue & Blue, White/Orange & Orange, White/Green & Green, White/Brown & Brown

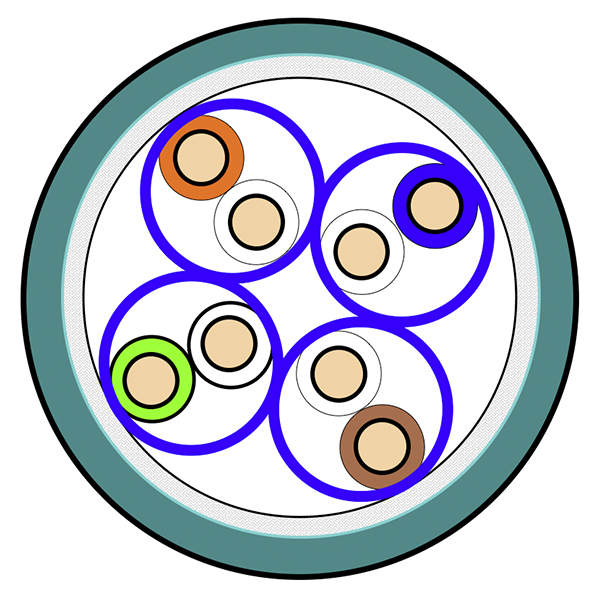

Description	4 pairs twisted to cable core

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)

Material	PUR - Polyurethane (Halogen Free)
Nom. Diameter	6.4 mm (0.25 in)

Max. Conductor DCR	Max. Mutual Capacitance	Max. Capacitance Unbalance	Nom. Characteristic Impedance
145 Ohm/km (44.2 Ohm/1000ft)	56 pF/m (17 pF/ft)	160 pF/100m	100 Ohm
			100 Ohm
			100 Ohm

Max. Delay Skew	40 ns/100m
Nom. Velocity of Prop.	70%

Frequency [MHz]	Max. Insertion Loss (Attenuation)	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACR [dB]	Min. PSACR [dB]	Min. ACRF (ELFEXT) [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]	Min. TCL [dB]	Min. ELTCTL [dB]
1	3.2 dB/100m	65.3	62.3	62.1	59.1	64	61	23	40	35
4	6 dB/100m	56.3	53.3	50.3	47.3	52	49	23	34	23
10	9.5 dB/100m	50.3	47.3	40.8	37.8	44	41	25	30	15
16	12.1 dB/100m	47.2	44.2	35.2	32.2	39.9	36.9	25	28	10.9
20	13.5 dB/100m	45.8	42.8	32.2	29.2	38	35	25	27	9
31.25	17.1 dB/100m	42.9	39.9	25.8	22.8	34.1	31.5	23.3	25.1	5.5
62.5	24.8 dB/100m	38.4	35.4	13.6	10.6	28.1	25.1	20.7	22
100	32 dB/100m	35.3	32.3	3.3	0.3	24	21	19	20

UL Voltage Rating	UL AWM 2464: 300 A.C.
Voltage Rating	450 V DC

Max. Pull Tension	80 N (18 lbf)

Operating	-20°C to +80°C
Installation	0°C To +50°C

Stationary Min.	30 mm (1.2 in)
Installation Min.	60 mm

Environmental Suitability	Indoor, Sunlight Resistance - UL 1581 sec 1200
AWM Compliance	AWM 20549
Data Category	Category 6A
TIA/EIA Compliance	ANSI/TIA 568.2-D
ISO/IEC Compliance	ISO/IEC 11801-1
CENELEC Compliance	EN 50173-1, Segregation class according EN50174-2 = d
European Halogen Free Standards	IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3
European Directive Compliance	EU CE Mark
