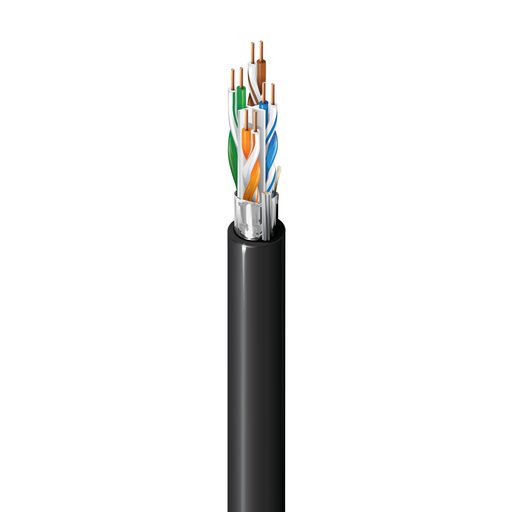

Product Number: IOP6AF

Category 6A Indoor/Outdoor Cable, 4 Pair, F/UTP, CMP/CMX, Gel Free

Category 6A Premise Horizontal Cable, Indoor/Outdoor, 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Plenum-CMP/CMX Outdoor, Gel Free

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

IOP6AF is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	Order
IOP6AF 0101000	Black	Reel	1,000 ft	Order online

Specifications

Product Overview

Suitable Applications	Indoor/Outdoor, Premise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, PoE++, PoE+, PoE, Noisy Enivronments, HDBaseT, IP Cameras, Wet Locations following Product Notes
Patent	This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents .

Construction Details

Overall Cable Diameter (Nominal)	0.27 in (6.9 mm)

Conductor

Size	23
Stranding	Solid
Material	BC - Bare Copper
No. of Pairs	4

Insulation

Material	FEP - Fluorinated Ethylene Propylene
Color Code	White & Blue, White & Orange, White & Green, White & Brown

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	26 AWG (7x34) TC

Outer Jacket

Separator	Center Member (Patented X-Spline®)
Material	PVDF - Polyvinylidene Fluoride
Nom. Diameter	0.27 in (6.9 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Max. Conductor DCR	82 Ohm/km (25 Ohm/1000ft)
Max. Capacitance Unbalance	45 pF/100m

Delay

Frequency	100 MHz
Max. Delay	537.6 ns/100m
Max. Delay Skew	45 ns/100m
Nom. Velocity of Prop.	70%

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation) [dB/100m]	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACR [dB]	Min. PSACR [dB]	Min. ACRF (ELFEXT) [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]	Max./Min. Input Impedance (unFitted)	Max./Min. Fitted Impedance	Min. PSANEXT [dB]	Min. PSAACRF [dB]	Min. TCL [dB]	Min. ELTCTL [dB]
1	2.1	74.3	72.3	72.2	70.2	67.8	64.8	20.0	105 +/- 10	115 +/- 15	67.0	67.0	40.0	35.0
4	3.8	65.3	63.3	61.5	59.5	55.8	52.8	23.0	105 +/- 10	100 +/- 7	67.0	66.2	40.0	23.0
8	5.3	60.8	58.8	55.4	53.4	49.7	46.7	24.5	100 +/- 22	100 +/- 7	67.0	60.1	40.0	16.9
10	5.9	59.3	57.3	53.4	51.4	47.8	44.8	25.0	100 +/- 22	100 +/- 7	67.0	58.2	40.0	15.0
16	7.5	56.2	54.2	48.8	46.8	43.7	40.7	25.0	100 +/- 22	100 +/- 7	67.0	54.1	38.0	10.9
20	8.4	54.8	52.8	46.4	44.4	41.8	38.8	25.0	100 +/- 22	100 +/- 7	67.0	52.2	37.0	9.0
25	9.4	53.3	51.3	44.0	42.0	39.8	36.8	24.3	100 +/- 22	100 +/- 7	67.0	50.2	36.0	7.0
31.25	10.5	51.9	49.9	41.4	39.4	37.9	34.9	23.6	100 +/- 22	100 +/- 7	67.0	48.3	35.1	5.1
62.5	15.0	47.4	45.4	32.4	30.4	31.9	28.9	21.5	100 +/- 22	100 +/- 7	65.6	42.3	32.0
100	19.1	44.3	42.3	25.2	23.2	27.8	24.8	20.1	100 +/- 22	100 +/- 7	62.5	38.2	30.0
200	27.6	39.8	37.8	12.2	10.2	21.8	18.8	18.0	100 +/- 22	100 +/- 7	58.0	32.2	27.0
250	31.1	38.3	36.3	7.3	5.3	19.8	16.8	17.3	100 +/- 32	100 +/- 7	56.5	30.2	26.0
300	34.3	37.1	35.1	2.9	0.9	18.3	15.3	16.8	100 +/- 32	100 +/- 7	55.3	28.7	25.2
350	37.2	36.1	34.1			16.9	13.9	16.3	100 +/- 32	100 +/- 7	54.3	27.3	24.6
400	40.1	35.3	33.3			15.8	12.8	15.9	100 +/- 32	100 +/- 7	53.5	26.2	24.0
450	42.7	34.5	32.5			14.7	11.7	15.5	100 +/- 32	100 +/- 7	52.7	25.1	23.5
500	45.3	33.8	31.8			13.8	10.8	15.2	100 +/- 32	100 +/- 7	52.0	24.2	23.0

Voltage

UL Voltage Rating	300 V (CMP), 300 V (CL3P)

Mechanical Characteristics

Max. Pull Tension	25 lbs (11 kg)
Bulk Cable Weight	39 lbs/1000ft (58 kg/km)

Temperature

UL Temperature	150C
Operating	-40°C To +150°C
Installation	0°C To +60°C
Storage	-40°C To +75°C

Bend Radius

Installation Min.	2.7 in (69 mm)

Standards and Compliance

Environmental Suitability	Indoor/Outdoor, Water Exposure/Below-Grade Conduit, Indoor, Outdoor, Sunlight Resistance
Flammability / Reaction to Fire	NFPA 262, UL 910 (Plenum), FT6
NEC / UL Compliance	Article 800, CMP, CMX-Outdoor
CEC / C(UL) Compliance	CMP.
IEEE Compliance	IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
Data Category	Category 6A
TIA/EIA Compliance	ANSI/TIA-568.2-D Category 6A
ISO/IEC Compliance	11801 ed 2.2 (2011) Class EA
CENELEC Compliance	Segregation class according EN50174-2 = a
European Directive Compliance	REACH

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Operating temperatures subject to length de-rating. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. Suitable for burial or use in outdoor wet locations. Not recommended for Direct Burial applications without additional crush and impact protection. Additional crush and impact protection would include cable armoring, installation in conduit or installation with over top barriers per Belden Technical Bulletin T/8-6. Cable jacket system is specially designed to protect cable core. Cable contains no water-blocking tapes, gels, or powders. Install in accordance with all applicable electrical codes. Maintain jacket integrity throughout installation process. Do not allow water or fluids to penetrate jacket sheath or to enter ends of cable. Ensure ends of cable will be protected from water/fluids after installation.
