Product Number: 50106AHSFP

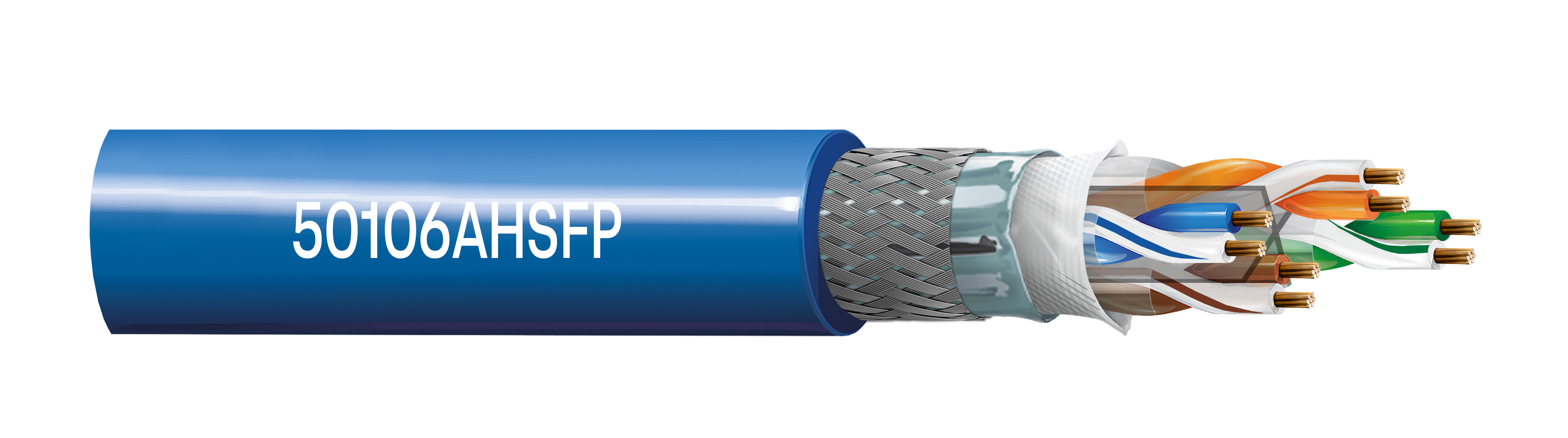

BELDEN Industrial High Flexible Ethernet CAT6A cable, SF/UTP, PUR Jacket, Indoor

BELDEN Industrial Ethernet CAT6A,SF/UTP, 4x2x26AWG, Stranded Bare Copper Conductors, PO Insulation, Al-Mylar+Braid Shield, PUR Jacket, Indoor

Availability: Global
Status: Active

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable Applications

Industrial Ethernet cables are used for interconnecting Industrial Ethernet Switches, IP controllers, media convertors, distributed control system, programmable logic controller and transmitting industrial protocol data signals. Support current and future Category6A applications, such as: 10Base-T, 100Base-TX, 1000Base-T and 10GBase-T.These are Cat 6A cables for indoor use meeting IEC61156-6, UL 758, EN50288-10-2, IEC11801

Construction Details

Overall Cable Diameter (Nominal)	7.3 mm (0.29 in)

Conductor

Element	Pair(s)
Size	26 AWG
Material	BC - Bare Copper
No. of Pairs	4

Insulation

Material	PO - Polyolefin
Nom. Insulation Diameter	1.0 mm (0.039 in)
Color Code	1.White/Blue,Blue, 2.White/Orange,Orange, 3.White/Green,Green, 4.White/Brown,Brown

Outer Shield

Shield Type	Material	Coverage
Tape	Bi-Laminate (Alum+Poly)
Braid	Tinned Copper (TC)	80%

Outer Jacket

Material	PUR - Polyurethane (Halogen Free)

Electrical Characteristics

Electricals

Max. Conductor DCR	145@20°C( Ohm/km)
Nom. Characteristic Impedance	100 Ohm

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Temperature

UL Temperature	-40°C To +80°C

Bend Radius

Flexing Min.	75 mm (3.0 in)

Standards and Compliance

Environmental Suitability	Indoor, Oil Resistance
Flammability / Reaction to Fire	IEC 60332-1 Flammability
AWM Compliance	AWM 20549, AWM I A/B
European Halogen Free Standards	IEC 60754-1 - Halogen Amount = Free

Product Notes

Notes	Max Transmission Length: Link Class-CatEa(CAT6A), Channel-74m; Drag chain test:10 million cycles; Speed:30 cycles/min; Chain length: 1m, Torsion test: 10 Million Cycles, speed: 20 cycles/min at length 1m. The flexibility testing is conducted at Belden laboratory ambient temperature.
