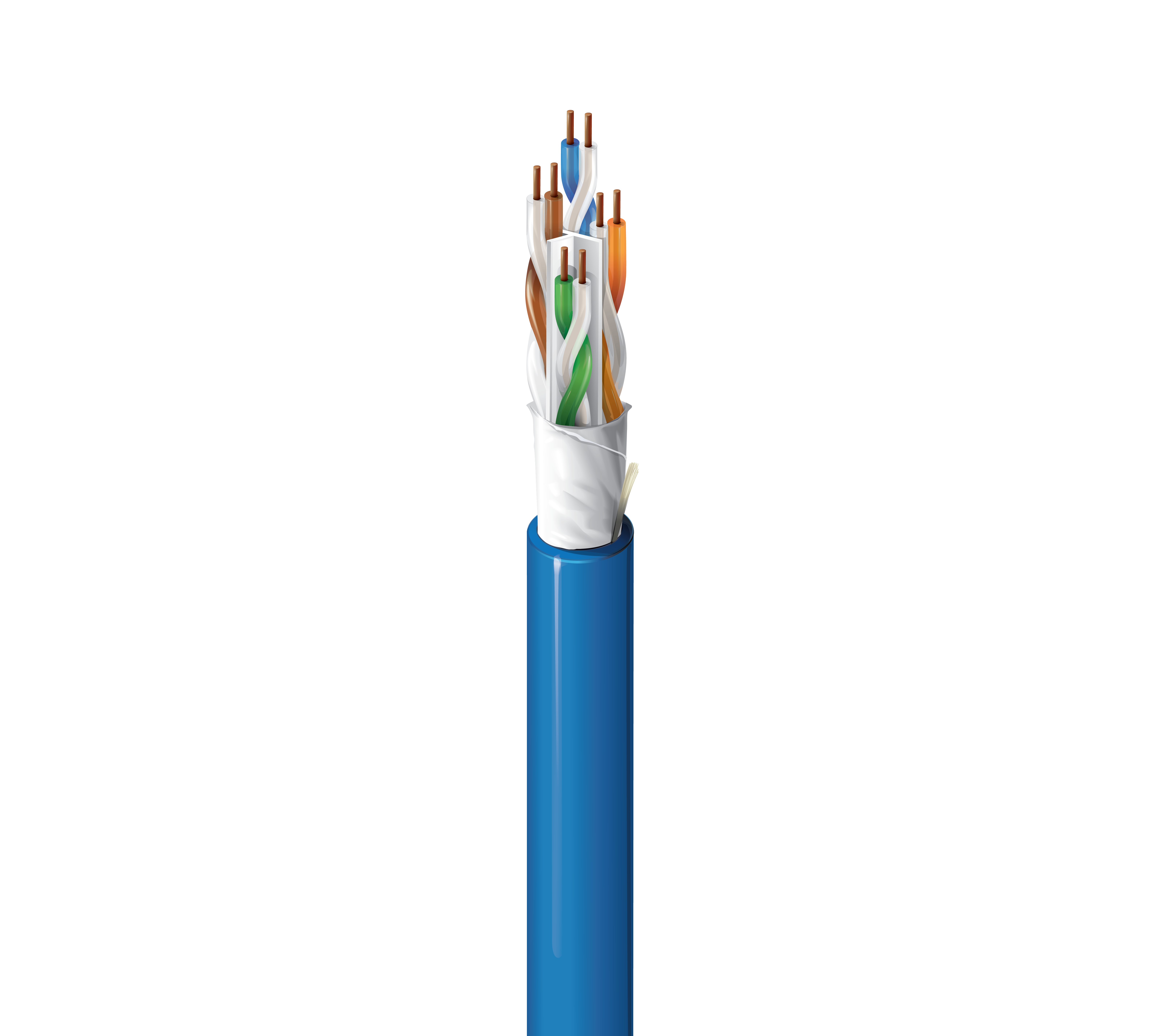

Category 6A Cable, 4 Pair, U/UTP, CMR
Category 6A Premise Horizontal Cable, 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Riser-CMR, PVC Jacket
- Availability
- Americas
- Status
- Active
- Orderable items
- 8
Part numbers
DAUR is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | Order |
|---|---|---|---|---|
| DAUR 0101000 | Black | Reel | 1,000 ft | Order online |
| DAUR 0061000 | Blue | Reel | 1,000 ft | Order online |
| DAUR 0081000 | Gray | Reel | 1,000 ft | Order online |
| DAUR 0051000 | Green, Dark | Reel | 1,000 ft | Order online |
| DAUR 0031000 | Orange | Reel | 1,000 ft | Order online |
| DAUR 0021000 | Red | Reel | 1,000 ft | Order online |
| DAUR 0091000 | White | Reel | 1,000 ft | Order online |
| DAUR 0041000 | Yellow | Reel | 1,000 ft | Order online |
Specifications
Product Overview
| Suitable Applications | Premise Horizontal Cable, Ethernet 10GBASE-T |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.260 in (6.60 mm) |
|---|
Conductor
| Size | 23 AWG |
|---|---|
| Stranding | Solid |
| Material | BC - Bare Copper |
| No. of Pairs | 4 |
Insulation
| Material | PO - Polyolefin |
|---|---|
| Color Code | White & Blue, White & Orange, White & Green, White & Brown |
Outer Jacket
| Separator | Center Member (Patented T-Spline®), EquiBlockTM Barrier Technology |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Diameter | 0.260 in (6.60 mm) |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 82 Ohm/km (25 Ohm/1000ft) |
|---|---|
| Max. Capacitance Unbalance | 45 pF/100m |
Delay
| Frequency | 100 MHz |
|---|---|
| Max. Delay | 537.6 ns/100m |
| Max. Delay Skew | 45 ns/100ft |
| Nom. Velocity of Prop. | 70% |
Voltage
| UL Voltage Rating | 300 V (CMR) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 25 lbs (11 kg) |
|---|---|
| Bulk Cable Weight | 31 lbs/1000ft (46 kg/km) |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C To +75°C |
| Storage | -20°C To +75°C |
Bend Radius
| Stationary Min. | 1 in (25 mm) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor - Riser, Indoor |
|---|---|
| Flammability / Reaction to Fire | UL 1666 Riser, FT4, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMR |
| ICEA Compliance | S-116-732 |
| IEEE Compliance | PoE: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| NEMA Compliance | ANSI/NEMA WC-66 |
| Data Category | Category 6A |
| TIA/EIA Compliance | ANSI/TIA-568.2-D Category 6A |
| Third Party Performance Verification | Channel/Category 6A |
| ISO/IEC Compliance | ISO/IEC 11801-1, IEC 61156-5 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Plenum Number | DAUP |
Product Notes
| Notes | Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. |
|---|
History
| Update and Revision | Revision Number: 0.65 Revision Date: 02-20-2026 |
|---|
