Product Number: 50106ASFLB

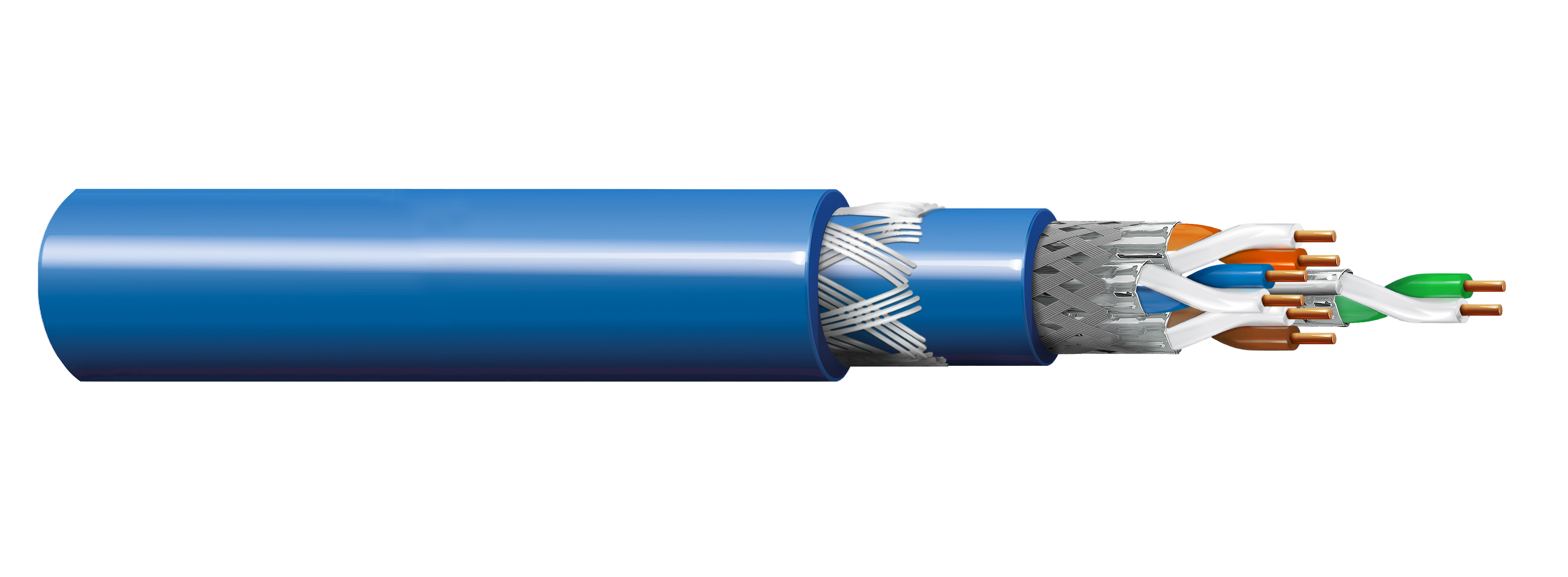

DataTuff® Cat 6A, 4P23AWG, S/FTP, Solid Bare Cu, FMPE Ins, SWB, LSZH Jkt, UV resistant

DataTuff® CAT 6A 4PR x 23AWG S/FTP, Solid Bare Copper Conductor, FMPE Insulation, AL-Mylar Individual Shield, Overall Tinned Copper Braid Shield, LSZH Inner Jacket, Steel Wire Braid Armoring, LSZH Outer Jacket, Indoor/Outdoor

Availability: Global
Status: Active

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable Applications

Industrial Ethernet cables are used for interconnecting Industrial Ethernet Switches, programmable logic controller and transmitting industrial protocol data signals. These cables are suitable for transmitting 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, 500MHz Category 6A. These are highly durable & ruggedized cables for both indoor and outdoor use meeting IEC 60332-3-22 and IEC 60754-1 & 2

Construction Details

Conductor

Element	Conductor(s)
Size	23 AWG
Stranding	Solid
Material	BC - Bare Copper
No. of Pairs	4

Insulation

Element	Conductor(s)
Material	PO - Polyolefin (Foam)
Nom. Insulation Diameter	1.4 mm (0.055 in)
Color Code	Blue & White, Orange & White, Green & White, Brown & White

Inner Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%

Inner Jacket

Material	LSZH - Low Smoke Zero Halogen (SHF1)
Nom. Diameter	8 mm (0.31 in)

Outer Shield

Shield Type	Braid
Material	Tinned Copper (TC)
Coverage	65%

Armor

Armor Type & Material	SWB - Steel Wire Braid Armor
Armor Material Diameter	0.2 mm (0.0079 in)

Outer Jacket

Material	LSZH - Low Smoke Zero Halogen (SHF1)
Nom. Diameter	10.6 mm (0.417 in)

Electrical Characteristics

Electricals Table Notes	Mutual capacitance : < 56 nF/km
High Frequency Table Notes	Limits below 4 MHz are for information only. Reference standard: ISO/IEC 61156-5 ed. 2.0 (2012)
Transfer Impedance Class	Grade 2

Electricals

Max. Conductor DCR	95 Ohm/km (29 Ohm/1000ft)
Max. Capacitance Unbalance	160 pF/100m
Nom. Characteristic Impedance	100 Ohm

Delay

Max. Delay Skew	45 ns/100m
Nom. Velocity of Prop.	78%

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation)	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACRF (ELFEXT) [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]	Min. PSANEXT [dB]	Min. PSAACRF [dB]	Min. TCL [dB]	Min. ELTCTL [dB]
1	2.1 dB/100m	75.3	72.3	68	65	20	67	67	40	35
4	3.8 dB/100m	66.3	63.3	56	53	23	67	66.2	34	23
10	5.9 dB/100m	60.3	57.3	48	45	25	67	58.2	30	15
16	7.5 dB/100m	57.2	54.2	43.9	40.9	25	67	54.1	28	10.9
31.2	10.5 dB/100m	52.9	49.9	38.1	35.1	23.6	67	48.3	25.1	5.1
62.5	15 dB/100m	48.4	45.4	32.1	29.1	21.5	65.6	42.3	22
100	19.1 dB/100m	45.3	42.3	28	25	20.1	62.5	38.2	20
125	21.5 dB/100m	43.8	40.8	26.1	23.1	19.4	61	36.3	19
200	27.6 dB/100m	40.8	37.8	22	19	18	58	32.2	17
250	31.1 dB/100m	39.3	36.3	20	17	17.3	56.5	30.2	16
300	34.3 dB/100m	38.1	35.1	18.5	15.5	17.3	55.3	28.7
500	45.3 dB/100m	34.8	31.8	14	11	17.3	52	24.2

Voltage

Voltage Rating	72 V DC

Mechanical Characteristics

Bulk Cable Weight	160 kg/km (110 lbs/1000ft)

Temperature

Operating	-20°C to +70°C
Installation	-5°C to +70°C

Bend Radius

Installation Min.	106 mm (4.17 in)

Standards and Compliance

Environmental Suitability	Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, UV Resistance
Flammability / Reaction to Fire	IEC 60332-3-22, IEC 60332-1-2
IEEE Compliance	IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
Data Category	Category 6A
ISO/IEC Compliance	ISO/IEC 11801 IEC 61156-5
CENELEC Compliance	EN 50173-1
