Product Number: DAUP

Category 6A Cable, 4 Pair, U/UTP, CMP

Name: Belden DAUP
Brand: Belden
SKU: DAUP

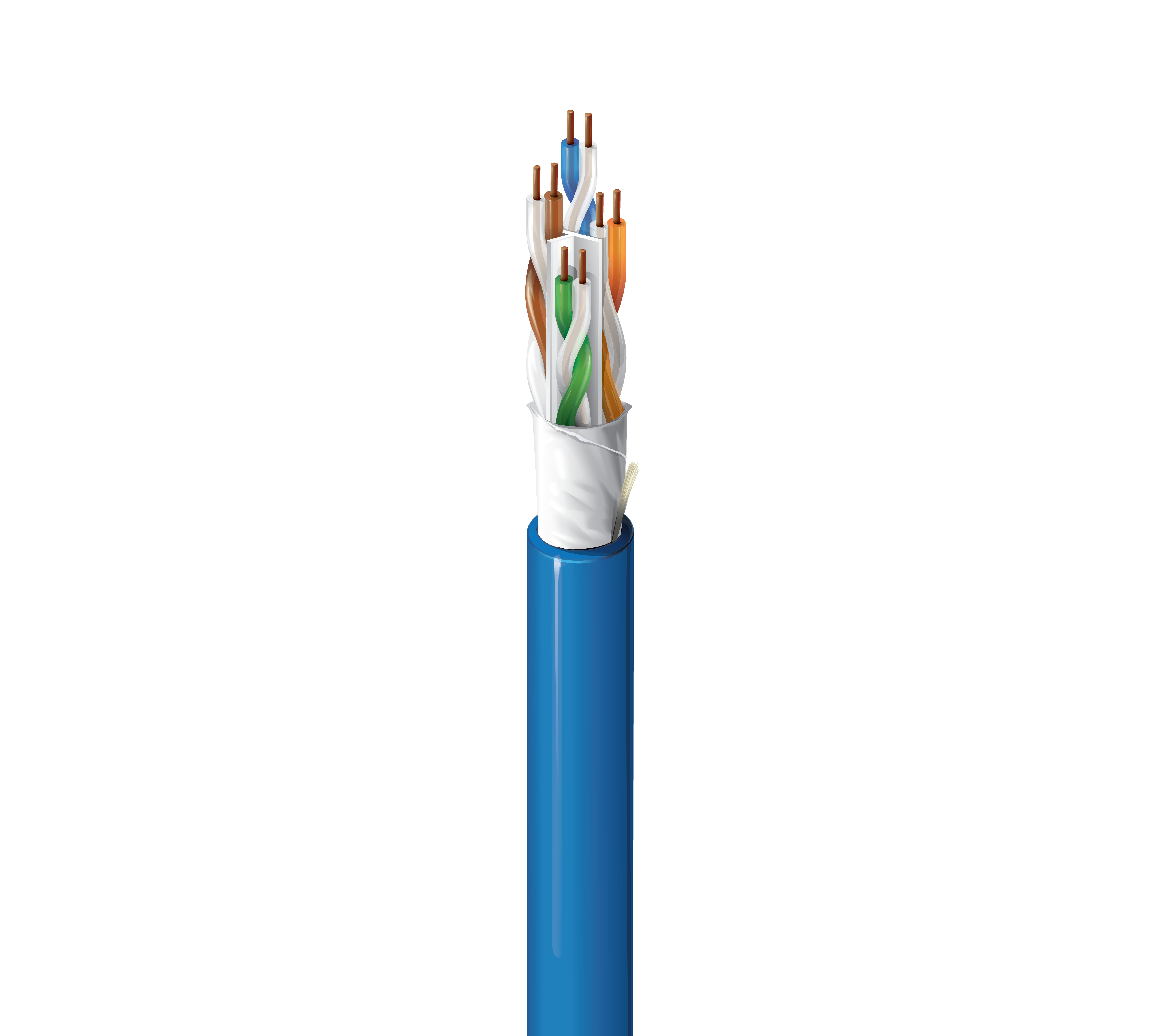

Category 6A Premise Horizontal Cable, 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest® PVC-LS Jacket

Ships from and sold by A5 IT.

Part numbers

DAUP is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	Order
DAUP 0101000	Black	Reel	1,000 ft	Order online
DAUP D151000	Blue	Reel	1,000 ft	Order online
DAUP D15A1000	Blue	Reel in Box	1,000 ft	Order online
DAUP 0081000	Gray	Reel	1,000 ft	Order online
DAUP 005A1000	Green	Reel in Box	1,000 ft	Order online
DAUP 0051000	Green, Dark	Reel	1,000 ft	Order online
DAUP 0031000	Orange	Reel	1,000 ft	Order online
DAUP 003A1000	Orange	Reel in Box	1,000 ft	Order online
DAUP 0021000	Red	Reel	1,000 ft	Order online
DAUP 0091000	White	Reel	1,000 ft	Order online
DAUP 0041000	Yellow	Reel	1,000 ft	Order online

Suitable Applications	Premise Horizontal Cable, Ethernet 10GBASE-T

Overall Cable Diameter (Nominal)	0.250 in (6.35 mm)

Material	FEP - Fluorinated Ethylene Propylene
Color Code	White & Blue, White & Orange, White & Green, White & Brown

Separator	Center Member (Patented X-Spline®), EquiBlockTM Barrier Technology
Material	PVC - Polyvinyl Chloride
Material Trade Name	Flamarrest®
Nom. Diameter	0.250 in (6.35 mm)
Ripcord	Yes

Max. Conductor DCR	82 Ohm/km (25 Ohm/1000ft)
Max. Capacitance Unbalance	45 pF/100m

UL Voltage Rating	300 V (CMP)

Max. Pull Tension	25 lbs (11 kg)
Bulk Cable Weight	34 lbs/1000ft (51 kg/km)

Stationary Min.	1 in (25 mm)

Environmental Suitability	Plenum, Indoor
Flammability / Reaction to Fire	NFPA 262, UL 910 (Plenum), FT6
NEC / UL Compliance	Article 800
CEC / C(UL) Compliance	CMP.
ICEA Compliance	S-116-732
IEEE Compliance	IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
NEMA Compliance	ANSI/NEMA WC-66
Data Category	Category 6A
TIA/EIA Compliance	ANSI/TIA-568.2-D Category 6A
Third Party Performance Verification	Channel/Category 6A
ISO/IEC Compliance	ISO/IEC 11801-1, IEC 61156-5
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
APAC Compliance	China RoHS II (GB/T 26572-2011)
Non-Plenum Number	DAUR

Notes	Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0.
