Product Number: 10GXM13

10GXM (0.230”) Category 6A Cable, 4 Pair, U/UTP, CMP

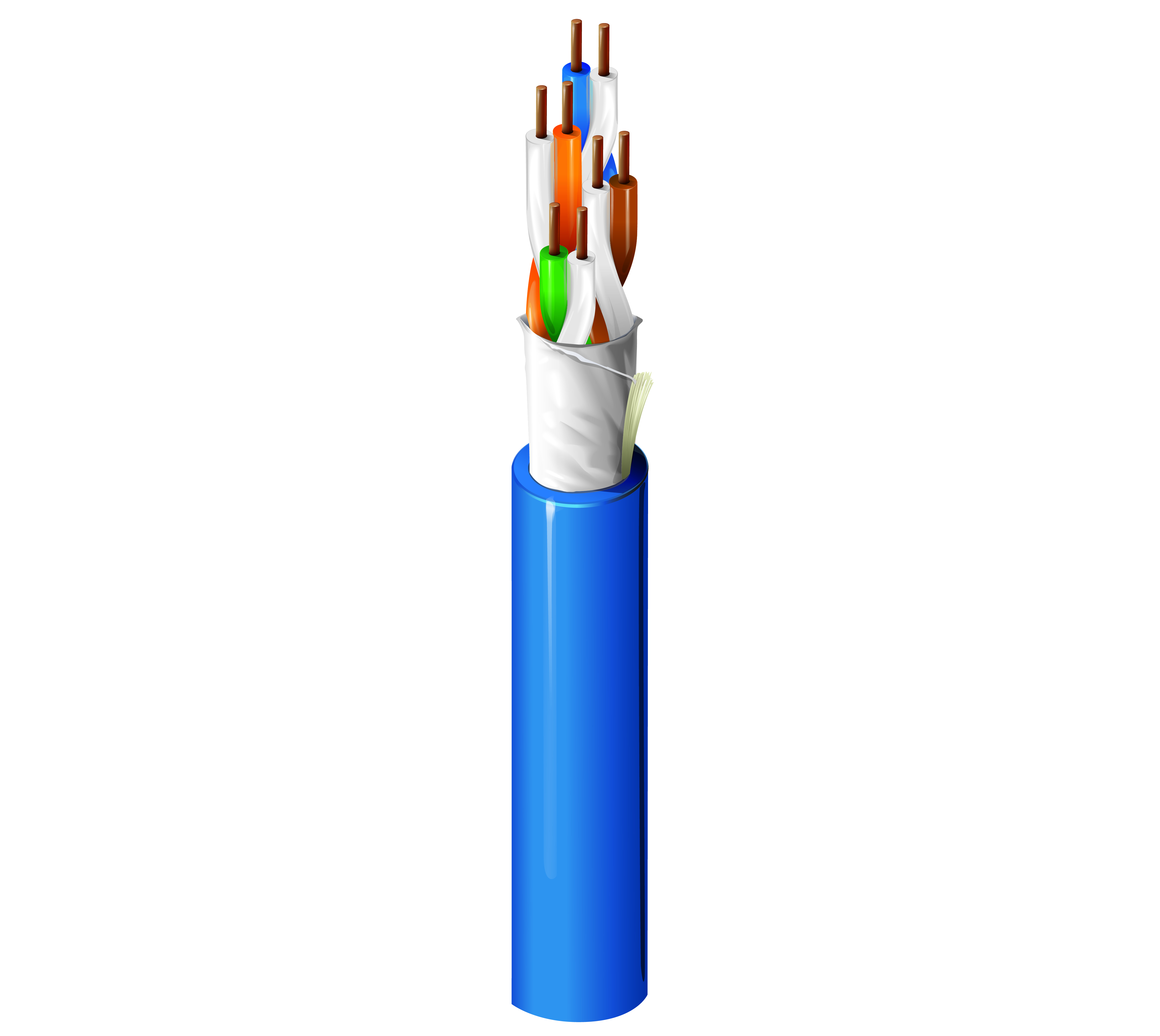

10GXM (0.230" Diameter) Category 6A Premise Horizontal Cable (500MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest® PVC-LS Jacket

Availability: Global
Status: Active
Orderable items: 12

Ships from and sold by A5 IT.

Part numbers

10GXM13 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	Order
10GXM13 0101000	Black	Reel	1,000 ft	Order online
10GXM13010A1000	Black	Reel in Box	1,000 ft	Order online
10GXM13 D151000	Blue	Reel	1,000 ft	Order online
10GXM13D15A1000	Blue	Reel in Box	1,000 ft	Order online
10GXM13 0051000	Green	Reel	1,000 ft	Order online
10GXM13005A1000	Green	Reel in Box	1,000 ft	Order online
10GXM13 0031000	Orange	Reel	1,000 ft	Order online
10GXM13003A1000	Orange	Reel in Box	1,000 ft	Order online
10GXM13 0091000	White	Reel	1,000 ft	Order online
10GXM13009A1000	White	Reel in Box	1,000 ft	Order online
10GXM13 0041000	Yellow	Reel	1,000 ft	Order online
10GXM13004A1000	Yellow	Reel in Box	1,000 ft	Order online

Specifications

Product Overview

Suitable Applications	Premise Horizontal Cable, Ethernet 10GBASE-T, Wi-Fi 6, Wi-Fi 5, In-Building Wireless, In-Building Small Cells, Mobile RAN, PoE++, PoE+, PoE, HDBaseT

Construction Details

Outer Jacket1 Table Notes	Core wrapped with EquiBlockTM Barrier Technology
Overall Cable Diameter (Nominal)	0.230

Conductor

Size	23 AWG
Stranding	Solid
Material	BC - Bare Copper
No. of Pairs	4

Insulation

Material	FEP - Fluorinated Ethylene Propylene
Color Code	White & Blue, White & Orange, White & Green, White & Brown

Outer Jacket

Material	PVC - Polyvinyl Chloride
Material Trade Name	Flamarrest®
Nom. Diameter	0.230
Ripcord	Yes

Electrical Characteristics

Electricals

Max. Conductor DCR	93.8 Ohm/km (28.6 Ohm/1000ft)
Max. Capacitance Unbalance	330 pF/100m
Nom. Characteristic Impedance	100 Ohm

Delay

Max. Delay	537.6 ns/100m
Max. Delay Skew	45 ns/100m
Nom. Velocity of Prop.	69%

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation) [dB/100m]	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACR [dB]	Min. PSACR [dB]	Min. ACRF (ELFEXT) [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]	Max./Min. Input Impedance (unFitted) [Ohm]	Max./Min. Fitted Impedance [Ohm]	Min. PSANEXT [dB]	Min. PSAACRF [dB]	Min. TCL [dB]	Min. ELTCTL [dB]
1	2.1	74.3	72.3	72.2	70.2	67.8	64.8	20.0	100 ± 15	105 ± 10	67.0	67.0	40.0	35.0
4	3.8	65.3	63.3	61.5	59.5	55.8	52.8	23.0	100 ± 15	105 ± 10	67.0	66.2	40.0	23.0
8	5.3	60.8	58.8	55.4	53.4	49.7	46.7	24.5	100 ± 15	105 ± 10	67.0	60.1	40.0	16.9
10	5.9	59.3	57.3	53.4	51.4	47.8	44.8	25.0	100 ± 15	105 ± 10	67.0	58.2	40.0	15.0
16	7.5	56.2	54.2	48.8	46.8	43.7	40.7	25.0	100 ± 15	105 ± 10	67.0	54.1	38.0	10.9
20	8.4	54.8	52.8	46.4	44.4	41.8	38.8	25.0	100 ± 15	105 ± 10	67.0	52.2	37.0	9.0
25	9.4	53.3	51.3	44.0	42.0	39.8	36.8	24.3	100 ± 15	105 ± 10	67.0	50.2	36.0	7.0
31.25	10.5	51.9	49.9	41.4	39.4	37.9	34.9	23.6	100 ± 15	105 ± 10	67.0	48.3	35.1	5.1
62.5	15.0	47.4	45.4	32.4	30.4	31.9	28.9	21.5	100 ± 15	105 ± 10	65.6	42.3	32.0
100	19.1	44.3	42.3	25.2	23.2	27.8	24.8	20.1	100 ± 15	105 ± 10	62.5	38.2	30.0
200	27.6	39.8	37.8	12.2	10.2	21.8	18.8	18.0	100 ± 22	100 ± 10	58.0	32.2	27.0
250	31.1	38.3	36.3	7.3	5.3	19.8	16.8	17.3	100 ± 32	100 ± 10	56.5	30.2	26.0
300	34.3	37.1	35.1	2.9	0.9	18.3	15.3	16.8	100 ± 32	100 ± 10	55.3	28.7	25.2
350	37.2	36.1	34.1			16.9	13.9	16.3	100 ± 32	100 ± 10	54.3	27.3	24.6
400	40.1	35.3	33.3			15.8	12.8	15.9	100 ± 32	100 ± 10	53.5	26.2	24.0
450	42.7	34.5	32.5			14.7	11.7	15.5	100 ± 32	100 ± 10	52.7	25.1	23.5
500	45.3	33.8	31.8			13.8	10.8	15.2	100 ± 32	100 ± 10	52.0	24.2	23.0

Voltage

UL Voltage Rating	300 V (CMP)

Mechanical Characteristics

Table Notes	25 lbs

Temperature

UL Temperature	105°C
Operating	-20°C To +75°C
Storage	-20°C To +75°C

Bend Radius

Flexing Min.	1 in (25 mm)

Standards and Compliance

Environmental Suitability	Indoor
Flammability / Reaction to Fire	NFPA 262, UL 910 (Plenum), FT6
NEC / UL Compliance	Article 800, CMP, CMP-LP (0.7A)
CEC / C(UL) Compliance	CMP.
ICEA Compliance	S-116-732
IEEE Compliance	IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
NEMA Compliance	ANSI/NEMA WC-66
Data Category	Category 6A
TIA/EIA Compliance	ANSI/TIA-568.2-D Category 6A
ISO/IEC Compliance	IEC 11801-1 IEC 61156-5
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2024-06-07
APAC Compliance	China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)	c(UL)us Listed

Product Notes

Notes	Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0.
