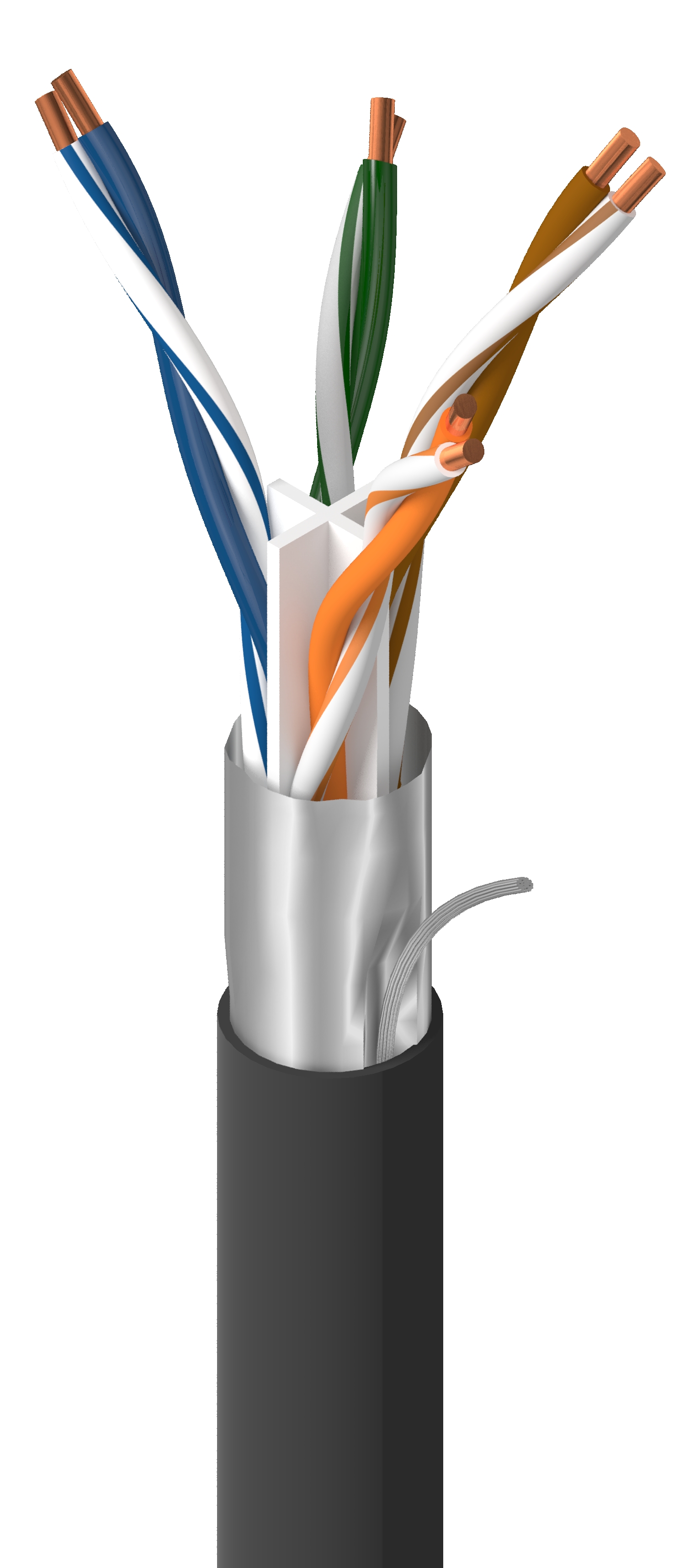

Product Number: IEA002

DataTuff® 6A, 4 Bonded-Pr #23 Sol BC, PO Ins, OS, PVC Jkt, CMR/CMX Outdoor

Industrial Ethernet, Cat 6A, 4 Bonded-Pair, 23 AWG Solid Bare Copper, PO Insulation, Patented X-SplineTM Technology, Overall Beldfoil® Shield (F/UTP), PVC Jacket, CMR/CMX Outdoor

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

IEA002 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Order
IEA002 0101000	Order online

Specifications

Product Overview

Suitable Applications	harsh environment, exposure to oil, IIoT, factory or process automation, IP cameras and devices, data communication, etc.
Patent	This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents .

Construction Details

Bonded-Pair	Yes
Overall Cable Diameter (Nominal)	0.311 in (7.90 mm)

Conductor

Element	Pair(s)
Size	23 AWG
Stranding	Solid
Material	BC - Bare Copper
No. of Pairs	4

Insulation

Element	Pair(s)
Material	PO - Polyolefin
Nom. Insulation Diameter	0.046 in (1.2 mm)
Color Code	White & Blue, White & Orange, White & Green, White & Brown

Outer Shield

Shield Type	Tape
Material	Polyester + Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	26 AWG (7x34) TC

Outer Jacket

Separator	Center Member (Patented X-Spline®)
Material	PVC - Polyvinyl Chloride
Nom. Diameter	0.311 in (7.90 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Max. Conductor DCR	23.2 Ohm/1000ft (76.1 Ohm/km)
Max. Capacitance Unbalance	45 pF/100m

Delay

Frequency	100 MHz
Max. Delay	537.6 ns/100m
Max. Delay Skew	45 ns/100m
Nom. Velocity of Prop.	65%

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation) [dB/100m]	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACR [dB]	Min. PSACR [dB]	Min. ACRF (ELFEXT) [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]	Max./Min. Input Impedance (unFitted)	Max./Min. Fitted Impedance	Min. PSANEXT [dB]	Min. PSAACRF [dB]	Min. TCL [dB]	Min. ELTCTL [dB]
1	2.1	74.3	72.3	72.2	70.2	67.8	64.8	20.0	105 ± 10 Ohm	115 +/- 15	67.0	67.0	40.0	35.0
4	3.8	65.3	63.3	61.5	59.5	55.8	52.8	23.0	100 ± 10 Ohm	100 +/- 7	67.0	66.2	40.0	23.0
8	5.3	60.8	58.8	55.4	53.4	49.7	46.7	24.5	100 ± 22 Ohm	100 ± 7 Ohm	67.0	60.1	40.0	16.9
10	5.9	59.3	57.3	53.4	51.4	47.8	44.8	25.0	100 ± 22 Ohm	100 ± 7 Ohm	67.0	58.2	40.0	15.0
16	7.5	56.2	54.2	48.8	46.8	43.7	40.7	25.0	100 ± 22 Ohm	100 ± 7 Ohm	67.0	54.1	38.0	10.9
20	8.4	54.8	52.8	46.4	44.4	41.8	38.8	25.0	100 ± 22 Ohm	100 ± 7 Ohm	67.0	52.2	37.0	9.0
25	9.4	53.3	51.3	44.0	42.0	39.8	36.8	24.3	100 ± 22 Ohm	100 ± 7 Ohm	67.0	50.2	36.0	7.0
31.25	10.5	51.9	49.9	41.4	39.4	37.9	34.9	23.6	100 ± 22 Ohm	100 ± 7 Ohm	67.0	48.3	35.1	5.1
62.5	15.0	47.4	45.4	32.4	30.4	31.9	28.9	21.5	100 ± 22 Ohm	100 ± 7 Ohm	65.6	42.3	32.0
100	19.1	44.3	42.3	25.2	23.2	27.8	24.8	20.1	100 ± 22 Ohm	100 ± 7 Ohm	62.5	38.2	30.0
200	27.6	39.8	37.8	12.2	10.2	21.8	18.8	18.0	100 ± 22 Ohm	100 ± 7 Ohm	58.0	32.2	27.0
250	31.1	38.3	36.3	7.3	5.3	19.8	16.8	17.3	100 ± 32 Ohm	100 ± 7 Ohm	56.5	30.2	26.0
300	34.3	37.1	35.1	2.9	0.9	18.3	15.3	16.8	100 ± 32 Ohm	100 ± 7 Ohm	55.3	28.7	25.2
350	37.2	36.1	34.1			16.9	13.9	16.3	100 ± 32 Ohm	100 ± 7 Ohm	54.3	27.3	24.6
400	40.1	35.3	33.3			15.8	12.8	15.9	100 ± 32 Ohm	100 ± 7 Ohm	53.5	26.2	24.0
450	42.7	34.5	32.5			14.7	11.7	15.5	100 +/- 32	100 +/- 7	52.7	25.1	23.5
500	45.3	33.8	31.8			13.8	10.8	15.2	100 +/- 32	100 +/- 7	52.0	24.2	23.0

Voltage

UL Voltage Rating	300 V RMS (CMR/CMX Outdoor), 600V RMS (AWM 21137)
Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	53 lbs (24 kg)
Bulk Cable Weight	42 lbs/1000ft (63 kg/km)

Temperature

UL Temperature	75°C
Operating	-40°C To +75°C
Installation	-40°C To +60°C
Storage	-40°C To +75°C

Bend Radius

Stationary Min.	1.86 in (47.2 mm)
Installation Min.	1.86 in (47.2 mm)

Standards and Compliance

Environmental Suitability	Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance
Flammability / Reaction to Fire	UL1666 Riser
CPR Compliance	CPR Euroclass: Fca
NEC / UL Compliance	Article 800, CMR, CMX-Outdoor
AWM Compliance	AWM 21137 (600V)
CEC / C(UL) Compliance	CMR-CMX OUTDOOR.
ICEA Compliance	S-116-732, S-56-434, S-99-689, S-100-685
IEEE Compliance	IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
NEMA Compliance	ANSI/NEMA WC-66
Data Category	Category 6A
TIA/EIA Compliance	ANSI/TIA-568.2-D Category 6A
ISO/IEC Compliance	ISO/IEC 11801-1, IEC 61156-5
CENELEC Compliance	Segregation class according EN50174-2 = a
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
APAC Compliance	China RoHS II (GB/T 26572-2011)

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. Not Suitable for Direct Burial. Belden recommends using an entrance demarcation point when transitioning inside buildings with gel-filled OSP cables due to the cable design containing gel specific for wet outdoor environments. The suggested transition point is the REVConnect core coupler, part number RVACPKUBK-S1.
