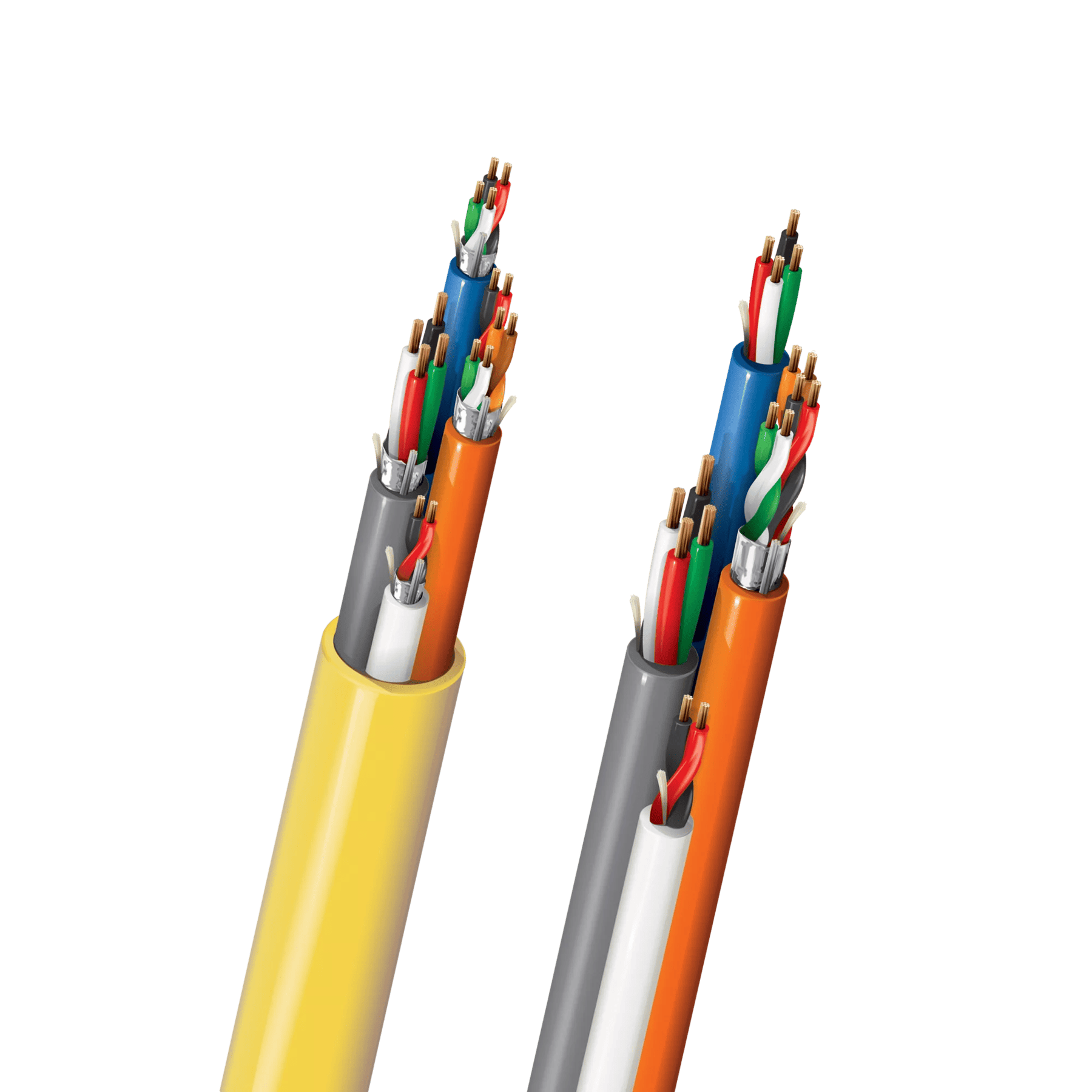

Access Control Cable
Belden Access Control Composite Cables are a cost-effective security solution including labor savings and easy-identification features for a new level of ease and convenience to any installation. NEW Generation CPR rated Access Control Cables are now available with a high-flame rating feature for enhanced safety, meeting North American and European fire safety regulations.
Features & Benefits
- Overall Jacket Not Required: Individual cables affixed to a center spline with patented Banana Peel construction
- Color-Coded by Application: Each cable component is color-coded with the application printed on the jacket
- Reduced Lead Times: Large product choice including spline, AWG and shielding options
- Labor Savings: Up to 31% installation time savings due to easy jacket removal.
- High flame rating meeting both North American and European construction fire safety regulations - now available in Euroclass CPR, Cca and Dca
36 product families
558AFJ
Access Control, 16c (#22-3pr, #18-4c, #22-4c, #22-2c), Shielded, Outer Jacket, CMR
PVC - Polyvinyl Chloride · 300 V · 75°C
2 items
658AMJ
Access Control, 16c (#22-3pr, #18-4c, #22-4c, #22-2c), Only Card Reader Pairs Shielded, Outer Jacket, CMP
PVC - Polyvinyl Chloride · 300 V (CMP) · 75°C
2 items
658GFS
Access Control, 18c (#22-6pr, #18-4c, #22-2c), Shielded, CMP
No Jacket · 300 V (CMP) · 75°C
2 items
558ANH
Access Control, 16c (#22-3pr, #18-4c, #22-6c), Shielded, LSZH Banana Peel®, CMG-LS
No Jacket · 300 V · 105°C
1 item
558GMS
Access Control, 18c (#18-4c, #22-6c Foil, #22-4, #22-4), CMR, Banana Peel®
No Jacket · 300 V · 75°C
1 item
5A4N00001
OSDP RS485, 2PR #22 Str TC, Foam-PE Ins, OS, LSZH Jkt
22 AWG · TC - Tinned Copper · PE - Polyethylene (Foam) · LSZH - Low Smoke Zero Halogen (Flame Retardant)
438AFJ
Access Control, 16c (#18-3pr, #16-4c, #18-6c), Shielded, Outer Jacket, Eca
438AFJW
Access Control, 16c (#18-3pr, #16-4c, #18-6c), Shielded, Outer Jacket, Cca
438AMJ
Access Control, 16c (#18-3pr, #16-4c, #18-6c), Only Card Reader Pairs Shielded, Outer Jacket, Eca
438AMJW
Access Control, 16c (#18-3pr, #16-4c, #18-6c), Only Card Reader Pairs Shielded, Outer Jacket, Cca
538AFJ
Access Control, 16c (#18-3pr, #16-4c, #18-6c), Shielded, Outer Jacket, CMR
PVC - Polyvinyl Chloride · 300 V (UL CMR)
538AMJ
Access Control, 16c (#18-3pr, #16-4c, #18-6c), Only Card Reader Pairs Shielded, Outer Jacket, CMR
PVC - Polyvinyl Chloride · 300 V (UL CMR)
538AMS
Access Control, 16c (#18-3pr, #16-4c, #18-6c), Only Card Reader Pairs Shielded, Banana Peel®, CMR
300 V (UL CMR)
538HMD1
OSDP Access Control Cable, Indoor/Outdoor CM, 14C (OSDP Reader 1Pr 22+#18-2, #18-4, #22-6), Overall PVC Jacket
PVC - Polyvinyl Chloride · 300 V · 60°C
558AM1
Indoor/Outdoor Access Control CM Rated Composite
PVC - Polyvinyl Chloride · 300 V · 60°C
558AMJ
Access Control, 16c (#22-3pr, #18-4c, #22-4c, #22-2c), Only Card Reader Pairs Shielded, Outer Jacket, CMR
PVC - Polyvinyl Chloride · 300 V (UL CMR)
558AMS
Access Control, 16c (#22-3pr, #18-4c, #22-6c), Only Card Reader Pairs Shielded, Banana Peel®, CMR
300 V (UL CMR)
638AFJ
Access Control, 16c (#18-3pr, #16-4c, #18-6c), Shielded, Outer Jacket, CMP
PVC - Polyvinyl Chloride · 300 V (UL CMP)
638AMJ
Access Control, 16c (#18-3pr, #16-4c, #18-6c), Only Card Reader Pairs Shielded, Outer Jacket, CMP
PVC - Polyvinyl Chloride · 300 V (UL CMP)
638AMS
Access Control, 16c (#18-3pr, #16-4c, #18-6c), Only Card Reader Pairs Shielded, Banana Peel®, CMP
300 V · 75°C
638JMDS
OSDP Access Control Cable, CMP, 14C (OSDP Reader 1Pr-22 Shielded, #18-2, #18-4, #22-4, #16-2), , Banana Peel®
Banana Peel (No Overall Jacket) · 300 V · 75°C
658AMS
Access Control, 16c (#22-3pr, #18-4c, #22-6c), Only Card Reader Pairs Shielded, Banana Peel®, CMP
300 V (UL CMP)
658HMS
OSDP Access Control Cable, CMP, 14C (OSDP Reader 1Pr-24, #18-2, #18-4, #22-4, #22-2c), , Banana Peel®
Banana Peel (No Overall Jacket) · 300 V · 75°C

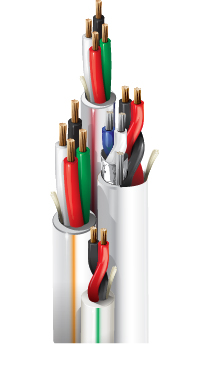

658JMS
OSDP Access Control Cable, CMP, 14C (OSDP Reader 1Pr-22, #18-2, #18-4, #22-6), , Banana Peel®
Banana Peel (No Overall Jacket) · 300 V · 75°C

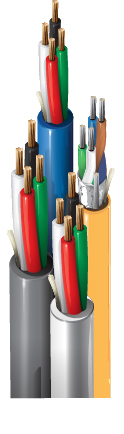

668AMD
Dual OSDP Access Control Cable, CMP, 16C (OSDP Reader 2Pr-#24, #18-8, #22-4), Banana Peel®
Banana Peel (No Overall Jacket) · 300 V · 75°C
5381M1
1Pr 22 AWG Shielded Data + 18/2 Power OSDP Indoor/Outdoor CM
PVC - Polyvinyl Chloride · 300 V (300 V) · 75°C
6281MD
1Pr 22AWG Shielded Data + 16/2 Power OSDP CMP
Flamarrest® · (300V (CMP)) · 60°C
6381MD
1Pr 24AWG Shielded Data + 18/2 Power OSDP CMP
Flamarrest® · (300 V) · 60°C
6386MD
Dual OSDP In/Out + 4C 18 AWG Power - Banana Peel - CMP
Banana Peel (No Overall Jacket) · 300 V · 75°C
6408MD
1 PR 22AWG SHLD + 8 Cond 20AWG UNSHLD CMP
PVC - Polyvinyl Chloride · 300 V · 75°C
6540FD
1Pr 22AWG Overall Shielded Data OSDP, RS-485 CMP
22 AWG · TC - Tinned Copper · FEP - Fluorinated Ethylene Propylene (Foam) · Flamarrest®
6541FD
2 Pr #22 STR TC, FEP, Ov Shld OSDP Readers CMP
22 AWG · TC - Tinned Copper · FEP - Fluorinated Ethylene Propylene (Foam) · PVC - Polyvinyl Chloride
6640FD
1Pr 24AWG Shielded Data OSDP CMP
24 AWG · TC - Tinned Copper · FEP - Fluorinated Ethylene Propylene (Foam) · Flamarrest®
6641FD
2 Pr #24 STR TC, FEP, Ov Shld OSDP Readers CMP
24 AWG · TC - Tinned Copper · FEP - Fluorinated Ethylene Propylene (Foam) · PVC - Polyvinyl Chloride
6641PDS
2 PR #24 Shielded, CMP Low Capacitance
24 AWG · TC - Tinned Copper · FEP - Fluorinated Ethylene Propylene (Foam) · PVC - Polyvinyl Chloride
658BMJ
Access Control, 20c (2x#22-3pr, #18-4c, #22-4c), Only Card Reader Pairs Shielded, Outer Jacket, CMP
PVC - Polyvinyl Chloride · 300 V · 75°C
