Product Number: 658HMS

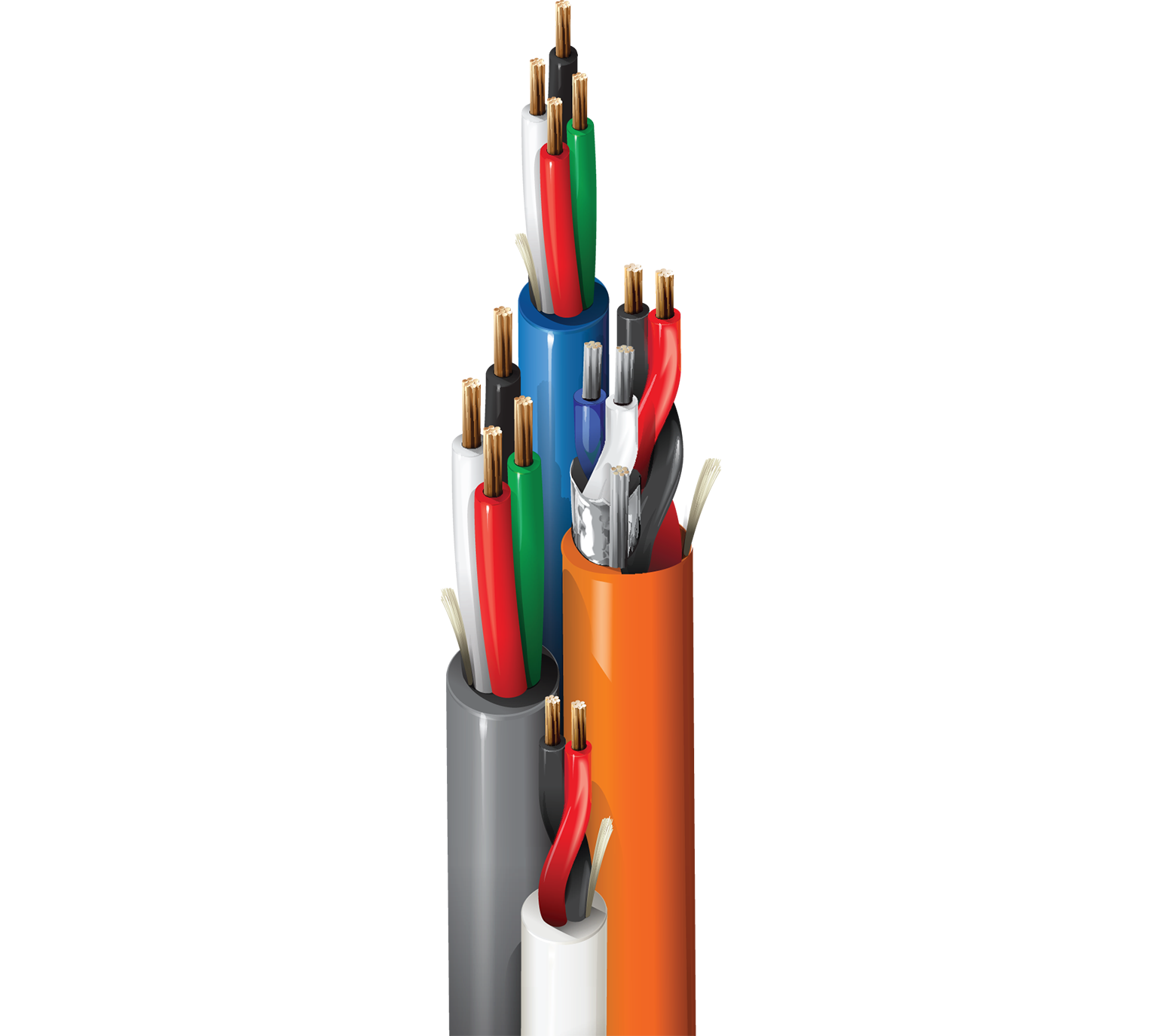

OSDP Access Control Cable, CMP, 14C (OSDP Reader 1Pr-24, #18-2, #18-4, #22-4, #22-2c), , Banana Peel®

Name: Belden 658HMS
Brand: Belden
SKU: 658HMS

OSDP Access Control Cable, CMP, 14C (OSDP Reader 1Pr-24, #18-2, #18-4, #22-4, #22-2c), Banana Peel®

Ships from and sold by A5 IT.

Specifications

Suitable Applications	Access Control, Security System, Power Limited Controls, OSDP Reader
Patent	This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents .

Outer Jacket1 Table Notes	Banana Peel®
Overall Cable Diameter (Nominal)	.455 in (11.6 mm)

Element Description	Element	No. of Conductors	No. of Pairs	Size	Stranding	Material	Notes
Card Reader	Data Pair(s)		1	24	7x32	TC - Tinned Copper	Data Pair - 1 Pr. 24AWG Shielded, RS-485 - Reader
Card Reader	Power	2		18	7x26	BC - Bare Copper	Power Pair - 2C 18AWG Unshielded
Door Contact	Conductor(s)	2		22	7x30	BC - Bare Copper
REX/Spare	Conductor(s)	4		22	7x30	BC - Bare Copper
Lock Power	Conductor(s)	4		18	7x26	BC - Bare Copper

Element Description	Element	Material	Nom. Thickness	Color Code
Card Reader	Data Pair(s)	FEP - Fluorinated Ethylene Propylene (Foam)	.025 in (0.64 mm)	Blue, White
Card Reader	Power	PVC - Polyvinyl Chloride	.012 in (0.30 mm)	Red, Black
Door Contact	Conductor(s)	PVC - Polyvinyl Chloride	.008 in (0.20 mm)	Black, Red
REX/Spare	Conductor(s)	PVC - Polyvinyl Chloride	.008 in (0.20 mm)	Black, Red, White, Green
Lock Power	Conductor(s)	PVC - Polyvinyl Chloride	.010 in (0.25 mm)	Black, Red, White, Green

Element Description	Element	Shield Type	Material	Coverage	Drainwire Type
Card Reader	Data Pair(s)	Tape	Bi-Laminate (Alum+Poly)	100%	24 AWG (7x32) TC
Card Reader	Power	No Shield
Door Contact	Conductor(s)	No Shield
REX/Spare	Conductor(s)	No Shield
Lock Power	Conductor(s)	No Shield

Element Description	Material	Nom. Thickness	Nom. Diameter	Color
Card Reader	PVC - Polyvinyl Chloride	.020 in (0.51 mm)	.215 in (5.46 mm)	Orange
Door Contact	PVC - Polyvinyl Chloride	.015 in (0.38 mm)	.120 in (3.05 mm)	White
REX/Spare	PVC - Polyvinyl Chloride	.015 in (0.38 mm)	.139 in (3.53 mm)	Blue
Lock Power	PVC - Polyvinyl Chloride	.015 in (0.38 mm)	.189 in (4.8 mm)	Gray

Material	Banana Peel (No Overall Jacket)
Nom. Diameter	.455 in (11.6mm)

Element Description	Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Other (Conds + Shield)	Nom. Characteristic Impedence
Card Reader	Data Pair(s)	24 Ohm/1000ft (79 Ohm/km)	13 pF/ft (43 pF/m)	24 pF/ft (79 pF/m)	120 Ohm
Card Reader	Power	6.2 Ohm/1000ft (20 Ohm/km)
Door Contact	Conductor(s)	16.2 Ohm/1000ft (53.1 Ohm/km)
REX/Spare	Conductor(s)	16.5 Ohm/1000ft (54.1 Ohm/km)
Lock Power	Conductor(s)	6.2 Ohm/1000ft (20 Ohm/km)

UL Voltage Rating	300 V

Max. Pull Tension	198 lbs (89.8 kg)
Bulk Cable Weight	98.38 lbs/1000ft (146.4 kg/km)

UL Temperature	75°C
Operating	0°C to +75°C

Stationary Min.	4.0 in (100 mm)
Installation Min.	4 in (100 mm)

Environmental Suitability	Indoor - Plenum, Indoor
Flammability / Reaction to Fire	NFPA 262, UL 910 (Plenum), FT6
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 800, CMP
CEC / C(UL) Compliance	CMP.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Notes	Cold environment installation: When installing cables that have been stored at ambient temperatures of 32 degrees Fahrenheit (0 degrees Centigrade) or lower, Belden recommends conditioning of the cable for 12 hours at room temperature prior to individual cable leg separation
