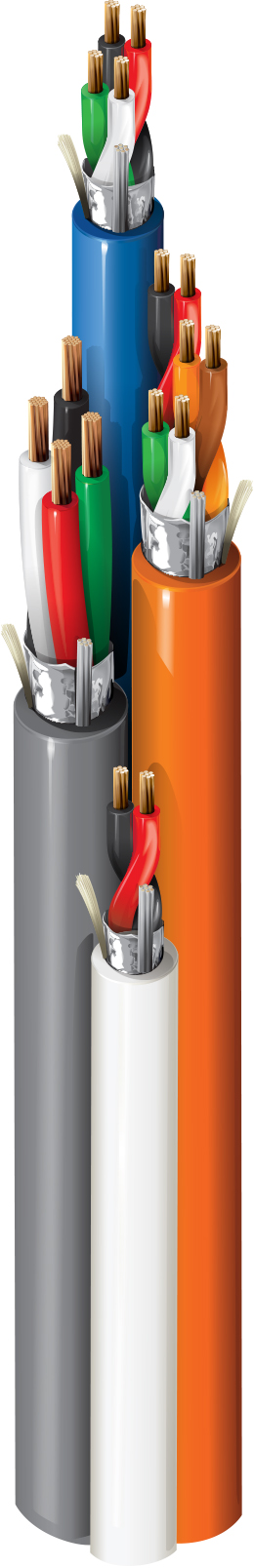

Product Number: 558ANH

Access Control, 16c (#22-3pr, #18-4c, #22-6c), Shielded, LSZH Banana Peel®, CMG-LS

Access Control Cable, Riser-CMR, 3-22 AWG pairs, 4-18 AWG conductors, 4-22 AWG conductors, 2-22 AWG conductors, All conductors stranded bare copper with polyolefin insulation, Each cable has overall Beldfoil® shield and LSZH jacket, Banana Peel® No overall jacket

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

558ANH is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
558ANH 0001000	Orange, White, Blue, Gray	Reel	1,000 ft	612825164500	Order online

Specifications

Product Overview

Suitable Applications	Access Control, Security System, Power Limited Controls
Patent	This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents .

Construction Details

Outer Jacket1 Table Notes	Banana Peel®
Overall Cable Diameter (Nominal)	0.493 in (12.5 mm)

Conductor

Element Description	Element	No. of Elements	Size	Stranding	Material
Card Reader	Pair(s)	3	22 AWG	7x30	BC - Bare Copper
Door Contact	Conductor(s)	2	22 AWG	7x30	BC - Bare Copper
REX/Spare	Conductor(s)	4	22 AWG	7x30	BC - Bare Copper
Lock Power	Conductor(s)	4	18 AWG	7x26	BC - Bare Copper

Insulation

Element Description	Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Card Reader	Pair(s)	PP - Polypropylene	0.0085 in (0.22 mm)	0.045 in (1.1 mm)	Black & Red, White & Green, Brown & Orange
Door Contact	Conductor(s)	PP - Polypropylene	0.0085 in (0.22 mm)	0.045 in (1.1 mm)	Black, Red
REX/Spare	Conductor(s)	PP - Polypropylene	0.0085 in (0.22 mm)	0.045 in (1.1 mm)	Black, Red, White, Green
Lock Power	Conductor(s)	PO - Polyolefin	0.0085 in (0.22 mm)	0.062 in (1.6 mm)

Inner Shield

Element Description	Element	Shield Type	Material	Coverage	Drainwire Type
Card Reader	Pair(s)	Tape	Bi-Laminate (Alum+Poly)	100%	24 AWG (7x32) TC
Door Contact	Conductor(s)	Tape	Bi-Laminate (Alum+Poly)	100%	22 AWG (7x30) TC
REX/Spare	Conductor(s)	Tape	Bi-Laminate (Alum+Poly)	100%	22 AWG (19x34) TC
Lock Power	Conductor(s)	Tape	Bi-Laminate (Alum+Poly)	100%	20 AWG (7x28) TC

Inner Jacket

Element Description	Element	Material	Nom. Thickness	Nom. Diameter	Ripcord	Color
Card Reader	Pair(s)	LSZH - Low Smoke Zero Halogen (Flame Retardant)	0.035 in (0.89 mm)	0.252 in (6.40 mm)	Yes	Orange
Door Contact	Conductor(s)	LSZH - Low Smoke Zero Halogen (Flame Retardant)	0.035 in (0.89 mm)	0.165 in (4.19 mm)	Yes	White
REX/Spare	Conductor(s)	LSZH - Low Smoke Zero Halogen (Flame Retardant)	0.035 in (0.89 mm)	0.233 in (5.92 mm)	Yes	Blue
Lock Power	Conductor(s)	LSZH - Low Smoke Zero Halogen (Flame Retardant)	0.035 in (0.89 mm)	0.233 in (5.92 mm)	Yes	Gray

Outer Jacket

Material	No Jacket
Nom. Diameter	0.493 in (12.5 mm)

Electrical Characteristics

Electricals

Element Description	Element	Nom. Conductor DCR	Nom. Inner Shield DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Shield	Max. Current
Card Reader	Pair(s)	16.3 Ohm/1000ft (53.5 Ohm/km)	13.9 Ohm/1000ft (45.6 Ohm/km)	23 pF/ft (75 pF/m)	41 pF/ft (130 pF/m)	4.2 Amps per Conductor @ 25°C
Door Contact	Conductor(s)	16.4 Ohm/1000ft (53.8 Ohm/km)	16.1 Ohm/1000ft (52.8 Ohm/km)	36 pF/ft (120 pF/m)	65 pF/ft (210 pF/m)	6 Amps per Conductor at 25oC
REX/Spare	Conductor(s)	16.4 Ohm/1000ft (53.8 Ohm/km)	16.1 Ohm/1000ft (52.8 Ohm/km)	23 pF/ft (75 pF/m)	41 pF/ft (130 pF/m)	10.5 Amps per Conductor at 25oC
Lock Power	Conductor(s)	6.5 Ohm/1000ft (21 Ohm/km)	7.3 Ohm/1000ft (24 Ohm/km)	27 pF/ft (89 pF/m)	48.5 pF/ft (159 pF/m)	11.2 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	200 lbs (91 kg)
Bulk Cable Weight	153 lbs/1000ft (228 kg/km)

Temperature

UL Temperature	105°C
Operating	-20°C to +105°C

Bend Radius

Stationary Min.	4.93 in (125 mm)
Installation Min.	4.93 in (125 mm)

Standards and Compliance

Environmental Suitability	Indoor (Not Riser or Plenum), Indoor
Sustainability	Product LensTM, Environmental Product Declaration (EPD) Available
Flammability / Reaction to Fire	UL 1685 FT4 Loading, Limited Smoke, FT4
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 800, CMG-LS
CEC / C(UL) Compliance	CMG-LS.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
Plenum Number	658AFS
Non-Plenum Number	558ANH

Product Notes

Notes	Cold environment installation: When installing cables that have been stored at ambient temperatures of 32 degrees Fahrenheit (0 degrees Centigrade) or lower, Belden recommends conditioning of the cable for 12 hours at room temperature prior to individual cable leg separation.
