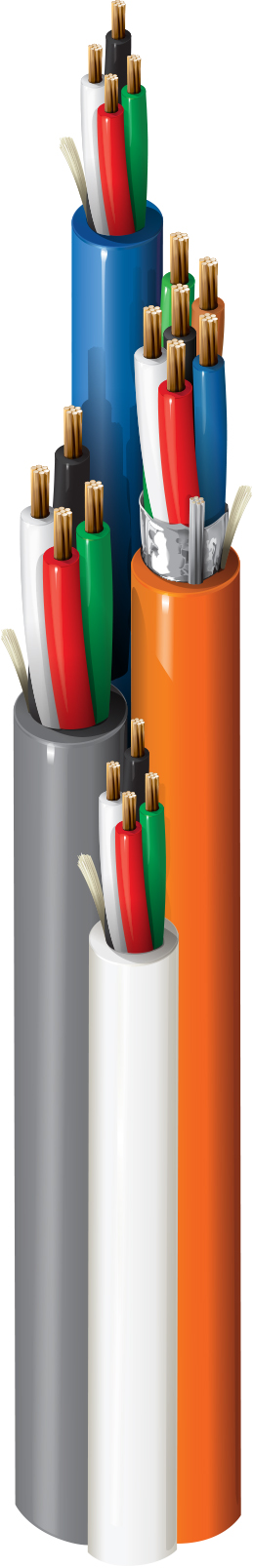

Product Number: 558GMS

Access Control, 18c (#18-4c, #22-6c Foil, #22-4, #22-4), CMR, Banana Peel®

Access Control Cable, Riser-CMR, 4-18 AWG conductors, 6-22 AWG conductors with Beldfoil® shield, 4-22 AWG conductors, 4-22 AWG conductors, All conductors stranded bare copper with FR-PVC insulation, Each cable has PVC jacket, Banana Peel® No overall jacket

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

558GMS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
558GMS 0001000	Orange, White, Blue, Gray	Reel	1,000 ft	612825164517	C	Order online

Specifications

Product Overview

Suitable Applications	Access Control, Security System, Power Limited Controls
Patent	This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents .

Construction Details

Overall Cable Diameter (Nominal)	0.425 in (10.8 mm)

Conductor

Element Description	Element	No. of Elements	Size	Stranding	Material
Card Reader	Conductor(s)	6	22 AWG	7x30	BC - Bare Copper
Door Contact	Conductor(s)	4	22 AWG	7x30	BC - Bare Copper
REX/Spare	Conductor(s)	4	22 AWG	7x30	BC - Bare Copper
Lock Power	Conductor(s)	4	18 AWG	7x26	BC - Bare Copper

Insulation

Element Description	Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Card Reader	Conductor(s)	PVC - Polyvinyl Chloride	0.010 in (0.25 mm)	0.049 in (1.2 mm)	Black, Red, White, Green, Yellow, Orange
Door Contact	Conductor(s)	PVC - Polyvinyl Chloride	0.010 in (0.25 mm)	0.049 in (1.2 mm)	Black, Red, White, Green
REX/Spare	Conductor(s)	PVC - Polyvinyl Chloride	0.010 in (0.25 mm)	0.049 in (1.2 mm)	Black, Red, White, Green
Lock Power	Conductor(s)	PVC - Polyvinyl Chloride	0.10 in (2.5 mm)	0.066 in (1.7 mm)

Inner Shield

Element Description	Element	Shield Type	Material	Coverage	Drainwire Type
Card Reader	Conductor(s)	Tape	Bi-Laminate (Alum+Poly)	100%	24 AWG (7x32) TC
Door Contact	Conductor(s)	No Shield
REX/Spare	Conductor(s)	No Shield
Lock Power	Conductor(s)	No Shield

Inner Jacket

Element Description	Element	Material	Nom. Thickness	Nom. Diameter	Ripcord	Color
Card Reader	Conductor(s)	PVC - Polyvinyl Chloride	0.020 in (0.51 mm)	0.189 in (4.80 mm)	Yes	Orange
Door Contact	Conductor(s)	PVC - Polyvinyl Chloride	0.020 in (0.51 mm)	0.158 in (4.01 mm)	Yes	White
REX/Spare	Conductor(s)	PVC - Polyvinyl Chloride	0.020 in (0.51 mm)	0.198 in (5.03 mm)	Yes	Blue
Lock Power	Conductor(s)	PVC - Polyvinyl Chloride	0.020 in (0.51 mm)	0.198 in (5.03 mm)	Yes	Gray

Outer Jacket

Material	No Jacket

Electrical Characteristics

Electricals

Element Description	Element	Nom. Conductor DCR	Nom. Inner Shield DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Shield	Max. Current
Card Reader	Conductor(s)	16.3 Ohm/1000ft	13.9 Ohm/1000ft (45.6 Ohm/km)	31 pF/ft (100 pF/m)	56 pF/ft (180 pF/m)	4.2 Amps per Conductor @ 25°C
Door Contact	Conductor(s)	16.1 Ohm/1000ft (52.8 Ohm/km)		46 pF/ft (150 pF/m)		4.8Amps per Conductor at 25oC
REX/Spare	Conductor(s)	16.3 Ohm/1000ft (53.5 Ohm/km)		46 pF/ft (150 pF/m)		10.5 Amps per Conductor at 25oC
Lock Power	Conductor(s)	6.5 Ohm/1000ft (21 Ohm/km)		30 pF/ft (98 pF/m)		11.2 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	217 lbs (98.4 kg)
Bulk Cable Weight	94 lbs/1000ft

Temperature

UL Temperature	75°C
Operating	0°C to +75°C

Bend Radius

Stationary Min.	4.25 in (108 mm)
Installation Min.	4.25 in (108 mm)

Standards and Compliance

Environmental Suitability	Indoor, Indoor
Sustainability	Product LensTM, Environmental Product Declaration (EPD) Available
Flammability / Reaction to Fire	UL 1666 Riser
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 800, CMR
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
Plenum Number	658GMS

Product Notes

Notes	Cold environment installation: When installing cables that have been stored at ambient temperatures of 32 degrees Fahrenheit (0 degrees Centigrade) or lower, Belden recommends conditioning of the cable for 12 hours at room temperature prior to individual cable leg separation.
