5A4N00001

Product Number: 5A4N00001

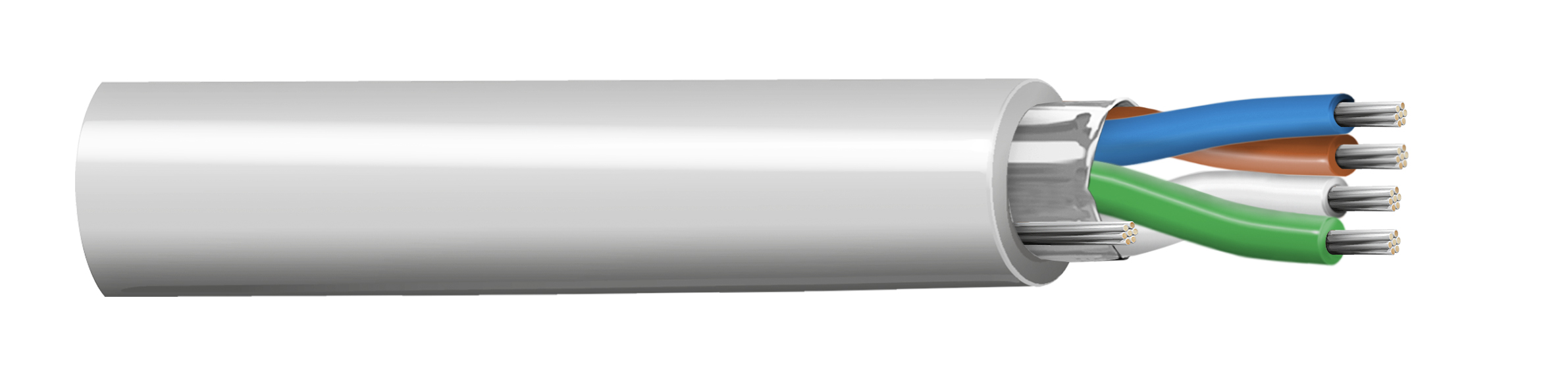

OSDP RS485, 2PR #22 Str TC, Foam-PE Ins, OS, LSZH Jkt

OSDP RS-485, 2 Pair 22AWG (7x30) Tinned Copper, Foam-PE Insulation, Overall Shield+Tinned Copper drainwire, LSZH Outer Jacket

Availability
Asia Pacific
Status
Active
Request a quote

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable ApplicationsOSDP Readers, RS-485, Serial Data, Access Control

Construction Details

Overall Cable Diameter (Nominal)7.5 mm (0.30 in)

Conductor

ElementPair(s)
No. of Conductors4
No. of Pairs2
Size22 AWG
Stranding7x30
MaterialTC - Tinned Copper

Insulation

ElementPair(s)
MaterialPE - Polyethylene (Foam)
Nom. Insulation Diameter2.0 mm (0.079 in)
Color Code1.Green*White 2.Brown*Blue

Outer Shield

Shield TypeTape
MaterialBi-Laminate (Alum+Poly)
Coverage100%
Drainwire Type24 AWG (7x32) TC

Outer Jacket

MaterialLSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Thickness0.8 mm (0.031 in)

Electrical Characteristics

Electricals

Max. Conductor DCR59.7@20°C Ohm/km
Nom. Characteristic Impedence120 Ohm

Voltage

UL Voltage Rating300 V

Mechanical Characteristics

Temperature

UL Temperature-20°C To +75°C

Standards and Compliance

Environmental SuitabilityIndoor, Indoor, Non-Halogenated
Flammability / Reaction to FireIEC 60332-1-2
European Halogen Free StandardsIEC 60754-1 - Halogen Amount = 0.5%, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

History

Update and RevisionRevision Number: 0.18 Revision Date: 04-09-2026
