Product Number: 558AM1

Indoor/Outdoor Access Control CM Rated Composite

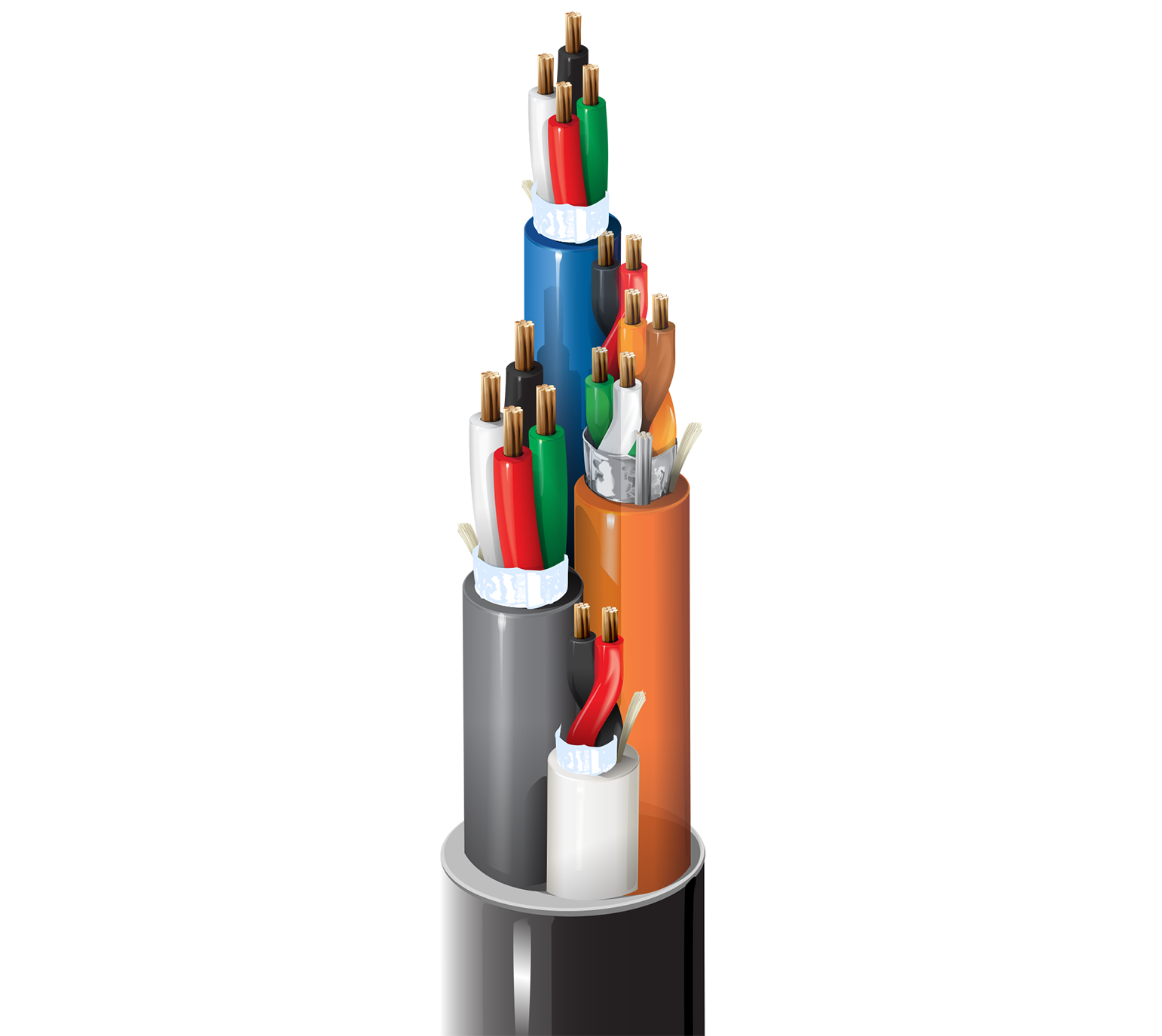

Name: Belden 558AM1
Brand: Belden
SKU: 558AM1

Access Control, 16c (#22-6C,18-4c, #22-6c), Only Card Reader Pairs Shielded, Indoor/Outdoor CM

Ships from and sold by A5 IT.

Specifications

Suitable Applications	Indoor/Outdoor: Access Control, Security System, Power Limited Controls

Waterblocking	Waterblock Tape
Overall Cable Diameter (Nominal)	.565 in (14.4 mm)

Element Description	Element	No. of Conductors	Size	Stranding	Material
Card Reader	Conductor(s)	6	22 AWG	7x30	BC - Bare Copper
Door Contact	Conductor(s)	2	22 AWG	7x30	BC - Bare Copper
REX/Spare	Conductor(s)	4	22 AWG	7x30	BC - Bare Copper
Lock Power	Conductor(s)	4	18 AWG	7x26	BC - Bare Copper

Element Description	Element	Material	Nom. Thickness	Color Code
Card Reader	Conductor(s)	PVC - Polyvinyl Chloride	.010 in (0.25 mm)	Black, Red, White, Green, Brown, Blue
Door Contact	Conductor(s)	PVC - Polyvinyl Chloride	.010 in (0.25 mm)	Black, Red
REX/Spare	Conductor(s)	PVC - Polyvinyl Chloride	.010 in (0.25 mm)	Black, Red, White, Green
Lock Power	Conductor(s)	PVC - Polyvinyl Chloride	.012 in (0.30 mm)	Black, Red, White, Green

Element Description	Element	Shield Type	Material	Coverage	Drainwire Type
Card Reader	Conductor(s)	Tape	Bi-Laminate (Alum+Poly)	100%	24 AWG (7x32) TC
Door Contact	Conductor(s)	No Shield
REX/Spare	Conductor(s)	No Shield
Lock Power	Conductor(s)	No Shield

Element Description	Element	Separator	Material	Nom. Thickness	Nom. Diameter	Ripcord	Color
Card Reader	Conductor(s)	Waterblocking Tape	PVC - Polyvinyl Chloride	.025 in (0.64 mm)	.226 in (5.74 mm)	Yes	Orange
Door Contact	Conductor(s)	Waterblocking Tape	PVC - Polyvinyl Chloride	.025 in (0.64 mm)	.168 in (4.27 mm)	Yes	White
REX/Spare	Conductor(s)	Waterblocking Tape	PVC - Polyvinyl Chloride	.025 in (0.64 mm)	.187 in (4.75 mm)	Yes	Blue
Lock Power	Conductor(s)	Waterblocking Tape	PVC - Polyvinyl Chloride	.025 in (0.64 mm)	.233 in (5.92 mm)	Yes	Gray

Material	PVC - Polyvinyl Chloride
Nom. Diameter	.565 in (14.4 mm)

Element Description	Element	Max. Conductor DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Other (Conds + Shield)
Card Reader	Conductor(s)	16.3 Ohm/1000ft (53.5 Ohm/km)	55 pF/ft (180 pF/m)	99 pF/ft (320 pF/m)
Door Contact	Conductor(s)	16.3 Ohm/1000ft (53.5 Ohm/km)	27 pF/ft (89 pF/m)
REX/Spare	Conductor(s)	16.3 Ohm/1000ft (53.5 Ohm/km)	27 pF/ft (89 pF/m)
Lock Power	Conductor(s)	6.5 Ohm/1000ft (21 Ohm/km)	34 pF/ft (110 pF/m)

UL Voltage Rating	300 V

UL Temperature	60°C
Operating	-20°C to +60°C

Stationary Min.	5.6 in (140 mm)
Installation Min.	5.6 in (140 mm)

Environmental Suitability	Indoor/Outdoor Indoor Rated (Not Riser or Plenum)
Flammability / Reaction to Fire	UL 1685
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 800, CM
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Plenum Number	658AMJ
