Product Number: 6641PDS

2 PR #24 Shielded, CMP Low Capacitance

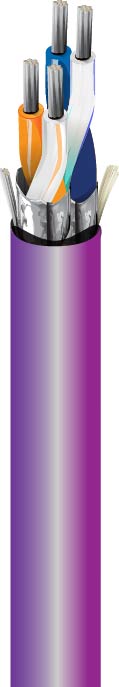

Name: Belden 6641PDS
Brand: Belden
SKU: 6641PDS

2 PR 24AWG Shielded - Low- Capacitance Temperature Control, RS-485, CMP

Ships from and sold by A5 IT.

Specifications

Suitable Applications	RS-485 Serial Data, Dual OSDP Reader Access Control, Temperature Control

Outer Jacket1 Table Notes	Flamearrest Plenum Jacket

Element	Data
No. of Pairs	2 Pairs
Size	24 AWG
Stranding	7x32
Material	TC - Tinned Copper
Notes	2 Pair Construction - Dual OSDP, RS-485, Temperature Controls

Element	Data Pair(s)
Material	FEP - Fluorinated Ethylene Propylene (Foam)
Nom. Thickness	.018 in (0.46 mm)
Color Code	1. White/Blue, Blue,White, 2. White/Orange, Orange/White

Element	Data Pair(s)
Nom. Conductor DCR	26 Ohm/1000ft (85 Ohm/km)
Nom. Capacitance Cond-to-Cond	12.5 pF/ft (41.0 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	22 pF/ft (72 pF/m)
Nom. Characteristic Impedence	120 Ohm

UL Voltage Rating	300 V

Max. Pull Tension	46 Lbs
Bulk Cable Weight	21 lbs/1000ft (31 kg/km)

Stationary Min.	1.6 in (41 mm)
Installation Min.	1.6 in (41 mm)

Environmental Suitability	Indoor - Plenum, Indoor
Sustainability	CA Prop 65
Flammability / Reaction to Fire	NFPA 262, UL 910 (Plenum), FT6
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 800, CMP
TIA/EIA Compliance	TIA/EIA 485-A
European Directive Compliance	EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
