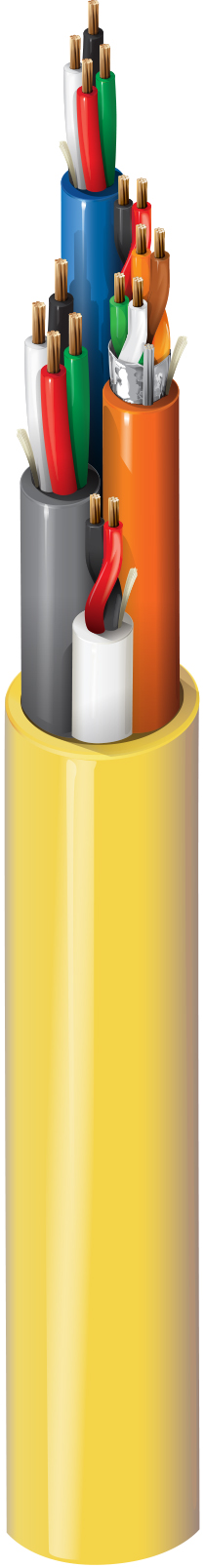

Product Number: 558AMJ

Access Control, 16c (#22-3pr, #18-4c, #22-4c, #22-2c), Only Card Reader Pairs Shielded, Outer Jacket, CMR

Access Control Cable, Riser-CMR, 3-22 AWG pairs, 4-18 AWG conductors, 4-22 AWG conductors, 2-22 AWG conductors, All conductors stranded bare copper with polyolefin insulation, Only Card reader pairs have overall Beldfoil® shield and PVC jackets, overall PVC jacket

Availability: Global
Status: Active

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable Applications	Access Control, Security System, Power Limited Controls

Construction Details

Overall Cable Diameter (Nominal)	0.469 in (11.9 mm)

Conductor

Element Description	Element	No. of Elements	Size	Stranding	Material
Card Reader	Pair(s)	3	22 AWG	7x30	BC - Bare Copper
Door Contact	Conductor(s)	2	22 AWG	7x30	BC - Bare Copper
REX/Spare	Conductor(s)	4	22 AWG	7x30	BC - Bare Copper
Lock Power	Conductor(s)	4	18 AWG	7x26	BC - Bare Copper

Insulation

Element Description	Element	Material	Color Code
Card Reader	Pair(s)	PP - Polypropylene	Black & Red, White & Green, Brown & Orange
Door Contact	Conductor(s)	PP - Polypropylene	Black, Red
REX/Spare	Conductor(s)	PP - Polypropylene	Black, Red, White, Green
Lock Power	Conductor(s)	PP - Polypropylene

Inner Shield

Element Description	Element	Shield Type	Material	Coverage	Drainwire Type
Card Reader	Pair(s)	Tape	Bi-Laminate (Alum+Poly)	100%	24 AWG (7x32) TC
Door Contact	Conductor(s)	No Shield
REX/Spare	Conductor(s)	No Shield
Lock Power	Conductor(s)	No Shield

Inner Jacket

Element Description	Element	Material	Nom. Diameter	Ripcord	Color
Card Reader	Pair(s)	PVC - Polyvinyl Chloride	0.211 in (5.36 mm)	Yes	Orange
Door Contact	Conductor(s)	PVC - Polyvinyl Chloride	0.123 in (3.12 mm)	Yes	White
REX/Spare	Conductor(s)	PVC - Polyvinyl Chloride	0.141 in (3.58 mm)	Yes	Blue
Lock Power	Conductor(s)	PVC - Polyvinyl Chloride	0.184 in (4.67 mm)	Yes	Gray

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Diameter	0.469 in (11.9 mm)

Electrical Characteristics

Electricals

Element Description	Element	Nom. Conductor DCR	Nom. Inner Shield DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Shield	Max. Current
Card Reader	Pair(s)	16.3 Ohm/1000ft (53.5 Ohm/km)	14.9 Ohm/1000ft (48.9 Ohm/km)	24 pF/ft (79 pF/m)	43.25 pF/ft (141.9 pF/m)	2 Amps per Conductor at 25oC
Door Contact	Conductor(s)	16.4 Ohm/1000ft (53.8 Ohm/km)		17 pF/ft (56 pF/m)		2.2 Amps per Conductor at 25oC
REX/Spare	Conductor(s)	16.4 Ohm/1000ft (53.8 Ohm/km)		17 pF/ft (56 pF/m)		2.2 Amps per Conductor at 25oC
Lock Power	Conductor(s)	6.5 Ohm/1000ft (21 Ohm/km)		22 pF/ft (72 pF/m)		4 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V (UL CMR)

Mechanical Characteristics

Max. Pull Tension	200 lbs (91 kg)
Bulk Cable Weight	104 lbs/1000ft (155 kg/km)

Temperature

Operating	-5°C to +75°C

Standards and Compliance

Environmental Suitability	Indoor - Riser, Indoor
Flammability / Reaction to Fire	UL1666 Riser
NEC / UL Compliance	Article 800, CMR
CEC / C(UL) Compliance	CMR.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Plenum Number	658AMJ
