Product Number: 6640FD

1Pr 24AWG Shielded Data OSDP CMP

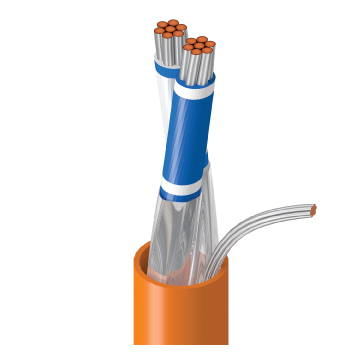

OSDP Reader Cable, 1 Pair 24 AWG stranded (7x32) tinned copper (data) with foam FEP insulation, Beldfoil® shield w/ drain,with Flamarrest® insulation, Plenum, Flamarrest®

Availability: Global
Status: Active

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable Applications	OSDP Readers, RS-485, Serial Data, Access Control

Construction Details

Overall Cable Diameter (Nominal)	0.186 in (4.72 mm)

Conductor

No. of Pairs	1
Size	24 AWG
Stranding	7x32
Material	TC - Tinned Copper
Notes	Twisted Pair Configuration - 120 Ohm RS485

Insulation

Material	FEP - Fluorinated Ethylene Propylene (Foam)
Nom. Thickness	0.025 in (0.64 mm)
Nom. Insulation Diameter	0.074 in (1.9 mm)
Color Code	White/Blue Stripe & Blue/White Stripe

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	24 AWG (7x32) TC

Outer Jacket

Material	Flamarrest®
Nom. Thickness	0.015 in (0.38 mm)
Nom. Diameter	0.186 in (4.72 mm)

Electrical Characteristics

Electricals

Nom. Conductor DCR	24 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	11 pF/ft (36 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	23 pF/ft (75 pF/m)
Nom. Characteristic Impedence	120 Ohm
Nom. Velocity of Prop.	76%

Voltage

UL Voltage Rating	(300 V (CMP))

Mechanical Characteristics

Max. Pull Tension	28 lbs (13 kg)
Bulk Cable Weight	16 lbs/1000ft

Temperature

UL Temperature	60°C
Operating	-20°C to +60°C

Bend Radius

Stationary Min.	1.86 in (47.2 mm)

Standards and Compliance

Environmental Suitability	Indoor - Plenum, Indoor
Flammability / Reaction to Fire	CMP, FT6, NFPA 262
NEC / UL Compliance	Article 800
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Plenum Number	6640FD
