Product Number: 6408MD

1 PR 22AWG SHLD + 8 Cond 20AWG UNSHLD CMP

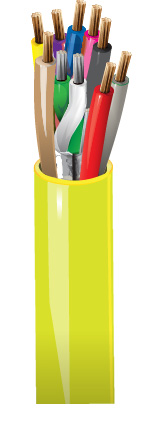

Name: Belden 6408MD
Brand: Belden
SKU: 6408MD

1 Pair 22AWG Shielded Pair (OSDP) + 8 Conductor 20AWG Unshlielded CMP

Ships from and sold by A5 IT.

Specifications

Suitable Applications	Server Cabinet Lock - Data Centers OSDP

Overall Cable Diameter (Nominal)	.290 in (7.37 mm)

Element	No. of Elements	Size	Stranding	Material	Notes
Data Pair(s)	2 (1 Pair)	22 AWG	7x30	TC - Tinned Copper	1 Pair 120 Ohm - OSDP Reader
Power	8	20 AWG	7x28	BC - Bare Copper	8 Conductors For Molex: Power, Lock Power, Tamper

Element	Material	Nom. Thickness	Color Code
Data Pair(s)	FEP - Fluorinated Ethylene Propylene	.025 in (0.64 mm)	White/Green Data Pair
Power	PVC - Polyvinyl Chloride	.009 in (0.23 mm)	Black, Red, Blue, Yellow, Violet, Pink, Gray, Tan

Element	Shield Type	Material	Coverage	Drainwire Type	Notes
Data Pair(s)	Tape	Bi-Laminate (Alum+Poly)	100%	24 AWG (7x32) TC	Drain Inside the Foil
Power	No Shield	Unshielded

Color	Yellow

Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Other (Conds + Shield)	Nom. Characteristic Impedence
Data Pair(s)	16.3 Ohm/1000ft (53.5 Ohm/km)	11.2 pF/ft (36.7 pF/m)	21.8 pF/ft (71.5 pF/m)	120 Ohm
Power	10.2 Ohm/1000ft (33.5 Ohm/km)

UL Voltage Rating	300 V

Max. Pull Tension	104 lb/f
Bulk Cable Weight	42 lbs (19 kg)

UL Temperature	75°C
Operating	0°C to +75°C

Stationary Min.	2.9 in (74 mm)
Installation Min.	2.5 in (64 mm)

Environmental Suitability	Indoor - Plenum
Flammability / Reaction to Fire	NFPA 262, UL 910 (Plenum), FT6
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 800, CMP
CEC / C(UL) Compliance	CMP.
TIA/EIA Compliance	TIA/EIA RS485
European Directive Compliance	EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Notes	Cold environment installation: When installing cables that have been stored at ambient temperatures of 32 degrees Fahrenheit (0 degrees Centigrade) or lower, Belden recommends conditioning of the cable for 12 hours at room temperature prior to individual cable leg
