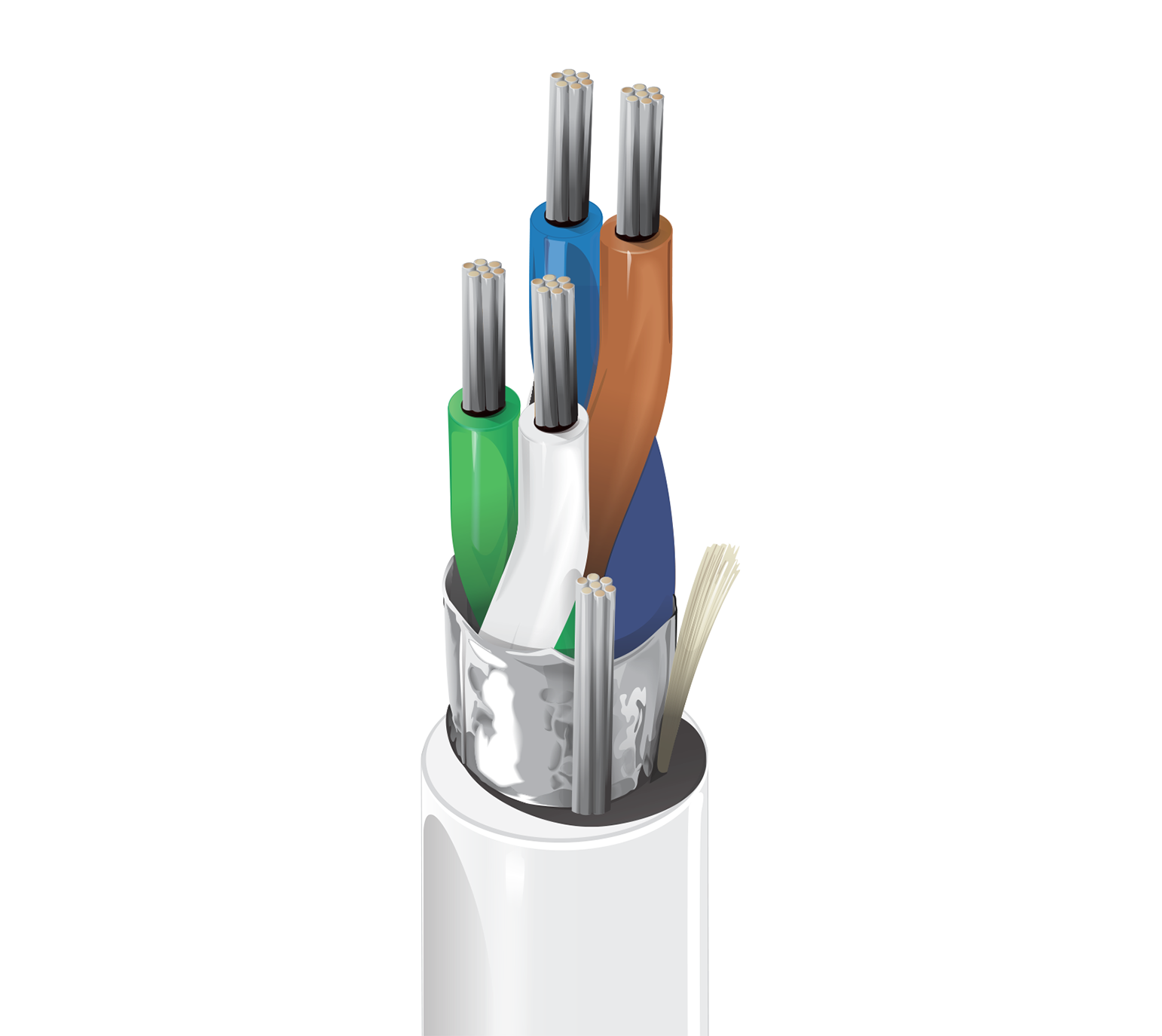

2 Pr #24 STR TC, FEP, Ov Shld OSDP Readers CMP
RS485, OSDP Reader, 2 Pr #24 Str TC, FEP, Overall Shield, CMP
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | RS-485 Serial Data, Dual OSDP Reader Access Control |
|---|
Construction Details
| Outer Jacket1 Table Notes | Flamearrest Plenum Jacket |
|---|
Conductor
| Element | Data Pair(s) |
|---|---|
| No. of Pairs | 2 |
| Size | 24 AWG |
| Stranding | 7x32 |
| Material | TC - Tinned Copper |
| Notes | 2 Pair Construction. Each Pair RS-485, OSDP Reader |
Insulation
| Element | Data Pair(s) |
|---|---|
| Material | FEP - Fluorinated Ethylene Propylene (Foam) |
| Nom. Thickness | .020 in (0.51 mm) |
| Color Code | Pair 1: White, Green, Pair 2: Brown, Blue |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 24 AWG (7x32) TC |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | .016 in (0.41 mm) |
| Nom. Diameter | .260 in (6.60 mm) |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Element | Data Pair(s) |
|---|---|
| Nom. Conductor DCR | 24 Ohm/1000ft (79 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 13.5 pF/ft (44.3 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 24 pF/ft (79 pF/m) |
| Nom. Characteristic Impedence | 120 Ohm |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 49 lbs (22 kg) |
|---|---|
| Bulk Cable Weight | 23 lbs/1000ft (34 kg/km) |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | 0°C to +75°C |
Bend Radius
| Stationary Min. | 1.6 in (41 mm) |
|---|---|
| Installation Min. | 1.6 in (41 mm) |
Standards and Compliance
| Environmental Suitability | Indoor - Plenum, Indoor |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | NFPA 262, UL 910 (Plenum), FT6 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | FT6. |
| TIA/EIA Compliance | TIA/EIA 485-A |
| European Directive Compliance | EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | RS-485 BACNET Temperature Control |
|---|
History
| Update and Revision | Revision Number: 0.87 Revision Date: 11-07-2025 |
|---|
