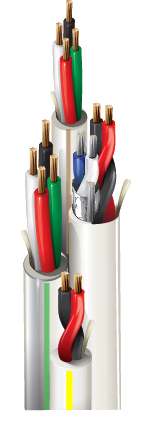

Product Number: 638JMDS

OSDP Access Control Cable, CMP, 14C (OSDP Reader 1Pr-22 Shielded, #18-2, #18-4, #22-4, #16-2), , Banana Peel®

Ships from and sold by A5 IT.

Specifications

Suitable Applications	Access Control, Security System, Power Limited Controls, OSDP Reader
Patent	This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents .

Outer Jacket1 Table Notes	Banana Peel
Overall Cable Diameter (Nominal)	.468 in (11.9 mm)

Element Description	Element	No. of Elements	Size	Stranding	Material	Notes
Card Reader	Data Pair	1 Pair	22 AWG	7x30	TC - Tinned Copper	Data Pair - 1 Pr. 22AWG Shielded, RS-485 - Reader
	Power	2	18 AWG	7x26	BC - Bare Copper	Power Pair - 2C 18AWG Unshielded
Door Contact	Conductor(s)	4	22 AWG	7x30	BC - Bare Copper
REX/Spare	Conductor(s)	4	18 AWG	7x26	BC - Bare Copper
Lock Power	Conductor(s)	2	16 AWG	19x27	BC - Bare Copper

Element Description	Element	Material	Nom. Thickness	Color Code
Card Reader	Data Pair(s)	FEP - Fluorinated Ethylene Propylene (Foam)	.025 in (0.64 mm)	Blue, White
	Power	PVC - Polyvinyl Chloride	.012 in (0.30 mm)	Black, Red
Door Contact	Conductor(s)	PVC - Polyvinyl Chloride	.008 in (0.20 mm)	Black, Red, White, Green
REX/Spare	Conductor(s)	PVC - Polyvinyl Chloride	.008 in (0.20 mm)	Black, Red, White, Green
Lock Power	Conductor(s)	PVC - Polyvinyl Chloride	.010 in (0.25 mm)	Black, Red

Element Description	Element	Shield Type	Material	Coverage	Drainwire Type
Card Reader	Data Pair(s)	Tape	Bi-Laminate (Alum+Poly)	100%	24 AWG (7x32) TC
	Power	No Shield
Door Contact	Conductor(s)	No Shield
REX/Spare	Conductor(s)	No Shield
Lock Power	Conductor(s)	No Shield

Element	Material	Nom. Thickness	Nom. Diameter	Ripcord	Color
Card Reader	PVC - Polyvinyl Chloride	.020 in (0.51 mm)	.221 in (5.61 mm)	Yes	White
Door Contact	PVC - Polyvinyl Chloride	.015 in (0.38 mm)	.139 in (3.53 mm)	Yes	White/Brown Stripe
REX/Spare	PVC - Polyvinyl Chloride	.015 in (0.38 mm)	.189 in (4.80 mm)	Yes	White/Green Stripe
Lock/Power	PVC - Polyvinyl Chloride	.015 in (0.38 mm)	.176 in (4.47 mm)	Yes	White/Yellow Stripe

Material	Banana Peel (No Overall Jacket)
Nom. Diameter	.468 in (11.9 mm)

Element Description	Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Other (Conds + Shield)	Nom. Characteristic Impedence
Card Reader	Data Pair(s)	16.8 Ohm/1000ft (55.1 Ohm/km)	13 pF/ft (43 pF/m)	24 pF/ft (79 pF/m)	120 Ohm
Card Reader	Power	6.2 Ohm/1000ft (20 Ohm/km)
Door Contact	Conductor(s)	17 Ohm/1000ft (56 Ohm/km)
REX/Spare	Conductor(s)	6.2 Ohm/1000ft (20 Ohm/km)
Lock Power	Conductor(s)	4.2 Ohm/1000ft

UL Voltage Rating	300 V

Max. Pull Tension	206 lbs (93.4 kg)
Bulk Cable Weight	108 lbs (49.0 kg)

UL Temperature	75°C
Operating	0°C to +75°C

Installation Min.	4.6 in (120 mm)

Environmental Suitability	Indoor - Plenum Indoor, Indoor
Flammability / Reaction to Fire	NFPA 262, UL 910 (Plenum), FT6
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 800, CMP
CEC / C(UL) Compliance	CMP.
TIA/EIA Compliance	RS485
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Notes	Cold environment installation: When installing cables that have been stored at ambient temperatures of 32 degrees Fahrenheit (0 degrees Centigrade) or lower, Belden recommends conditioning of the cable for 12 hours at room temperature prior to individual cable leg separation
