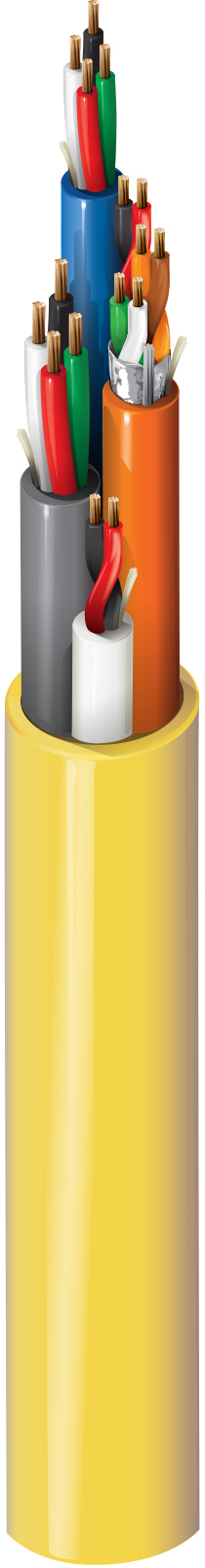

Product Number: 658AMJ

Access Control, 16c (#22-3pr, #18-4c, #22-4c, #22-2c), Only Card Reader Pairs Shielded, Outer Jacket, CMP

Access Control Cable, Plenum-CMP, 3-22 AWG pairs, 4-18 AWG conductors, 4-22 AWG conductors, 2-22 AWG conductors, All conductors stranded bare copper with Flamarrest® insulation, 3-22 AWG pairs have overall Beldfoil® shield and Flamarrest® jacket, overall Flamarrest® jacket

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

658AMJ is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Length	UPC	Order
658AMJ 0091000	White	1,000 ft	612825487807	Order online
658AMJ 0041000	Yellow	1,000 ft	612825178637	Order online

Specifications

Product Overview

Suitable Applications	Access Control, Security System, Power Limited Controls

Construction Details

Overall Cable Diameter (Nominal)	0.455 in (11.6 mm)

Conductor

Element Description	Element	No. of Elements	Size	Stranding	Material
Card Reader	Pair(s)	3	22 AWG	7x30	BC - Bare Copper
Door Contact	Conductor(s)	2	22 AWG	7x30	BC - Bare Copper
REX/Spare	Conductor(s)	4	22 AWG	7x30	BC - Bare Copper
Lock Power	Conductor(s)	4	18 AWG	7x26	BC - Bare Copper

Insulation

Element Description	Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Card Reader	Pair(s)	PVC - Polyvinyl Chloride	0.009 in (0.23 mm)	0.047 in (1.2 mm)	Black & Red, White & Green, Brown & Orange
Door Contact	Conductor(s)	PVC - Polyvinyl Chloride	0.009 in (0.23 mm)	0.047 in (1.2 mm)	Black, Red
REX/Spare	Conductor(s)	PVC - Polyvinyl Chloride	0.009 in (0.23 mm)	0.047 in (1.2 mm)	Black, Red, White, Green
Lock Power	Conductor(s)	PVC - Polyvinyl Chloride	0.010 in (0.25 mm)	0.066 in (1.7 mm)

Inner Shield

Element Description	Element	Shield Type	Material	Coverage	Drainwire Type
Card Reader	Pair(s)	Tape	Bi-Laminate (Alum+Poly)	100%	24 AWG (7x32) TC
Door Contact	Conductor(s)	No Shield
REX/Spare	Conductor(s)	No Shield
Lock Power	Conductor(s)	No Shield

Inner Jacket

Element Description	Element	Material	Nom. Thickness	Nom. Diameter	Ripcord	Color
Card Reader	Pair(s)	PVC - Polyvinyl Chloride	0.015 in (0.38 mm)	0.216 in (5.49 mm)	Yes	Orange
Door Contact	Conductor(s)	PVC - Polyvinyl Chloride	0.015 in (0.38 mm)	0.124 in (3.15 mm)	Yes	White
REX/Spare	Conductor(s)	PVC - Polyvinyl Chloride	0.015 in (0.38 mm)	0.189 in (4.80 mm)	Yes	Blue
Lock Power	Conductor(s)	PVC - Polyvinyl Chloride	0.015 in (0.38 mm)	0.189 in (4.80 mm)	Yes	Gray

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.020 in (0.51 mm)
Nom. Diameter	0.455 in (11.6 mm)
Ripcord	Yes

Electrical Characteristics

Nom Outer Shield DCR	18.54 Ohm/1000ft (60.83 Ohm/km)

Electricals

Element Description	Element	Nom. Conductor DCR	Nom. Inner Shield DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Shield	Max. Current
Card Reader	Pair(s)	16.3 Ohm/1000ft (53.5 Ohm/km)	16.19 Ohm/1000ft (53.12 Ohm/km)	33 pF/ft (110 pF/m)	60 pF/ft (200 pF/m)	2.2 Amps per Conductor at 25oC
Door Contact	Conductor(s)	16.4 Ohm/1000ft (53.8 Ohm/km)		27 pF/ft (89 pF/m)		2.2 Amps per Conductor at 25oC
REX/Spare	Conductor(s)	16.4 Ohm/1000ft (53.8 Ohm/km)		27 pF/ft (89 pF/m)		2.2 Amps per Conductor at 25oC
Lock Power	Conductor(s)	6.5 Ohm/1000ft (21 Ohm/km)		34 pF/ft (110 pF/m)		4 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V (CMP)

Mechanical Characteristics

Max. Pull Tension	222 lbs (101 kg)
Bulk Cable Weight	102 lbs/1000ft (152 kg/km)

Temperature

UL Temperature	75°C
Operating	0°C to +75°C

Bend Radius

Stationary Min.	4.55 in (116 mm)
Installation Min.	4.55 in (116 mm)

Standards and Compliance

Environmental Suitability	Indoor - Plenum, Indoor
Sustainability	Product LensTM, Environmental Product Declaration (EPD) Available
Flammability / Reaction to Fire	NFPA 262, UL 910 (Plenum), FT6
NEC / UL Compliance	Article 800, CMP
CEC / C(UL) Compliance	CMP.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Non-Plenum Number	558AMJ
