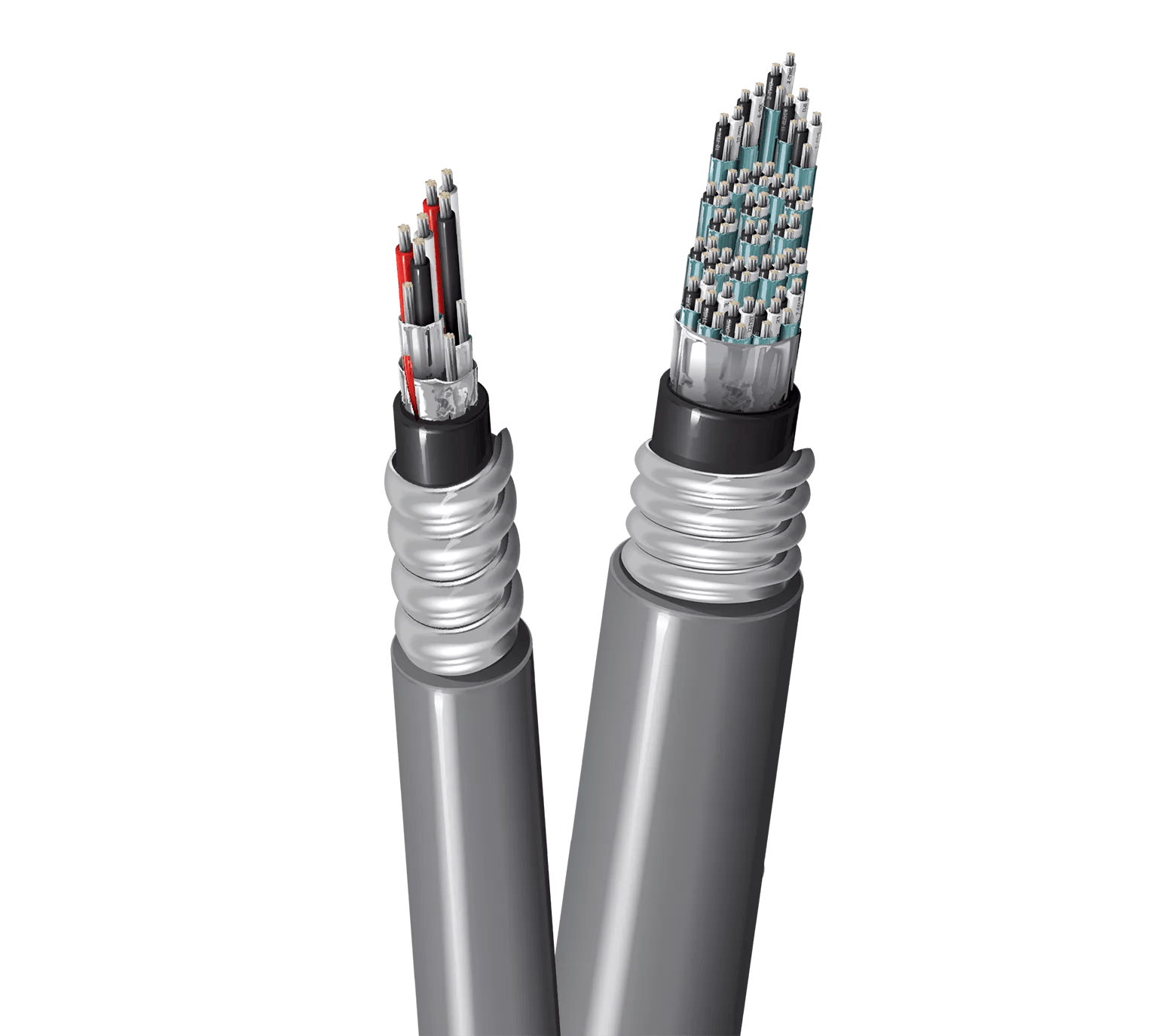

ACIC Cable

Belden offers a complete line of armored, CSA-rated control, instrumentation and power cables—ACIC Cables—suitable for use in 300V, 600V and some 1000V environments. Find the right ACIC solution for your needs with Belden’s wide range of conductor and pair counts, insulation and jacket options (also available unarmored).

89 product families

Features & Benefits

No Conduit or Burial Piping: ACIC eliminates the need for extra installation materials
Protect Your Signal: Superior mechanical protection in underground use or hazardous settings
Hazard-Matched Design: Resists sunlight, chemicals and oil to keep signals going strong
CSA Rated: Designed specifically to meet CSA22.2 Type CIC standards and tested against applicable North American requirements

Sort

89 product families

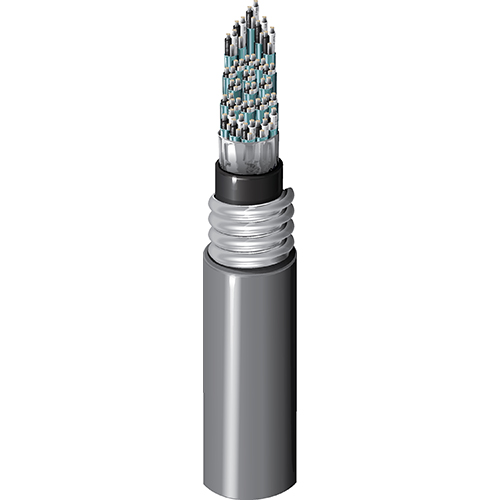

24500

ACIC 600V, 1 Pr #16 Str TC, PVC Ins E1, OS, PVC Jkt, AIA Armor, PVC Jkt, 105C Dry 75C Wet CSA HLABCD SUN RES -40C

1 · 16 AWG · TC - Tinned Copper · PVC - Polyvinyl Chloride

8 items

23509

ACIC 300V, 4 Pr #16 Str TC, PVC Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 105C Dry 75C Wet CSA HLABCD SUN RES -40C

4 · 16 AWG · TC - Tinned Copper · PVC - Polyvinyl Chloride

7 items

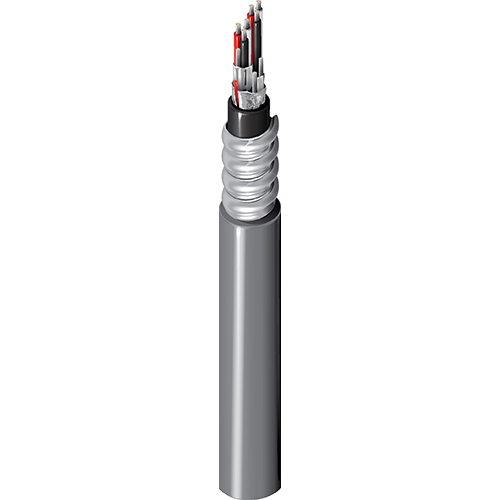

23507

ACIC 300V, 1 Tri #16 Str TC, PVC Ins E1, OS, PVC Jkt, AIA Armor, PVC Jkt, 105C Dry 75C Wet CSA HLBCD SUN RES -40C

1 · 16 AWG · TC - Tinned Copper · PVC - Polyvinyl Chloride

6 items

23527

ACIC 300V, 2 Pr #16 Str TC, PVC Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 105C Dry 75C Wet CSA HLABCD SUN RES -40C

2 · 16 AWG · TC - Tinned Copper · PVC - Polyvinyl Chloride

6 items

24502

ACIC 600V, 4 Pr #16 Str TC, PVC Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 105C Dry 75C Wet CSA HLABCD SUN RES -40C

4 · 16 AWG · TC - Tinned Copper · PVC - Polyvinyl Chloride

5 items

24511

ACIC 600V, 1 Pr #18 Str TC, PVC Ins E1, OS, PVC Jkt, AIA Armor, PVC Jkt, 105C Dry 75C Wet CSA HLABCD SUN RES -40C

1 · 18 AWG · TC - Tinned Copper · PVC - Polyvinyl Chloride

5 items

23500D

ACIC 300V, 6 Pr #16 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

6 · 16 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

4 items

24500D

ACIC 600V, 1 Pr #16 Str TC, XLPE Ins E1, OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

1 · 16 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

4 items

23530D

ACIC 300V, 4 Pr #18 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

4 · 18 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

3 items

23539D

ACIC 300V, 16 Pr #16 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

16 · 16 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

3 items

29005

600V ACIC, (6) 16 AWG (7x24) BC+Grd, XLPE/PVC/PVC, AIA Armor

PVC - Polyvinyl Chloride

3 items

23501D

ACIC 300V, 1 Pr #16 Str TC, XLPE Ins E1, OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

1 · 16 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

2 items

23509D

ACIC 300V, 4 Pr #16 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

4 · 16 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

2 items

23511D

ACIC 300V, 2 Pr #18 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

2 · 18 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

2 items

23515D

ACIC 300V, 4 Tri #18 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLBCD SUN RES -40C

TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset) · PVC - Polyvinyl Chloride · 300 V RMS

2 items

23523D

ACIC 300V, 8 Tri #18 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLBCD SUN RES -40C

8 · 18 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

2 items

23524D

ACIC 300V, 12 Pr #18 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

12 · 18 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

2 items

23527D

ACIC 300V, 2 Pr #16 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

2 · 16 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

2 items

23529D

ACIC 300V, 6 Tri #16 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLBCD SUN RES -40C

6 · 16 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

2 items

23531D

ACIC 300V, 8 Pr #18 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

8 · 18 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

2 items

23533D

ACIC 300V, 1 Pr #18 Str TC, XLPE Ins E1, OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

1 · 18 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

2 items

23541D

ACIC 300V, 12 Tri #16 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLBCD SUN RES -40C

12 · 16 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

2 items

24503D

ACIC 600V, 8 Pr #16 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset) · PVC - Polyvinyl Chloride · 600 V RMS

2 items

29006

600V ACIC, (12) 16 AWG (7x24) BC+Grd, XLPE/PVC/PVC, AIA Armor

PVC - Polyvinyl Chloride

2 items

23505D

ACIC 300V, 1 Tri #16 Str TC, XLPE Ins E1, OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry SUN RES -40C

1 · 18 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

1 item

23507D

ACIC 300V, 1 Tri #16 Str TC, XLPE Ins E1, OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Dry/Wet CSA HLBCD SUN RES -40C

1 · 16 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

1 item

23508D

ACIC 300V, 6 Tri #18 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLBCD SUN RES -40C

6 · 18 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

1 item

23510D

ACIC 300V, 8 Pr #16 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

8 · 16 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

1 item

23542D

ACIC 300V, 24 Pr #18 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

24 · 18 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

1 item

24501D

ACIC 600V, 1 Tri #16 Str TC, XLPE Ins E1, OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLBCD SUN RES -40C

1 · 16 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

1 item

24505D

ACIC 600V, 2 Pr #16 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

2 · 16 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

1 item

24507D

ACIC 600V, 2 Tri #16 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, Blk PVC Jkt, 90C Wet 105C Dry CSA HLBCD SUN RES -40C

TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset) · PVC - Polyvinyl Chloride · 600 V RMS

1 item

29004

600V ACIC, (3) 16 AWG (7x24) BC+Grd, XLPE/PVC/PVC, AIA Armor

PVC - Polyvinyl Chloride

1 item

22603D

CIC 300V, 1 Tri #16 Str BC, XLPE Ins E1, OS, Blk PVC Jkt, 90C Dry/Wet SUN RES -25C

22635

CIC 300V, 8 Pr #18 Str TC, PVC Ins E1, IS/OS, Blk PVC Jkt, 105C Dry 75C Wet SUN RES -25C

TC - Tinned Copper · PVC - Polyvinyl Chloride

22645

CIC 300V, 1 Pr #18 Str TC, PVC Ins E1, OS, Blk PVC Jkt, 105C Dry 75C Wet SUN RES -25C

TC - Tinned Copper · PVC - Polyvinyl Chloride · 300 V RMS

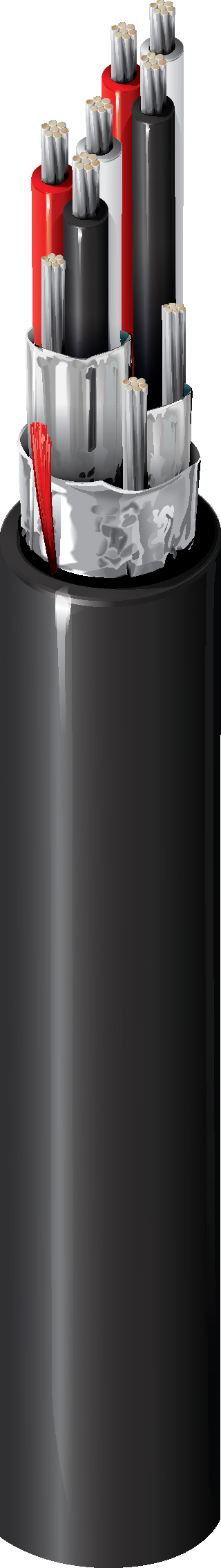

22677

CIC 300V, 1 Tri #18 Str TC, PVC Ins E1, OS, Blk PVC Jkt, 105C Dry 75C Wet SUN RES -25C

TC - Tinned Copper · PVC - Polyvinyl Chloride

23514D

ACIC 300V, 4 Pr #20 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

4 · 20 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

23516D

ACIC 300V, 2 Tri #18 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLBCD SUN RES -40C

2 · 18 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

23519D

ACIC 300V, 16 Pr #18 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

16 · 18 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

23520D

ACIC 300V, 4 Tri #16 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Dry/Wet CSA HLBCD SUN RES -40C

4 · 16 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

23522D

ACIC 300V, 2 Tri #16 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Dry/Wet CSA HLBCD SUN RES -40C

2 · 16 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

23525D

ACIC 300V, 12 Pr #16 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

12 · 16 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

23526D

ACIC 300V, 8 Tri #16 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLBCD SUN RES -40C

8 · 16 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

23528D

ACIC 300V, 6 Pr #18 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

6 · 18 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)

23532D

ACIC 300V, 16 Pr #20 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset) · PVC - Polyvinyl Chloride

23534D

ACIC 300V, 2 Pr #20 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset) · PVC - Polyvinyl Chloride

23538D

ACIC 300V, 24 Pr #16 Str TC, XLPE Ins E1, IS/OS, PVC Jkt, AIA Armor, PVC Jkt, 90C Wet 105C Dry CSA HLABCD SUN RES -40C

24 · 16 AWG · TC - Tinned Copper · XLP, XLPO, XLPE (Thermoset)
