Armored Data Cable
Upgrade your peace of mind with the superior reliability of Belden Armored Fieldbus Cables. Choose from a variety of armoring options, including aluminum interlock, steel interlock, bronze braid and more. Ensure maximum protection and performance with cables designed to withstand the toughest environments with an extra layer of safeguarding.
Features & Benefits
- Maximize Uptime: Additional layer of protection prevents cable damage that leads to downtime
- Strong Construction: Built to withstand crushing, impact, rodents and fluid ingress
- Reduce Labor & Material Costs: No need to use conduit since the cable offers its own built-in protection
19 product families
70100E
Profibus PA, 1PR #18 Str TC, PO ins, OS, PVC jkt, 300V
18 · TC - Tinned Copper · PE - Polyethylene · PVC - Polyvinyl Chloride
6 items
70101E
Profibus DP, 1PR #22 Sol BC, PO ins, F/B, PVC jkt,
22 · BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
6 items70101LS
Profibus DP, 1PR #22 Sol BC, PO ins, F/B, LSZH/SWA/LSZH Jkt, 300 V
22 · BC - Bare Copper · PE - Polyethylene (Foam) · LSZH - Low Smoke Zero Halogen (Flame Retardant)
6 items70102E
Profibus DP, 1PR #22 Str BC, PO ins, F/B, PVC jkt,
22 · BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
6 items

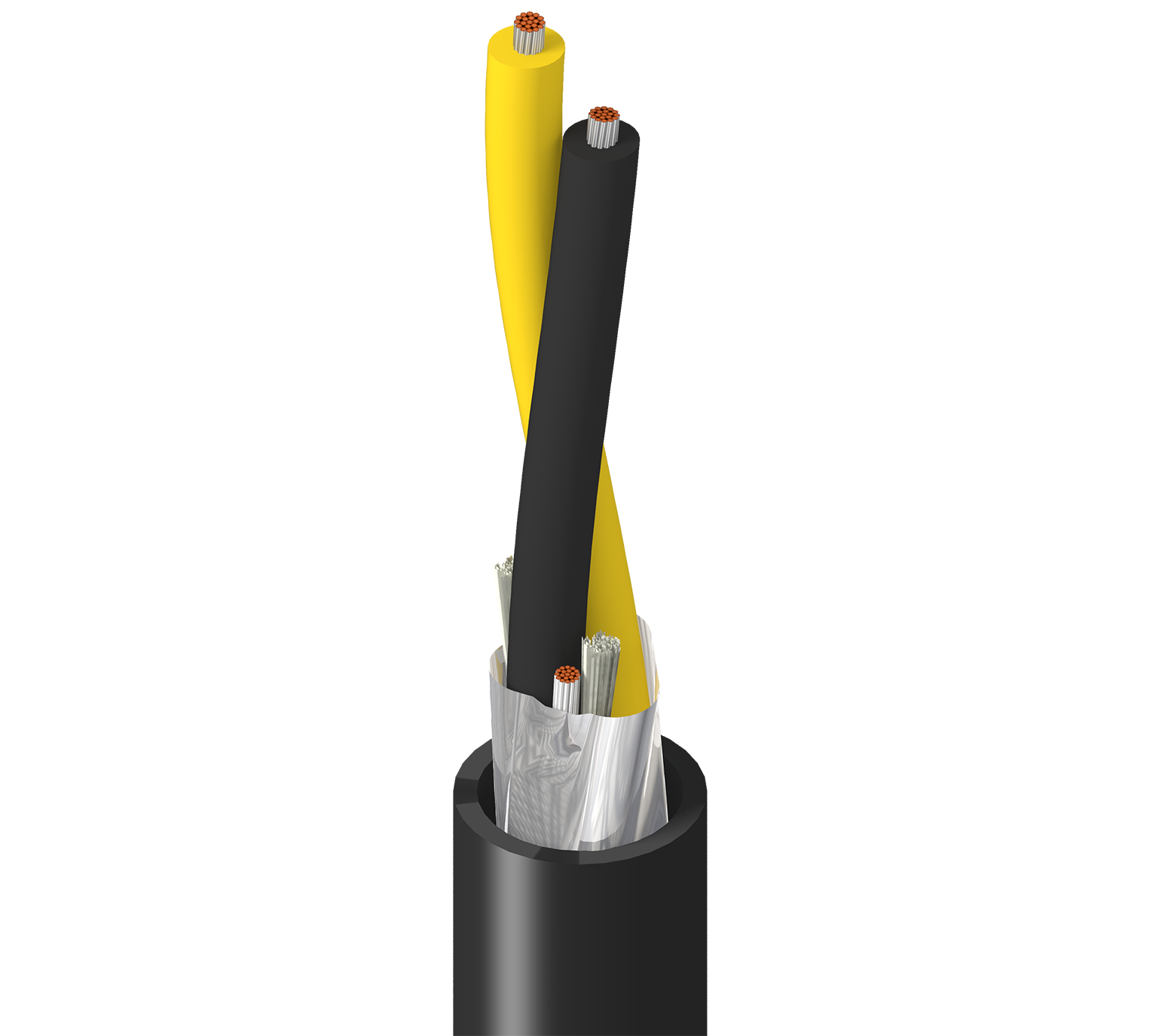

9182
150Ω Twinax, 1 Pr #22 Str TC, FPE Ins, OA Duofoil®, PVC Jkt, CMX
2 · 22 AWG · TC - Tinned Copper · PE - Polyethylene (Foam)
4 items
9502LS
RS-232, 2PR #24 Str TC, PO ins, OS, LSZH Jkt, SWA, 300 V
24 · TC - Tinned Copper · PE - Polyethylene · LSZH - Low Smoke Zero Halogen (Flame Retardant)
4 items

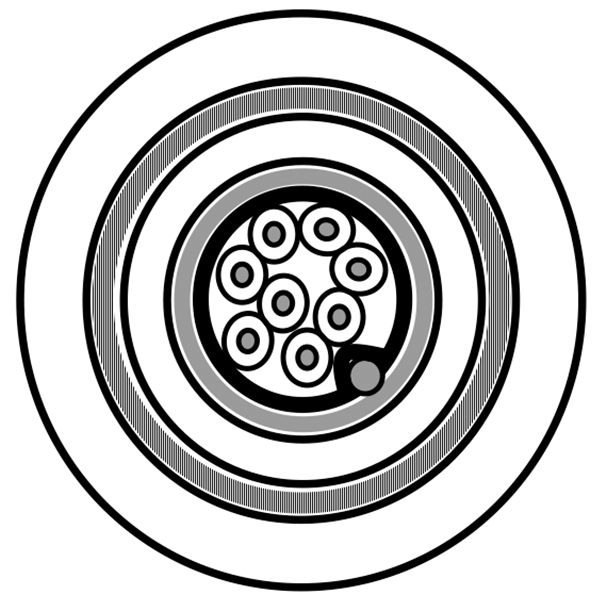

9844LS
RS-485, 4PR #24 Str TC, PO ins, F/B, LSZH Jkt, 300V, SWA
4 · 24 AWG · TC - Tinned Copper · PE - Polyethylene
4 items70105PU
Profibus DP, 1PR #24 Str BC, PO ins, F/B/F, PUR jkt, IEC 61158-2, Trailing
24 · BC - Bare Copper · PE - Polyethylene (Foam) · PUR - Polyurethane
4 items
89182
150Ω Twinax, 1 Pr #22 Str TC, FFEP Ins, OA DF, FEP Jkt, CMP
22 AWG · TC - Tinned Copper · FEP - Fluorinated Ethylene Propylene (Foam) · FEP - Fluorinated Ethylene Propylene
4 items

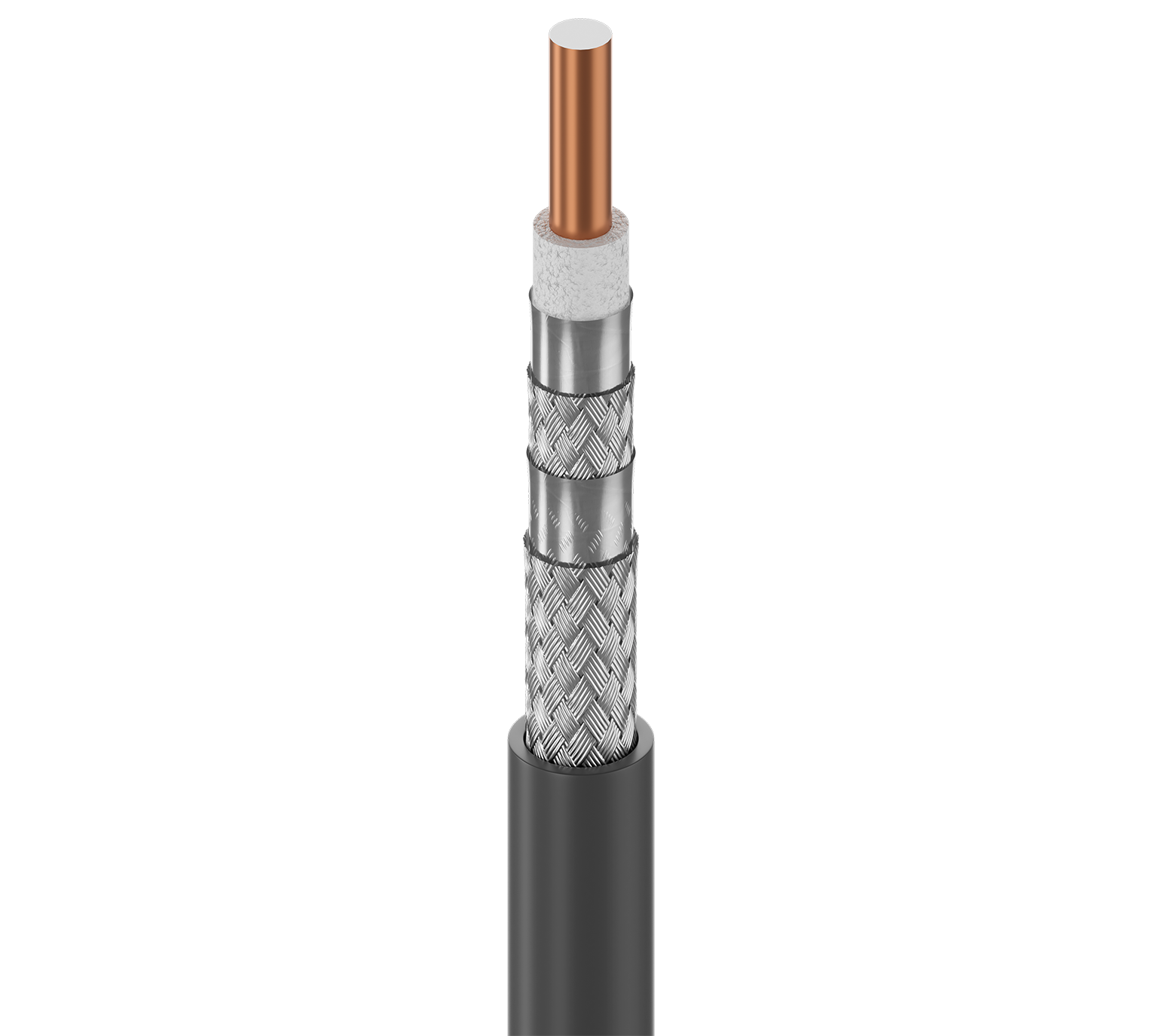

3093A
ControlBusTM, Coax RG-6, #18 Sol BCCS, FFEP Ins, QUAD AL Shld, PVDF Jkt, CMP High Temp 150C
18 AWG · BCCS - Bare Copper Covered Steel · FEP - Fluorinated Ethylene Propylene (Foam) · PVDF - Polyvinylidene Fluoride
3 items

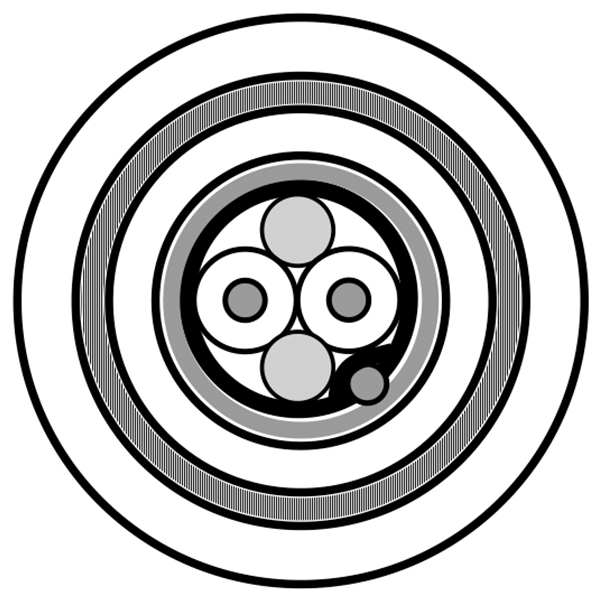

9463LS
Blue Hose, 1PR #20 Str TC, PO ins, F/B, LSZH Jkt,SWA
20 · TC - Tinned Copper · PE - Polyethylene · LSZH - Low Smoke Zero Halogen (Flame Retardant)
3 items

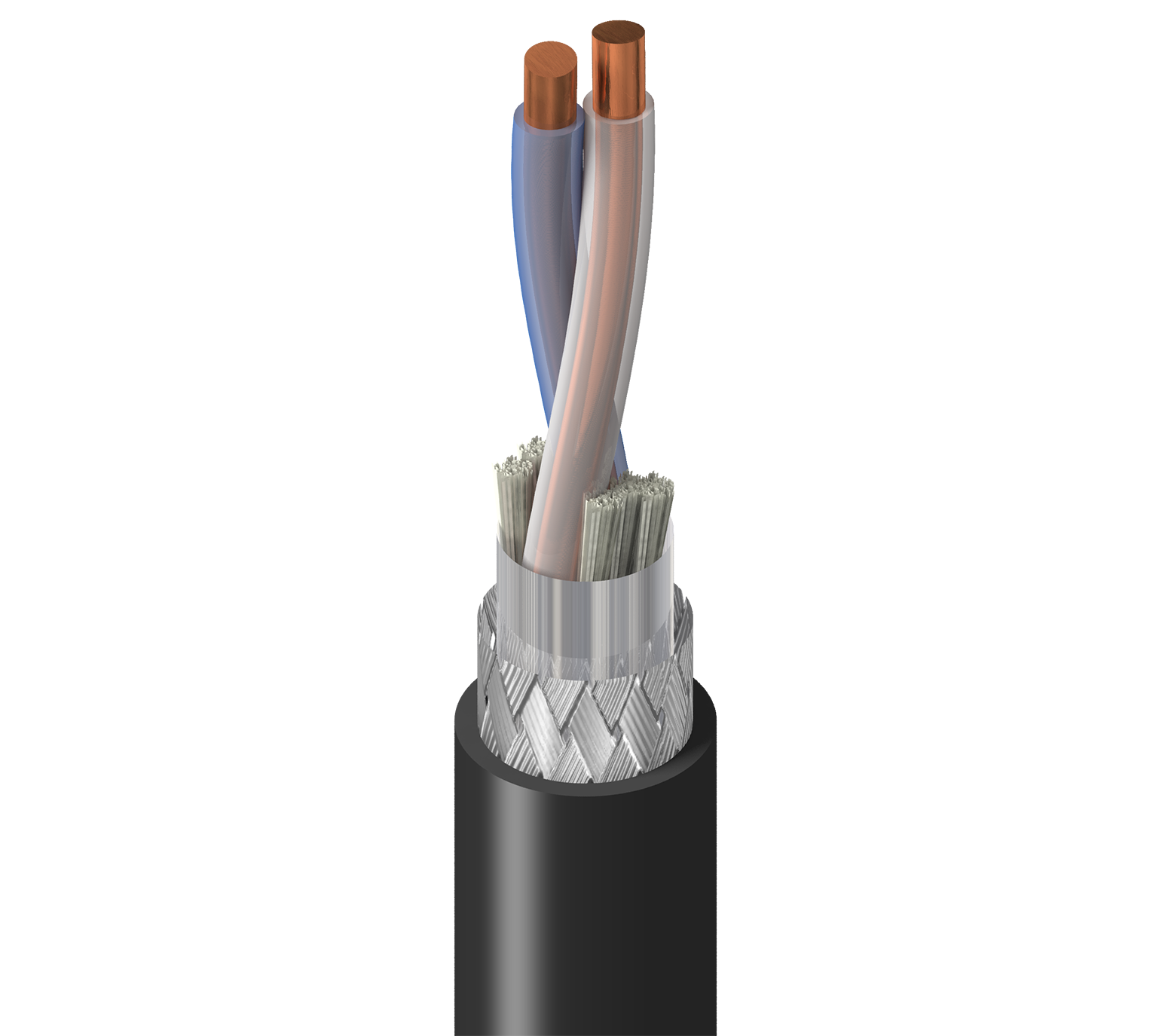

9860
Twinax 124Ω, 1 Pr #16 Sol BC, PO Ins, OA DF+TC Brd, PVC Jkt, CMX
BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
3 items
3073F
DataTray® 100Ω Twinax, 1 Pr #18 Str TC, PP Ins, OS+TC Brd, PVC Jkt, TC, PLTC, ITC, CMG
1 · 18 AWG · TC - Tinned Copper · PP - Polypropylene
2 items
3077ELS
Fieldbus, 1PR #22 Str TC, PO ins, OS, LSZH Jkt, 300V SWA
22 · TC - Tinned Copper · PE - Polyethylene · LSZH - Low Smoke Zero Halogen (Flame Retardant)
2 items3077ENH
Fieldbus, 1PR #22 Str TC, PO ins, OS, LSZH Jkt, 300 V
22 · TC - Tinned Copper · PE - Polyethylene · LSZH - Low Smoke Zero Halogen (Flame Retardant)
1 item70200E
Profibus PA, 1PR #18 Str TC, PO ins, OS, PVC jkt, 30 V UL AWM 2464
18 · TC - Tinned Copper · PE - Polyethylene · PVC - Polyvinyl Chloride
1 item
139463
Blue Hose®, 1 Pr #20 Str TC, PE Ins Blu, Clr, Foil+TC Braid Shld, PVC Jkt, SIA Armor, PVC Jkt, CM
1 · 20 AWG · TC - Tinned Copper · PE - Polyethylene
189463
Blue Hose®, 1 Pr #20 Str TC, PE Ins Blu, Clr, Foil+TC Braid Shld, PVC Jkt, CCA Armor, PVC Jkt, PLTC
1 · 20 AWG · TC - Tinned Copper · PE - Polyethylene
123086A
DeviceBus® for Honeywell SDS, 2 Pr #16+20 Str TC, PVC+FPE Ins, IS, PVC Jkt, AIA, PVC Jkt, CL2
PVC - Polyvinyl Chloride
