RS-232, 2PR #24 Str TC, PO ins, OS, LSZH Jkt, SWA, 300 V
RS-232, 2 Pair AWG 24 Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Foil(s) or Copper Tape(s) shielding, LSZH / FRNC jacket , 300 V
- Availability
- Global
- Status
- Active
- Orderable items
- 4
Part numbers
9502LS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| 9502LS.00305 | Black | Reel | 305 m | 8719605020949 | Order online |
| 9502LS.K0305 | Black | Reel | 305 m | 8719605020963 | Order online |
| 9502LS.00500 | Black | Reel | 500 m | 8719605020956 | Order online |
| 9502LS.001000 | Black | Reel | 1,000 m | 8719605020932 | Order online |
Specifications
Product Overview
| Suitable Applications | RS-232 Instrumentation and computer cable; For EIA RS-232 data transmission applications |
|---|

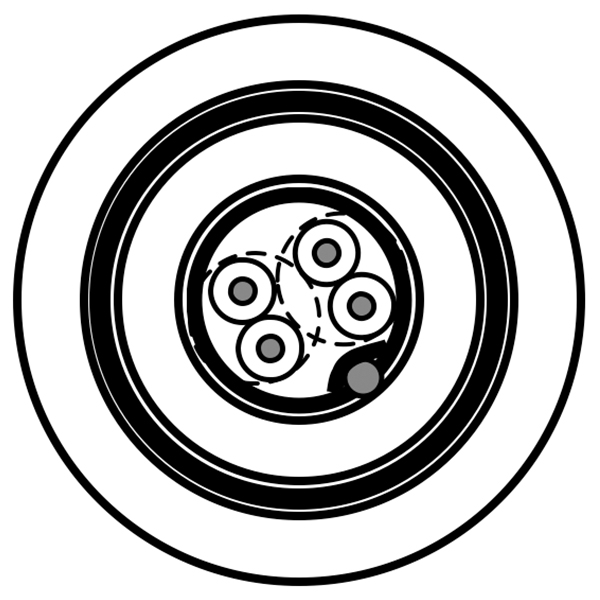

Construction Details
Conductor
| Size | 24 |
|---|---|
| Stranding | 7x32 |
| Material | TC - Tinned Copper |
Insulation
| Material | PE - Polyethylene |
|---|---|
| Nom. Insulation Diameter | 1.12 mm (0.0441 in) |
| Color Code | Black & Red, Black & White |
Inner Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
Inner Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Thickness | 0.9 mm (0.035 in) |
| Nom. Diameter | 5.81 mm (0.229 in) |
| Color | Chrome (RAL 7037) |
Armor
| Armor Type & Material | SWA - Steel Wire Armor |
|---|---|
| Armor Thickness | 0.9 mm |
| Coverage | Min. 95% |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Thickness | 1.3 mm (0.051 in) |
| Nom. Diameter | 10 mm (0.39 in) |
Electrical Characteristics
| Nom Outer Shield DCR | 55.8 Ohm/km (17.0 Ohm/1000ft) |
|---|
Electricals
| Nom. Conductor DCR | 78.7 Ohm/km (24.0 Ohm/1000ft) |
|---|---|
| Nom. Capacitance Cond-to-Cond | 98.4 pF/m (30.0 pF/ft) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 164 pF/m (50.0 pF/ft) |
| Nom. Characteristic Impedence | 75 Ohm |
| Max. Current | 1.76 Amps per Conductor |
Mechanical Characteristics
Temperature
| Installation | -15°C To +80°C |
|---|---|
| Storage | -45°C To +80°C |
Bend Radius
| Installation Min. | 150 mm (5.9 in) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor Indoor/Outdoor Outdoor Indoor/Outdoor - Euroclass Eca, Sunlight Resistance, Oil Resistance - IRM 902 70°Cx4h, Oil Resistance - IEC 60811-404 |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-3-24 |
| CENELEC Compliance | EN 50290-2-20 |
| European Halogen Free Standards | IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60% |
History
| Update and Revision | Revision Number: 0.229 Revision Date: 07-23-2026 |
|---|
Resources
Related armored data cable
123086A
DeviceBus® for Honeywell SDS, 2 Pr #16+20 Str TC, PVC+FPE Ins, IS, PVC Jkt, AIA, PVC Jkt, CL2
PVC - Polyvinyl Chloride
139463
Blue Hose®, 1 Pr #20 Str TC, PE Ins Blu, Clr, Foil+TC Braid Shld, PVC Jkt, SIA Armor, PVC Jkt, CM
1 · 20 AWG · TC - Tinned Copper · PE - Polyethylene

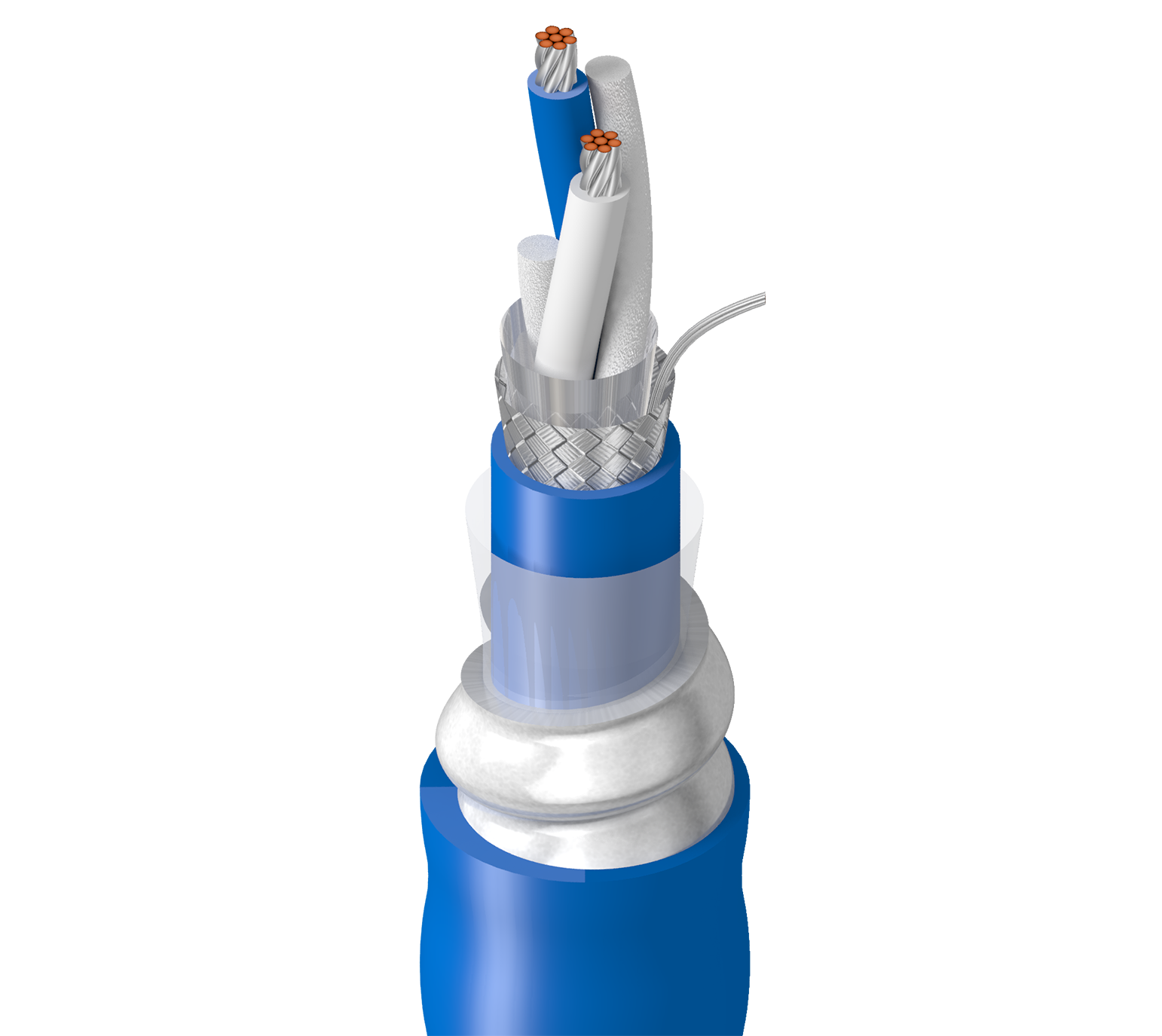

189463
Blue Hose®, 1 Pr #20 Str TC, PE Ins Blu, Clr, Foil+TC Braid Shld, PVC Jkt, CCA Armor, PVC Jkt, PLTC
1 · 20 AWG · TC - Tinned Copper · PE - Polyethylene

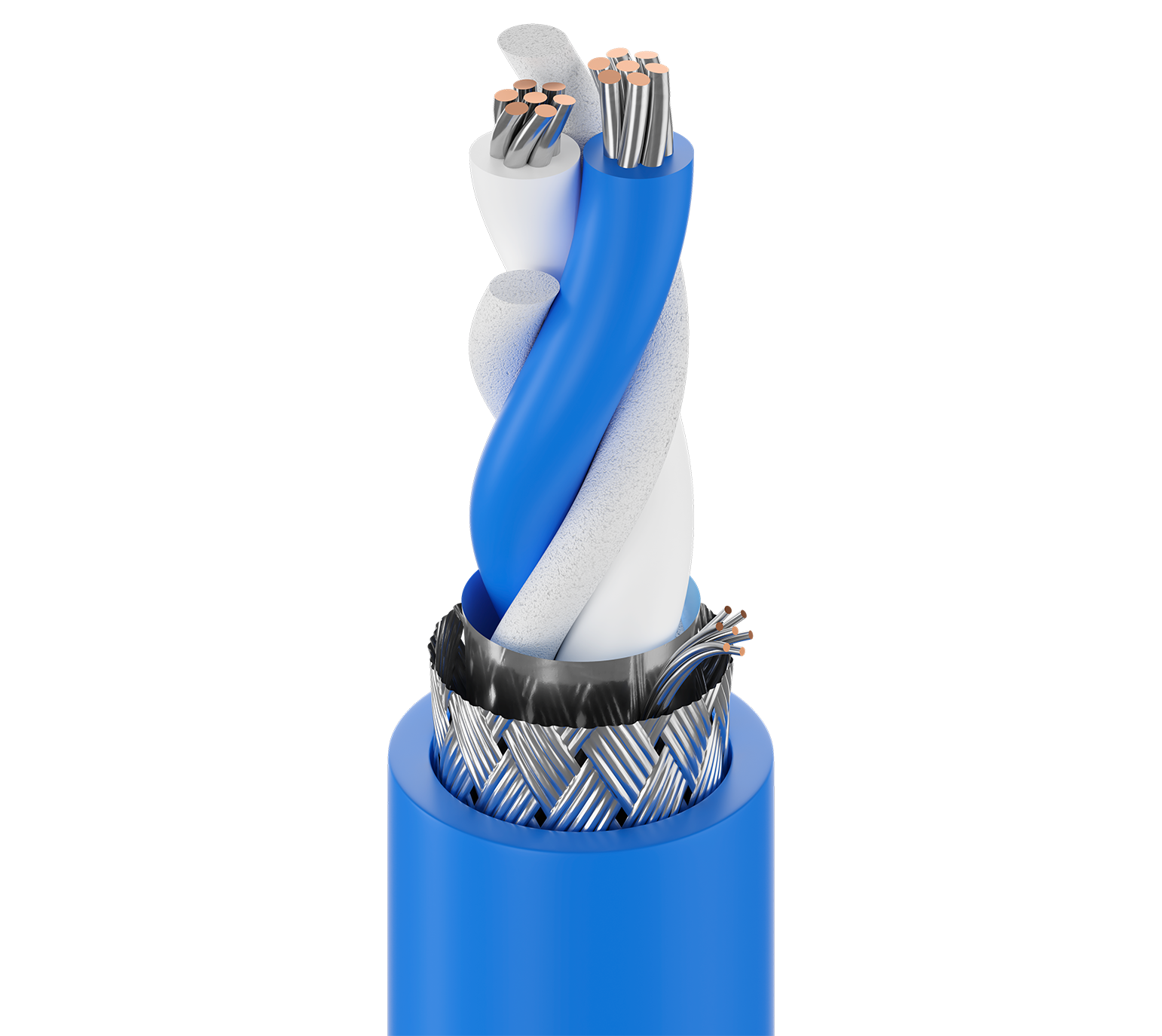

3073F
