Blue Hose®, 1 Pr #20 Str TC, PE Ins Blu, Clr, Foil+TC Braid Shld, PVC Jkt, CCA Armor, PVC Jkt, PLTC
Blue Hose® for Data Highway Plus, 1 Pair 20AWG (7x28) Tinned Copper, PE Insulation Blue & Clear, Overall Beldfoil®+Tinned Copper Braid(55%) Shield, PVC Inner Jacket, CCA Interlock Armor, Blue PVC Outer Jacket, PLTC
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | exposure to rodent, crush, or cut through force, harsh environment, Allen Bradley Data Highway communication interface between PLC processors, I/O devices, operator interfaces, computers and other intelligent devices, PLC processor interlocking, peer-to-peer messaging, remote programming, troubleshooting, I/O updates, etc. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.515 in (13.1 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 20 AWG |
| Stranding | 7x28 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PE - Polyethylene |
| Nom. Thickness | 0.019 in (0.48 mm) |
| Color Code | Clear & Blue |
| Notes | Twinax with rod fillers |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 20 AWG (7x28) TC |
| Braid | Tinned Copper (TC) | 55% |
Inner Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 0.238 in (6.05 mm) |
Armor
| Armor Type & Material | CCAA - Continuously Corrugated Aluminum Armor |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.050 in (1.3 mm) |
| Nom. Diameter | 0.515 in (13.1 mm) |
Electrical Characteristics
| Nom Outer Shield DCR | 4.1 Ohm/1000ft (13 Ohm/km) |
|---|
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 9.5 Ohm/1000ft (31 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 19.7 pF/ft (64.6 pF/m) |
| Nom. Capacitance Cond-to-Shield | 37 pF/ft |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 36 pF/ft |
| Nom. Characteristic Impedence | 78 Ohm |
| Nom. Velocity of Prop. | 66% |
High Frequency (Nominal/Typical)
| Element | Frequency [MHz] | Nom. Insertion Loss (Attenuation) |
|---|---|---|
| Pair(s) | 1 | 0.6 dB/100ft |
| 10 | 2.1 dB/100ft | |
| 50 | 5 dB/100ft | |
| 100 | 7.5 dB/100ft | |
| 200 | 11 dB/100ft | |
| 400 | 16 dB/100ft |
Voltage
| UL Voltage Rating | 300 V (PLTC) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 205 lbs (93.0 kg) |
|---|---|
| Bulk Cable Weight | 121 lbs/1000ft (180 kg/km) |
Temperature
| UL Temperature | 60°C |
|---|---|
| Operating | -20°C to +60°C |
Bend Radius
| Stationary Min. | 6 in (150 mm) |
|---|---|
| Installation Min. | 6 in |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, Burial |
|---|---|
| Flammability / Reaction to Fire | UL1685 UL Loading |
| NEC / UL Compliance | Article 725, PLTC |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| Other Standard Compliance(s) | Allen Bradley Part No. 1770-CD |
History
| Update and Revision | Revision Number: 0.247 Revision Date: 05-31-2024 |
|---|
Resources
Related armored data cable
123086A
DeviceBus® for Honeywell SDS, 2 Pr #16+20 Str TC, PVC+FPE Ins, IS, PVC Jkt, AIA, PVC Jkt, CL2
PVC - Polyvinyl Chloride
139463
Blue Hose®, 1 Pr #20 Str TC, PE Ins Blu, Clr, Foil+TC Braid Shld, PVC Jkt, SIA Armor, PVC Jkt, CM
1 · 20 AWG · TC - Tinned Copper · PE - Polyethylene
3073F
DataTray® 100Ω Twinax, 1 Pr #18 Str TC, PP Ins, OS+TC Brd, PVC Jkt, TC, PLTC, ITC, CMG
1 · 18 AWG · TC - Tinned Copper · PP - Polypropylene

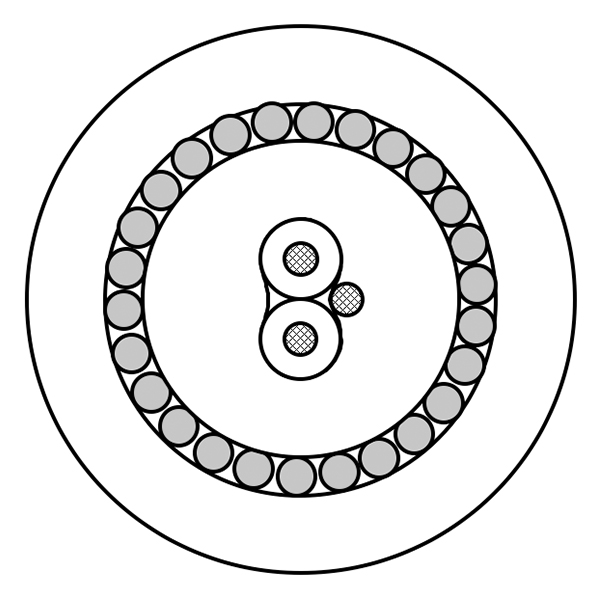

3077ELS
