150Ω Twinax, 1 Pr #22 Str TC, FFEP Ins, OA DF, FEP Jkt, CMP

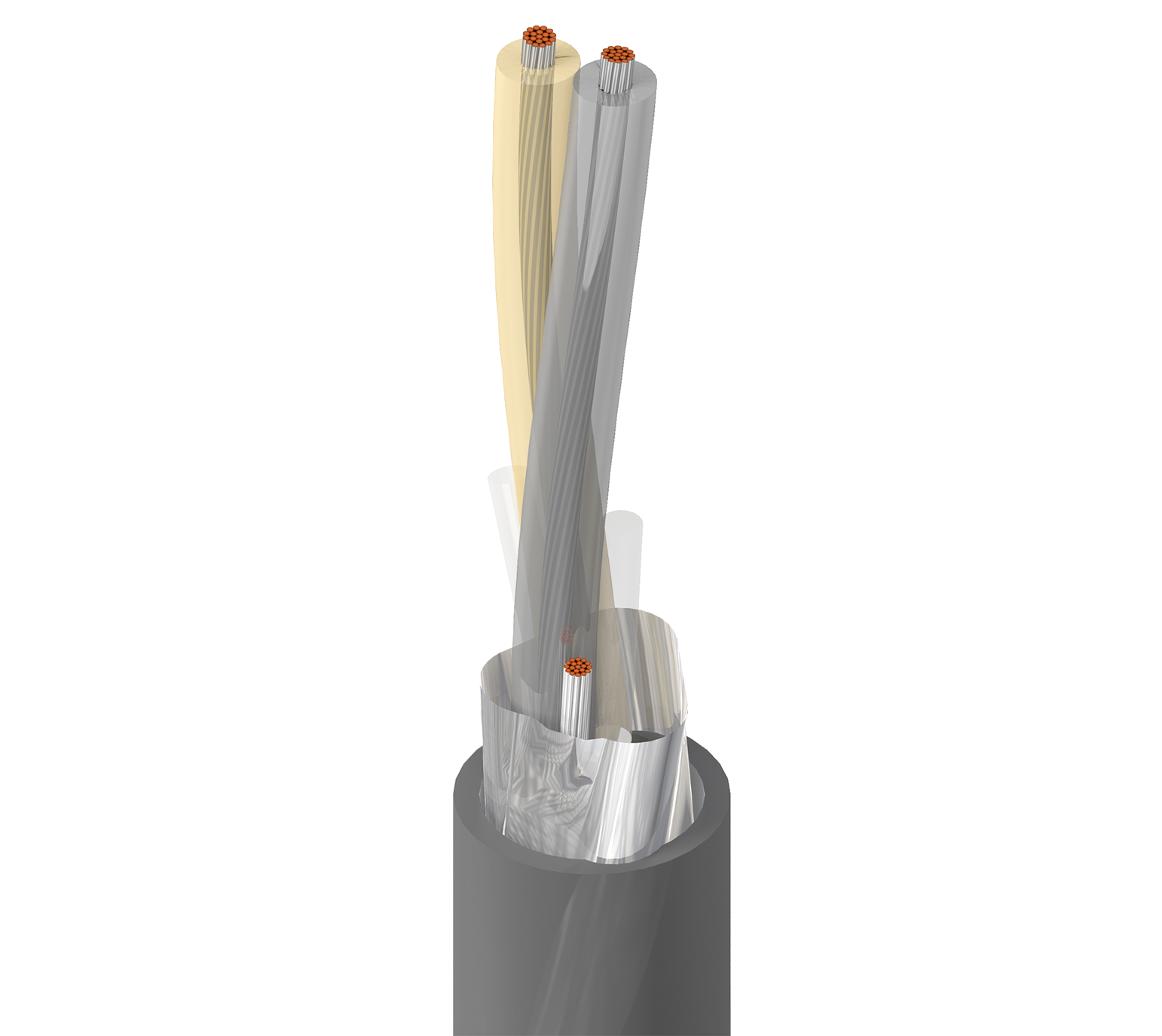

Twinax 150Ω, 1 Pair 22AWG (19x34) Tinned Copper, Foam FEP Insulation, Overall Duofoil® Shield, FEP Jacket, CMP
- Availability
- Global
- Status
- Active
- Orderable items
- 4
Part numbers
89182 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 89182 010500 | Black | Reel | 500 ft | 612825220145 | C | Order online |
| 89182 0101000 | Black | Reel | 1,000 ft | 612825220138 | C | Order online |
| 89182 0105000 | Black | Reel | 5,000 ft | 612825220152 | — | Order online |
| 89182 0085000 | Gray | Reel | 5,000 ft | 612825220114 | C | Order online |
Specifications
Product Overview
| Suitable Applications | Harsh environment, IIoT, factory or process automation, video, audio, data communication, etc. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.307 in (7.80 mm) |
|---|
Conductor
| Size | 22 AWG |
|---|---|
| Stranding | 19x34 |
| Nom. Diameter | 0.030 in |
| Material | TC - Tinned Copper |
Insulation
| Material | FEP - Fluorinated Ethylene Propylene (Foam) |
|---|---|
| Nom. Insulation Diameter | 0.130 in (3.30 mm) |
| Color Code | Black & Yellow |
Outer Shield
| Layer | 1 |
|---|---|
| Outer Shield Type | Tape |
| Material | Tri-Laminate (Alum+Poly+Alum) |
| Material Trade Name | Duofoil® |
| Coverage | 100% |
Outer Jacket
| Material | FEP - Fluorinated Ethylene Propylene |
|---|---|
| Nom. Diameter | 0.307 in (7.80 mm) |
Electrical Characteristics
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.40 dB/100ft |
| 10 MHz | 1.10 dB/100ft |
| 50 MHz | 2.75 dB/100ft |
| 100 MHz | 4.30 dB/100ft |
| 200 MHz | 6.20 dB/100ft |
| 400 MHz | 8.80 dB/100ft |
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 14.0 Ohm/1000ft |
| Nom. Outer Shield DCR | 6.3 Ohm/1000ft (21 Ohm/km) |
| Nom. Capacitance Cond-to-Shield | 16.5 pF/ft (54.1 pF/m) |
| Nom. Characteristic Impedance | 150 Ohm |
| Nom. Velocity of Prop. | 78% |
Voltage
| UL Voltage Rating | 300 V RMS (CL2P, CMP) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 28 lbs (13 kg) |
|---|---|
| Bulk Cable Weight | 49 lbs/1000ft |
Temperature
| UL Temperature | 200°C |
|---|---|
| Operating | -70°C to +200°C |
Bend Radius
| Stationary Min. | 6.25 in (159 mm) |
|---|---|
| Installation Min. | 2.5 in (64 mm) |
Standards and Compliance
| Environmental Suitability | Indoor - Plenum, Indoor, Outdoor, Aerial - When supported by messenger wire, Burial |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | NFPA 262 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 725, Article 800, CL2P, CMP |
| CEC / C(UL) Compliance | CMP. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 9182 |
Product Notes
| Notes | Cable contains fillers for better electrical performance. |
|---|
History
| Update and Revision | Revision Number: 0.526 Revision Date: 02-20-2026 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
