Product Number: 28160A

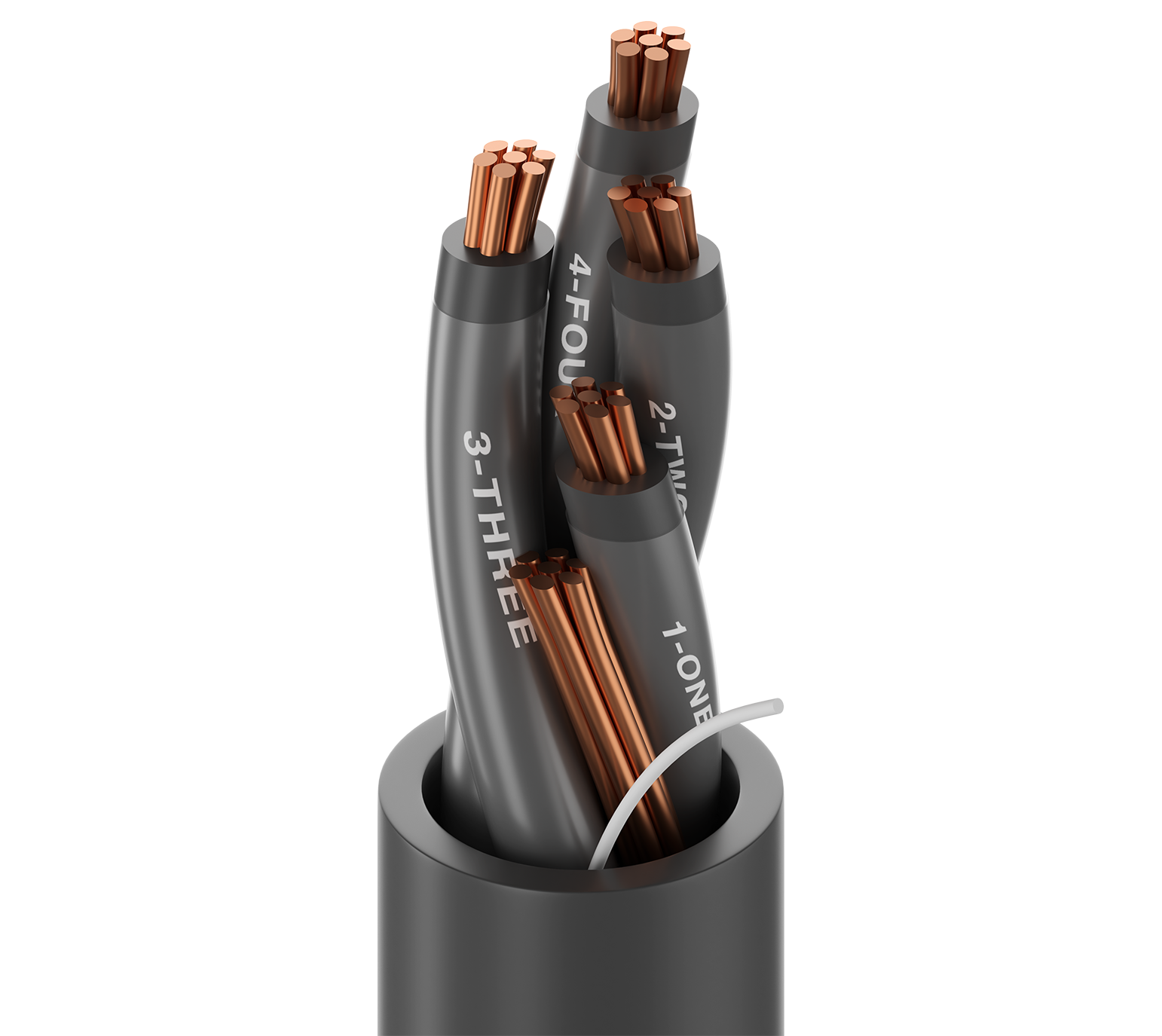

TC VN/PVC, 4+G C #2+6 Str BC, PVC-NYL Ins M4, Blk PVC Jkt, 600V TC-ER 90C Dry/Wet SUN RES DIR BUR

UL Type TC (1277) PVC-Nylon/PVC, 4+G Conductor 2+6AWG (7x10+7x14) Bare Copper, PVC-NYL Insulation M4 Color Code, Black PVC Outer Jacket, 600V TC-ER 90C Dry/Wet SUN RES DIR BUR

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

28160A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
28160A 0105000	Black	Reel	5,000 ft	612825135630	C Z	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.628 Revision Date: 02-20-2026
Footnote	C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

Product Overview

Suitable Applications	Power and Control Applications up to 600V; Class 1 Division 2 Hazardous Locations; Recommended Cable Gland Belden BTC125A1271RA

Construction Details

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	4	2	7x10	BC - Bare Copper
Ground	1	6	7x14	BC - Bare Copper

Insulation

Material	PVC/Nylon - Polyvinyl Chloride + Nylon
Nom. Thickness	0.042 in (1.1 mm)
Nom. Insulation Diameter	0.367 in (9.32 mm)
Color Code	Black and Numbered

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.083 in (2.1 mm)
Nom. Diameter	1.106 in (28.09 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	0.16 Ohm/1000ft	104 Amps per Conductor at 30oC
Ground	0.4 Ohm/1000ft (1.3 Ohm/km)	78 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	600 V (TC-ER)

Mechanical Characteristics

Max. Pull Tension	3496.3 lbs (1585.9 kg)
Bulk Cable Weight	1211 lbs/1000ft

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	Wet/Dry: -30°C to 90°C

Bend Radius

Stationary Min.	5.5 in (140 mm)
Installation Min.	5.5 in (140 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire	UL 1685 UL loading, IEEE 1202 FT4
NEC / UL Compliance	Article 336, TC-ER, THWN-2 Singles
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

History

Update and Revision	Revision Number: 0.628 Revision Date: 02-20-2026
Footnote	C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
