EDAL10xx E-Series

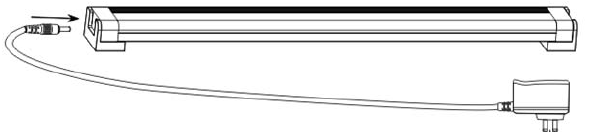

Lighting LED bar with switch and powering cable. Available with several power plug types.
- Availability
- EMEA
- Status
- Active
- Orderable items
- 4
Part numbers
LIGHTING E-SERIES LED BAR is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Order |
|---|---|
| EDAL1010 | Order online |
| EDAL1020 | Order online |
| EDAL1030 | Order online |
| EDAL1040 | Order online |
Specifications
Application
| Product Overview | LED lighting unit for cabinets with switch. Simple mounting by attached magnet strip, on any metal part of the cabinet or 19" bracket. |
|---|---|
| Environmental Space | Indoor |
Construction and Dimensions
| Rack Units | 1U |
|---|---|
| Overall Height | 38 mm |
| Overall Width | 30 mm |
| Overall Length | 300 mm |
Electrical Characteristics
| Input Voltage | 230 VAC |
|---|
Mechanical Construction
| Mechanical Construction Note | Power cable is connected to the LED light with a pluggable terminal block. |
|---|---|
| On-Off Switch | Yes |
| Cord Length | 1.5 m |
Environmental and Overall Characteristics
| Color | Silver Gray / Milky White |
|---|---|
| Material | Aluminum housing |
| Weight | 180 g |
Standards
| EU CE Mark | Yes |
|---|---|
| EU Directive 2011/65/EU (RoHS 2) | Compliant |
Related Part Numbers
| Included Parts | LED light 19" bracket with cage nuts Power cable |
|---|---|
| Packaging | Individually boxed |
| Update and Revision | Revision Number: 0.86 Revision Date: 05-26-2026 |
