Product Number: Lacing/PDU Mounting Panels

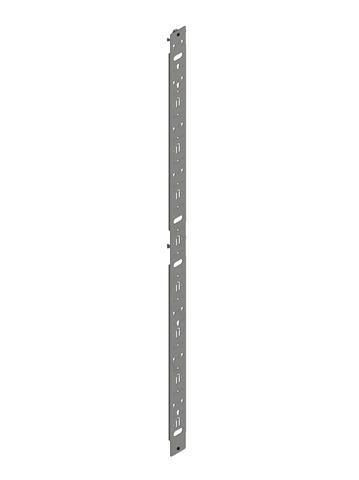

Vertical Lacing/PDU Mounting Panels

Belden Cabinet Line Vertical Lacing/PDU Mounting Panels

Availability: Global
Status: Active

Ships from and sold by A5 IT.

Specifications

Application

Product Overview	Manager panels are available in 3.5"W and 7.0"W. Mounts on rail struts for depth adjustability. Panels can be mounted side by side to create manager surface. Tool-Less PDU Mounting. Lacing of cable bundles. Attachment of Ring Managers. Attachment of Slack Management Spools. Attachment of Quick-mount base
Benefits	Can be factory installed if ordered in conjunction with a cabinet.
Features	Mounts on rail struts for depth adjustability, Panels can be mounted side by side to create manager surface, Tool-less PDU mounting, Lacing of cable bundles, Attachment of slack management spools, Attachment of quick mount base
Product Specification	*Lacing/PDU Mounting panels are not included with cabinets or PDU's and need to be ordered separately.
Environmental Space	Indoor

Mechanical Characteristics

Mount Type	Vertical

Environmental and Overall Characteristics

Material	Steel

Related Part Numbers

Update and Revision	Revision Number: 0.158 Revision Date: 02-03-2025

Information

Update and Revision	Revision Number: 0.158 Revision Date: 02-03-2025
Item Part #	Description Color Width Cabinet Application
HNVMP014501	Vertical Lacing/PDU Mounting Panel, 45U Black 3.5 in XHN Series
HNVMP014502	Vertical Lacing/PDU Mounting Panel, 45U White 3.5 in XHN Series
HVMP014201	Vertical Lacing/PDU Mounting Panel, 42U Black 3.5 in XHM Series XHS Series XHMS Series XHSN Series XHSS Series
HVMP014202	Vertical Lacing/PDU Mounting Panel, 42U White 3.5 in XHM Series XHS Series XHMS Series XHSN Series XHSS Series
HVMP014501	Vertical Lacing/PDU Mounting Panel, 45U Black 3.5 in XHM Series XHS Series XHMS Series XHSN Series XHSS Series
HVMP014502	Vertical Lacing/PDU Mounting Panel, 45U White 3.5 in XHM Series XHS Series XHMS Series XHSN Series XHSS Series
HVMP014801	Vertical Lacing/PDU Mounting Panel, 48U Black 3.5 in XHM Series XHS Series XHMS Series XHSN Series XHSS Series
HVMP014802	Vertical Lacing/PDU Mounting Panel, 48U White 3.5 in XHM Series XHS Series XHMS Series XHSN Series XHSS Series
HVMP024201	Vertical Lacing/PDU Mounting Panel, 42U Black 7.0 in XHM Series XHS Series XHMS Series XHSN Series XHSS Series
HVMP024202	Vertical Lacing/PDU Mounting Panel, 42U White 7.0 in XHM Series XHS Series XHMS Series XHSN Series XHSS Series
HVMP024501	Vertical Lacing/PDU Mounting Panel, 45U Black 7.0 in XHN Series
HVMP024502	Vertical Lacing/PDU Mounting Panel, 45U White 7.0 in XHN Series
HVMP024801	Vertical Lacing/PDU Mounting Panel, 48U Black 7.0 in XHM Series XHS Series XHMS Series XHSN Series XHSS Series
HVMP024802	Vertical Lacing/PDU Mounting Panel, 48U White 7.0 in XHM Series XHS Series XHMS Series XHSN Series XHSS Series
