EDAB4120

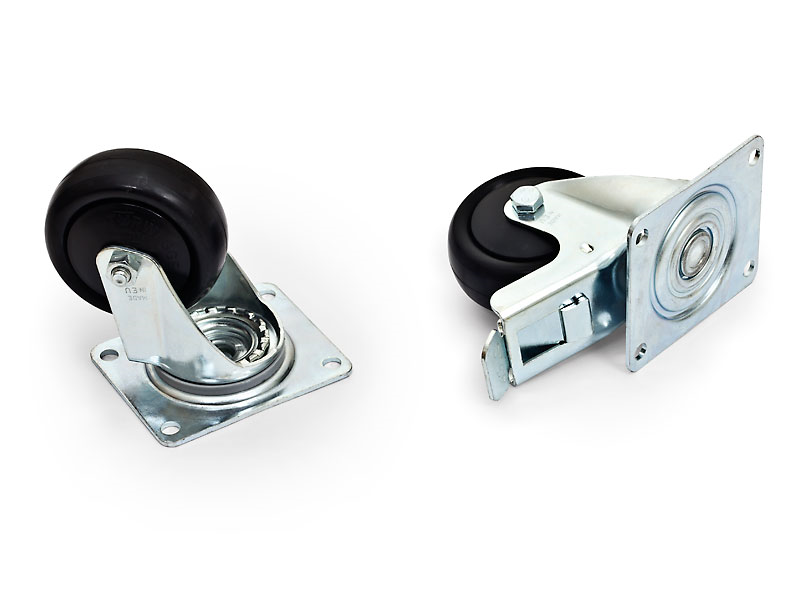

Casters for Free Standing E-Series END Cabinet . Set of 4 Casters, including two with brake.
- Availability
- EMEA
- Status
- Active
- Orderable items
- 1
Part numbers
CASTER SET for END CABINET is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Colour | Order |
|---|---|---|
| EDAB4120 | Metallic | Order online |
Specifications
Application
| Environmental Space | Indoor |
|---|
Construction and Dimensions
| Overall Height | 108 mm |
|---|
Mechanical Characteristics
| Mechanical Characteristics Note | Using the casters, the cabinet's height increases by 108 mm |
|---|---|
| Load Capacity | 200 kg for 600 mm wide, 400 kg for 800 mm wide cabinets. (including weight of the cabinet) |
| Load Capacity - Dynamic | the load capacity of the castors is applicable for travel speed up to 4 km/h on level ground and smooth surface at ambient temperature in the range of 10-30 deg. C. |
Environmental and Overall Characteristics
| Color | Metallic |
|---|
Standards
| EU Directive 2011/65/EU (RoHS 2) | Compliant |
|---|---|
| MII Order #39 (China RoHS) | EUP 50 |
Related Part Numbers
| Included Parts | - 2x casters with break, - 2x caster without brake, 16 pcs TM5xT25 screws, 16 pcs enlarged washer 5.3 |
|---|---|
| Packaging | packed per 4 pieces |
| Update and Revision | Revision Number: 0.162 Revision Date: 08-04-2025 |
