Valve Connectors

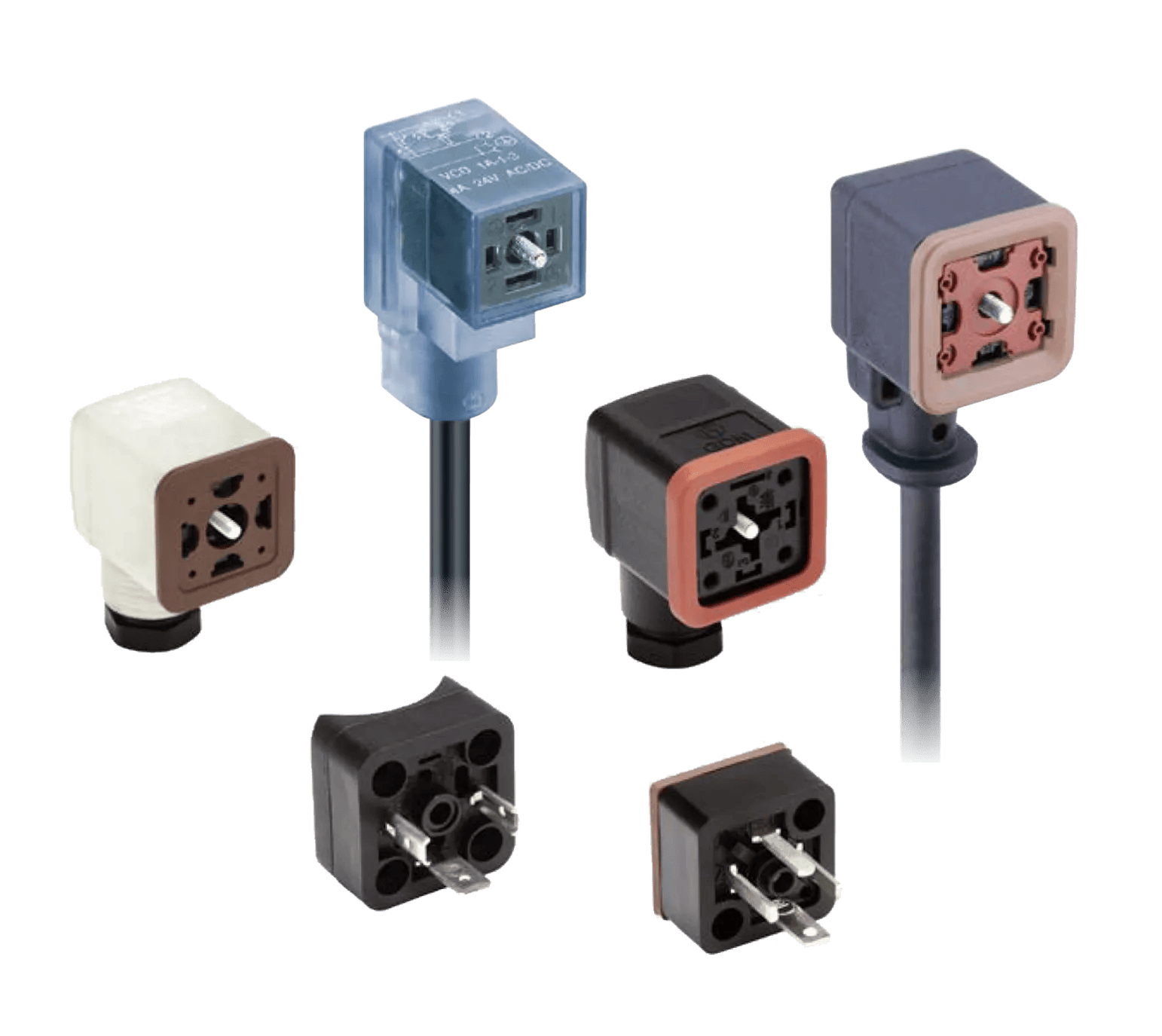

When selecting the right valve connectors, reliable and durable performance are just as important as choosing the right design, protection circuitry and accessory. Hirschmann and Lumberg Automation valve connectors connect solenoid valves, pressure sensors, temperature sensors and flow monitors to voltage supplies or a data network. NEW GDME Heavy Duty Valve Connectors meet UL's rigorous standards for flame resistance and vibration tolerance, as well as DNV standards for marine applications.
Features & Benefits
- Ruggedized Designs: Experience a reliable connection with excellent protection against dust, water and vibrations
- User-Friendly: Plug-and-play technology, prewired cordsets and flexible field attachables save time and effort during installation
- Ultimate Versatility: Choose from three valve connector types, different circuity options and various cable options to address individual applications
633 product families
VAD 1A-1-3-226
Form A - Female 90° | #Contacts: 2+2 PE | Varistor (MOV) & ye LED | 24 V | Cable: Black (PUR); 0.50 mm2; IEC
16 items
GAN22LU-V24-226
Form A - Female 90° | #Contacts: 2+2 PE | Varistor (MOV) & ye LED | 24 V | Cable: Black (PUR); 0.50 mm2; IEC | cURus
10 itemsVAD 1A-2-3-226
Form A - Female 90° | #Contacts: 2+2 PE | Varistor (MOV) & ye LED | 120 V | Cable: Black (PUR); 0.50 mm2; IEC
10 items
GAN22LU-S24-609
Form A - Female 90° | #Contacts: 2+2 PE | Suppressor diode (TVS) & ye LED | 24 V | Cable: Grey (PVC); 0.75 mm2; IEC | cURus
9 itemsVAD 1B-1-3-226
Form A - Female 90° | #Contacts: 2+2 PE | Suppressor diode (TVS) & ye LED | 24 V | Cable: Black (PUR); 0.50 mm2; IEC
9 itemsGAN22LU-L14-603
Form A - Female 90° | #Contacts: 2+2 PE | ye LED | 24 V | Cable: Grey (PUR); 0.75 mm2; IEC | cURus
8 itemsGAN22LU-S24-603
Form A - Female 90° | #Contacts: 2+2 PE | Suppressor diode (TVS) & ye LED | 24 V | Cable: Grey (PUR); 0.75 mm2; IEC | cURus
8 items
GAN31LU-A0U-610
Form A - Female 90° | #Contacts: 3+PE | No Protective Circuit | 250 V | Cable: Grey (PVC); 0.75 mm2; IEC | cURus
8 itemsVAD 1F-4-3-226
Form A - Female 90° | #Contacts: 2+2 PE | Recovery Diode (FRD) & ye LED | 24 V | Cable: Black (PUR); 0.50 mm2; IEC
8 items
VAD 3C-4-1-228
Form A - Female 90° | #Contacts: 3+PE | Dual gn-ye LEDs | 24 V | Cable: Black (PUR); 0.50 mm2; IEC | cURus
8 items
VB 1D-3-1-226
VB Industrial Standard Single-Ended Cordset: Form B, 3-pin (2+1PE; PE at cable outlet), black body, without circuitry, 230 V AC/DC, 4 A; PUR black cable, 0.50 mm2
8 items
GAN20LU-S22-618
Form A - Female 90° | #Contacts: 2 | Suppressor diode (TVS) & ye LED | 12 V | Cable: Grey (PVC); 0.75 mm2; IEC | cURus
7 items

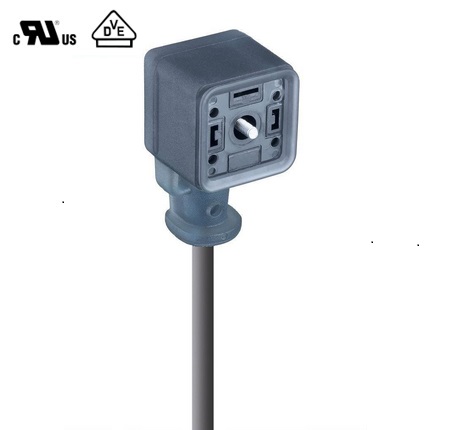

GAN21LU-A0U-609
Form A - Female 90° | #Contacts: 2+PE | No Protective Circuit | 250 V | Cable: Grey (PVC); 0.75 mm2; IEC | cURus
7 itemsGAN22LU-L14-609
Form A - Female 90° | #Contacts: 2+2 PE | ye LED | 24 V | Cable: Grey (PVC); 0.75 mm2; IEC | cURus
7 itemsVAD 1A-1-3-212
Form A - Female 90° | #Contacts: 2+2 PE | Varistor (MOV) & ye LED | 24 V | Cable: Black (PVC); 0.50 mm2; IEC
7 itemsVAD 1D-3-3-205
Form A - Female 90° | #Contacts: 2+2 PE | No Protective Circuit | 250 V | Cable: Black (PVC); 0.75 mm2; IEC
7 items
VAD 3C-4-2-228
Form A - Female 90° | #Contacts: 3+PE | Dual gn-ye LEDs | 24 V | Cable: Black (PUR); 0.50 mm2; IEC | cURus
7 items
VCD 1D-3-3-212
VCD DIN Standard Single-Ended Cordset: Form C, 4-pin (2+2PE), black body, without circuitry, 230 V AC/DC, 4 A; PVC black cable, 0.50 mm2
7 itemsGAN20LU-S24-618
Form A - Female 90° | #Contacts: 2 | Suppressor diode (TVS) & ye LED | 24 V | Cable: Grey (PVC); 0.75 mm2; IEC | cURus
6 itemsGAN22LU-A0U-609
Form A - Female 90° | #Contacts: 2+2 PE | No Protective Circuit | 250 V | Cable: Grey (PVC); 0.75 mm2; IEC | cURus
6 items

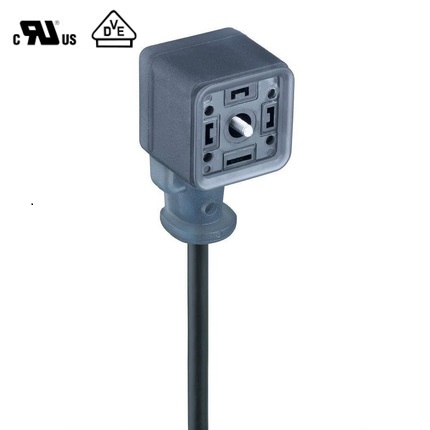

GAN3ZLU-P2M-228
Form A - Female 90° | #Contacts: 3+PE | Dual gn-ye LEDs | 24 V | Cable: Black (PUR); 0.50 mm2; IEC | cURus
5 itemsGAN20LU-A0U-618
Form A - Female 90° | #Contacts: 2 | No Protective Circuit | 50 V | Cable: Grey (PVC); 0.75 mm2; IEC | cURus
5 itemsGAN22LU-S24-226
Form A - Female 90° | #Contacts: 2+2 PE | Suppressor diode (TVS) & ye LED | 24 V | Cable: Black (PUR); 0.50 mm2; IEC | cURus
5 itemsVAD 1F-4-3-212
Form A - Female 90° | #Contacts: 2+2 PE | Recovery Diode (FRD) & ye LED | 24 V | Cable: Black (PVC); 0.50 mm2; IEC
5 items

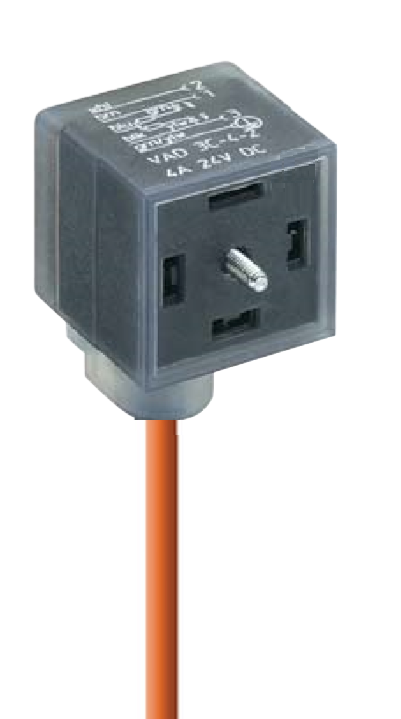

VAD 3C-4-2-259
Form A - Female 90° | #Contacts: 3+PE | Dual gn-ye LEDs | 24 V | Cable: Orange Polyurethane (PUR); 0.50 mm2; IEC
5 itemsVCD 1D-3-3-226
VCD DIN Standard Single-Ended Cordset: Form C, 4-pin (2+2PE), black body, without circuitry, 230 V AC/DC, 4 A; PUR black cable, 0.50 mm2
5 items
GAN22LU-S24-212
Form A - Female 90° | #Contacts: 2+2 PE | Suppressor diode (TVS) & ye LED | 24 V | Cable: Black (PVC); 0.50 mm2; IEC
4 itemsGAN22LU-V2Y-226
Form A - Female 90° | #Contacts: 2+2 PE | Varistor (MOV) & ye LED | 250 V | Cable: Black (PUR); 0.50 mm2; IEC | cURus
4 itemsGAN22LU-V21-609
Form A - Female 90° | #Contacts: 2+2 PE | Varistor (MOV) & ye LED | 120 V | Cable: Grey (PVC); 0.75 mm2; IEC | cURus
4 itemsGAN22LU-V24-212
Form A - Female 90° | #Contacts: 2+2 PE | Varistor (MOV) & ye LED | 24 V | Cable: Black (PVC); 0.50 mm2; IEC
4 itemsGAN31LU-A0U-604
Form A - Female 90° | #Contacts: 3+PE | No Protective Circuit | 250 V | Cable: Grey (PUR); 0.75 mm2; IEC | cURus
4 items
GAN31LU-A0U-744
Form A - Female 90° | #Contacts: 3+PE | No Protective Circuit | 250 V | Cable: Black (PUR); 0.50 mm2; IEC | cURus
4 itemsVAD 1A-3-3-226
Form A - Female 90° | #Contacts: 2+2 PE | Varistor (MOV) & ye LED | 250 V | Cable: Black (PUR); 0.50 mm2; IEC
4 itemsVAD 1B-1-3-212
Form A - Female 90° | #Contacts: 2+2 PE | Suppressor diode (TVS) & ye LED | 24 V | Cable: Black (PVC); 0.50 mm2; IEC
4 itemsVAD 1C-4-1-228
Form A - Female 90° | #Contacts: 3+PE | Dual gn-ye LEDs | 24 V | Cable: Black (PUR); 0.50 mm2; IEC | cURus
4 items

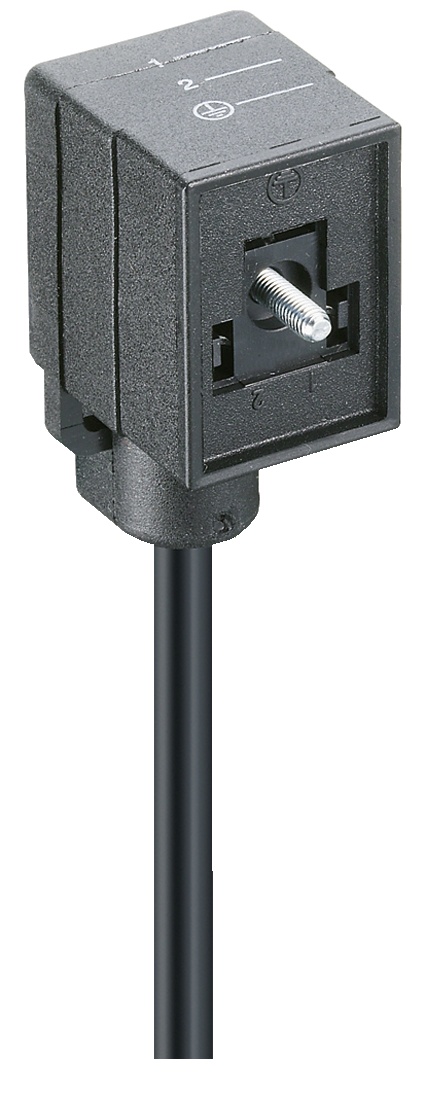

VBD 1D-3-2-205
VBD DIN Standard Single-Ended Cordset: Form B, 3-pin (2+1PE; PE across cable outlet), black body, without circuitry, 230 V AC/DC, 4 A; PVC black cable, 0.75 mm2
4 itemsGAN22LU-A0U-603
Form A - Female 90° | #Contacts: 2+2 PE | No Protective Circuit | 250 V | Cable: Grey (PUR); 0.75 mm2; IEC | cURus
3 itemsGAN22LU-D24-212
Form A - Female 90° | #Contacts: 2+2 PE | Recovery Diode (FRD) & ye LED | 24 V | Cable: Black (PVC); 0.50 mm2; IEC
3 itemsGAN22LU-D24-226
Form A - Female 90° | #Contacts: 2+2 PE | Recovery Diode (FRD) & ye LED | 24 V | Cable: Black (PUR); 0.50 mm2; IEC | cURus
3 itemsGAN22LU-L1Y-212
Form A - Female 90° | #Contacts: 2+2 PE | ye LED | 250 V | Cable: Black (PVC); 0.50 mm2; IEC
3 itemsGAN22LU-L1Y-226
Form A - Female 90° | #Contacts: 2+2 PE | ye LED | 250 V | Cable: Black (PUR); 0.50 mm2; IEC | cURus
3 itemsGAN22LU-L1Y-609
Form A - Female 90° | #Contacts: 2+2 PE | ye LED | 250 V | Cable: Grey (PVC); 0.75 mm2; IEC | cURus
3 itemsGAN22LU-L11-226
Form A - Female 90° | #Contacts: 2+2 PE | ye LED | 120 V | Cable: Black (PUR); 0.50 mm2; IEC | cURus
3 itemsGAN22LU-L14-212
Form A - Female 90° | #Contacts: 2+2 PE | ye LED | 24 V | Cable: Black (PVC); 0.50 mm2; IEC
3 itemsGAN22LU-L14-226
Form A - Female 90° | #Contacts: 2+2 PE | ye LED | 24 V | Cable: Black (PUR); 0.50 mm2; IEC | cURus
3 itemsGAN22LU-V2Y-212
Form A - Female 90° | #Contacts: 2+2 PE | Varistor (MOV) & ye LED | 250 V | Cable: Black (PVC); 0.50 mm2; IEC
3 itemsGAN22LU-V2Y-603
Form A - Female 90° | #Contacts: 2+2 PE | Varistor (MOV) & ye LED | 250 V | Cable: Grey (PUR); 0.75 mm2; IEC | cURus
3 itemsGAN22LU-V2Y-609
Form A - Female 90° | #Contacts: 2+2 PE | Varistor (MOV) & ye LED | 250 V | Cable: Grey (PVC); 0.75 mm2; IEC | cURus
3 items
