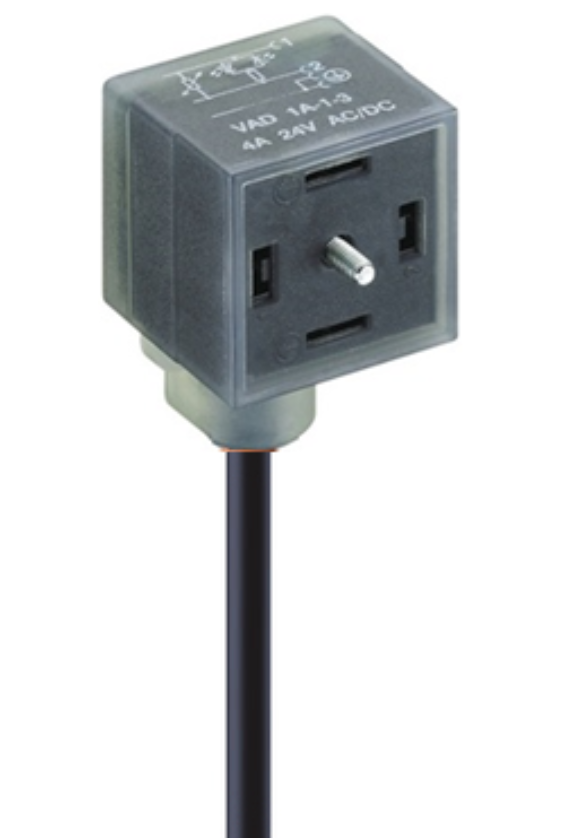

Product Number: VAD 1A-2-3-226

Form A - Female 90° | #Contacts: 2+2 PE | Varistor (MOV) & ye LED | 120 V | Cable: Black (PUR); 0.50 mm2; IEC

Form A - Singled-Ended Female Angled Cordset | #Contacts: 2+2 PE | Varistor (MOV) & yellow LED | 120 V / 4 A | Cable: Black PUR Jacket; 3x0.50 mm2 (20 AWG); IEC

Availability: Global
Status: Limited Availability/Passive
Orderable items: 10

Ships from and sold by A5 IT.

Part numbers

VAD 1A-2-3-226 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Item Description	Cable Length	Order
800000183	VAD 1A-2-3-226/5 M	5 m	Order online
800000184	VAD 1A-2-3-226/2 M	2 m	Order online
43837	VAD 1A-2-3-226/10 M	10 m	Order online
43838	VAD 1A-2-3-226/2 M	2 m	Order online
43839	VAD 1A-2-3-226/5 M	5 m	Order online
44160	VAD 1A-2-3-226/3 M	3 m	Order online
108073	VAD 1A-2-3-226/16 M	16 m	Order online
934637007	VAD 1A-2-3-226/20 M	20 m	Order online
108081	VAD 1A-2-3-226/12 M	12 m	Order online
54615	VAD 1A-2-3-226/15 M	15 m	Order online

Specifications

Product Life Cycle

Life Cycle	Limited Availability/Passive - the product is entering End of Life
Availability	Active
Product Family	Valve Connectors
Side 1 Product Sub Family	VAD
Connector Type	Cordset, single ended
Side 1 Type of Contact/Gender	Socket Contact / Female
Connector Design	Angled (90°) Body
Number of Pins	2+2 PE
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Central Screw
Voltage Rating	120 V
Rated Impulse Voltage	4.0 kV
Operating Voltage	110 V AC/DC
Current Rating	4 A
Side 1 Contact Resistance	≤ 5 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 50
Cross Section	0.50 mm2
Ambient Temperature (Operation)*	- 25 °C - + 80 °C
Protection Degree / IP Rating**	IP65, IP67
Side 1 Design Standard	DIN EN 175301-803-A, ISO 4400
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material	Brass (CuZn)
Side 1 Contact Plating	Copper Nickel Alloy (Cu/Ni,Sn)
Contact Bearer Material	Polybutylene terephthalate (PBT
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 V-0
Molded Body Material	Thermoplastic Polyurethane (TPU)
Molded Body Color	Transluscent
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	Steel, Philips combi slot
Gasket Material	Molded Integrated Gasket

Circuitry

Protection Circuitry	Varistor (MOV) & yellow LED
Function Indicator	Yellow LED
Protective Circuit	Varistor (MOV)
Fastening Torque (Attachment)	(50-60) Ncm
Accessories to Order Separately	934887001 - GAN EPDM gasket and holding clip

Cable Data

Cable Number	226
Conductor Size	0.5 mm2
Number of Wires	3
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 5 mio
Cycles (Torsion)	˃ 5 M @ ± 360 °/1 m
Conductor Material	Cu
Cable Jacket Material	Polyurethane (PUR)
Cable Jacket Color	Black
Cable Diameter D	Ø 4.6 mm [ 0.181 " ]
Wire Insulation Material	Polypropylene (PP)
Insulated Wire Diameter	Ø 1.50 mm [ 0.06 " ]
Ambient Temperature (Fixed Installation)	- 50 °C to + 105 °C (UL: + 80 °C)
Ambient Temperature (Flex Installation)	- 25 °C to + 105 °C (UL: + 80 °C)
UL Cable Type	AWM: 20549
Flammability Class (Cable Jacket)	DIN EN 50265-2-2, VDE 0482-265-2-2, IEC 60332-2-2, CSA FT2
Cable Characteristics	Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Coldness flexibility; Free of lacquer wetting disturbing substances
