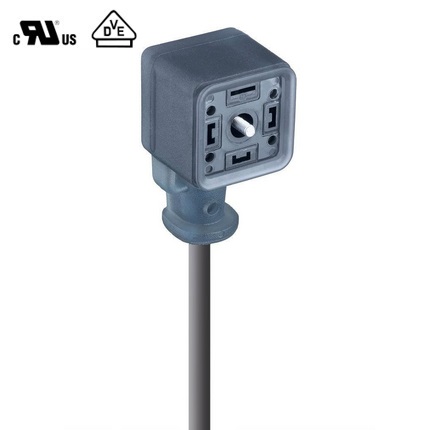

Product Number: GAN31LU-A0U-604

Form A - Female 90° | #Contacts: 3+PE | No Protective Circuit | 250 V | Cable: Grey (PUR); 0.75 mm2; IEC | cURus

Name: Belden GAN31LU-A0U-604
Brand: Hirschmann
SKU: GAN31LU-A0U-604

Ships from and sold by A5 IT.

Part numbers

GAN31LU-A0U-604 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Item Description	Cable Length	Order
9519	GAN31LU-A0U-6042000	20 m	Order online
934889078	GAN31LU-A0U-6040200-1UC	2 m	Order online
934889079	GAN31LU-A0U-6040500-1UC	5 m	Order online
7947	GAN31LU-A0U-6041000-1UB	10 m	Order online

Life Cycle	Active - Product is available
Availability	Active
Product Family	Valve Connectors
Side 1 Product Sub Family	GAN - cURus 2238
Connector Type	Cordset, single ended
Side 1 Type of Contact/Gender	Socket Contact / Female
Connector Design	Angled (90°) Body
Number of Pins	3+PE (PE across cable outlet)
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Central Screw
Voltage Rating	250 V
Rated Impulse Voltage	4.0 kV
Operating Voltage	230 V AC/DC
Current Rating	10 A
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 50
Cross Section	0.75 mm2
Ambient Temperature (Operation)*	- 25 °C - + 85 °C [Extended Temperature - 40 °C - + 105 °C with additional gasket accessory, 934887001]
Protection Degree / IP Rating**	IP65, IP67 (IP69K: without additional gasket; max. +80 °C)
Side 1 Design Standard	DIN EN 175301-803-A, ISO 4400
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	Brass (CuZn)
Side 1 Contact Plating	Tin over Copper (Cu/Sn)
Contact Bearer Material	Glass-filled Polybutylene Terephthalate (PBT-GF)
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 V-0
Molded Body Material	Thermoplastic Polyurethane (TPU)
Molded Body Color	Grey translucent
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	Steel, Philips combi slot
Gasket Material	Molded Integrated Gasket

Protection Circuitry	No Protective Circuit
Protective Circuit	No Protective Circuit
Fastening Torque (Attachment)	(50-60) Ncm
Accessories to Order Separately	934887001 - GAN EPDM gasket and holding clip

Cable Number	604
Conductor Size	0.75 mm2
Number of Wires	4
Minimal Bending Radius (Fixed Inst)	˃ 4 x D
Minimal Bending Radius (Flexible Inst)	˃ 7.5 x D
Cycles (Bending)	˃ 5 mio
Conductor Material	Cu
Cable Jacket Material	Polyurethane (PUR)
Cable Jacket Color	Grey
Cable Diameter D	Ø 6.5 mm [ 0.256 " ]
Wire Insulation Material	Polypropylene (PP)
Insulated Wire Diameter	Ø 1.92 mm [ 0.08 " ]
Ambient Temperature (Fixed Installation)	- 40 °C to + 90 °C (UL: + 80 °C)
Ambient Temperature (Flex Installation)	- 20 °C to + 90 °C (UL: + 80 °C)
UL Cable Type	AWM: 21198
Flammability Class (Cable Jacket)	IEC 60332-1, DIN VDE 0472 Teil 804 test method B, UL/CSA FT2
Cable Characteristics	Exclusion of dangerous materials acc. : 2000/53/EG, 2011/65/EU, 2003/11/EG, 1907/2006/EG, Restistant against acids, alkalis and solvents, UV-and ozone resistant

RoHS Compliant	Yes

Halogenfree	Yes
Oil Resistance	VDE 0250 and 0472

Note Derating	Notice derating
Protection Degree / IP Rating Note	*IP Rating test performed by Belden with Belden Connectors only
Note	1. Do not connect or disconnect under load. 2. Extended temperature range of -40°C performed by Belden in mated condition using EPDM gasket accessory.
