Product Number: VB 1D-3-1-226

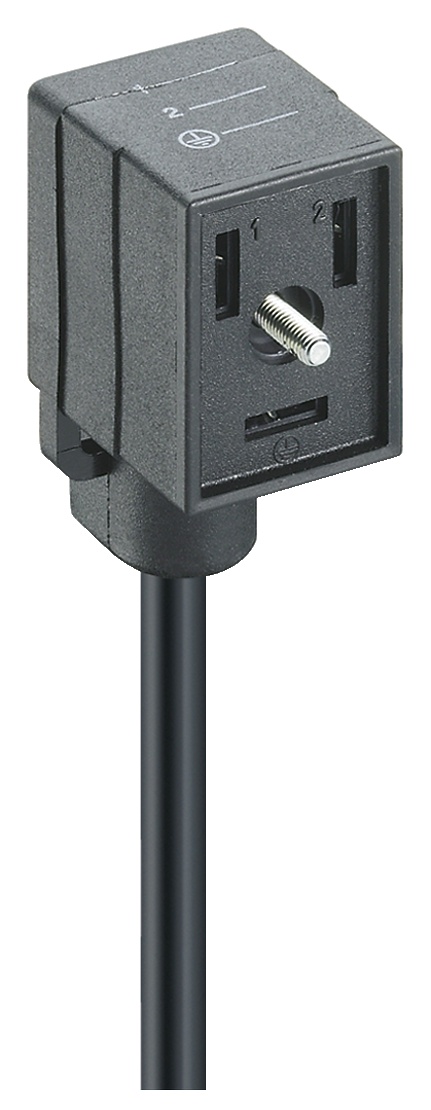

VB Industrial Standard Single-Ended Cordset: Form B, 3-pin (2+1PE; PE at cable outlet), black body, without circuitry, 230 V AC/DC, 4 A; PUR black cable, 0.50 mm2

Name: Belden VB 1D-3-1-226
Brand: Hirschmann
SKU: VB 1D-3-1-226

Ships from and sold by A5 IT.

Part numbers

VB 1D-3-1-226 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Item Description	Cable Length	Order
59639	VB 1D-3-1-226/5 M	5 m	Order online
13665	VB 1D-3-1-226/1,1 M	1.1 m	Order online
13669	VB 1D-3-1-226/1,3 M	1.3 m	Order online
13498	VB 1D-3-1-226/1,5 M	1.5 m	Order online
13670	VB 1D-3-1-226/1,75 M	1.75 m	Order online
13500	VB 1D-3-1-226/2 M	2 m	Order online
9522	VB 1D-3-1-226/20 M	20 m	Order online
934835149	VB 1D-3-1-226/5 M BAL1	—	Order online

Product Family	Valve Connectors
Side 1 Product Sub Family	VB Industrial Standard
Connector Type	Cordset, single ended
Side 1 Type of Contact/Gender	Female
Connector Design	Angled
Number of Pins	2+PE (PE at cable outlet)
Coding, Side 1	B
Shielding Type	Unshielded
Attachment Type	Central Screw
Voltage Rating	250 V AC/DC
Rated Impulse Voltage	4.0 kV
Operating Voltage	230 V AC/DC
Current Rating	4 A
Side 1 Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 50
Ambient Temperature (Operation)*	-25 °C - +80 °C
Protection Degree / IP Rating**	IP65
Side 1 Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)
Note Derating	Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	Do not connect or disconnect under load.

Contact Base Material	CuZn
Side 1 Contact Plating	Cu/Sn
Contact Bearer Material	PA GF
Contact Bearer Color	black
Flammability Class (Contact Bearer)	UL 94 V-0
Molded Body Material	TPE
Molded Body Color	Black
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	Steel, Philips combi slot

Protection Circuitry	No Circuitry
Fastening Torque (Attachment)	(50-60) Ncm

Cable Number	226
Conductor Size	0.5 mm2
Number of Wires	3
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 5 M
Cycles (Torsion)	˃ 5 M @ ± 360 °/1 m
Conductor Material	Cu
Cable Jacket Material	PUR
Cable Jacket Color	black
Cable Diameter D	ø 4.6 ± 0.20 mm
Wire Insulation Material	PP
Insulated Wire Diameter	ø 1.50 mm
Ambient Temperature (Fixed Installation)	- 50 °C - + 105 °C (UL: + 80 °C)
Ambient Temperature (Flex Installation)	- 25 °C - + 105 °C (UL: + 80 °C)
Ambient Temperature (Drag Chain Inst)	- 25 °C - + 60 °C
UL Cable Type	AWM: 20549
Flammability Class (Cable Jacket)	DIN EN 50265-2-2, VDE 0482-265-2-2, IEC 60332-2-2, CSA FT2
Cable Characteristics	Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Coldness flexibility; Free of lacquer wetting disturbing substances

RoHS Compliant	yes

Halogenfree	yes
Oil Resistance	Good chemical and oil resistance

Note Derating	Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	Do not connect or disconnect under load.
