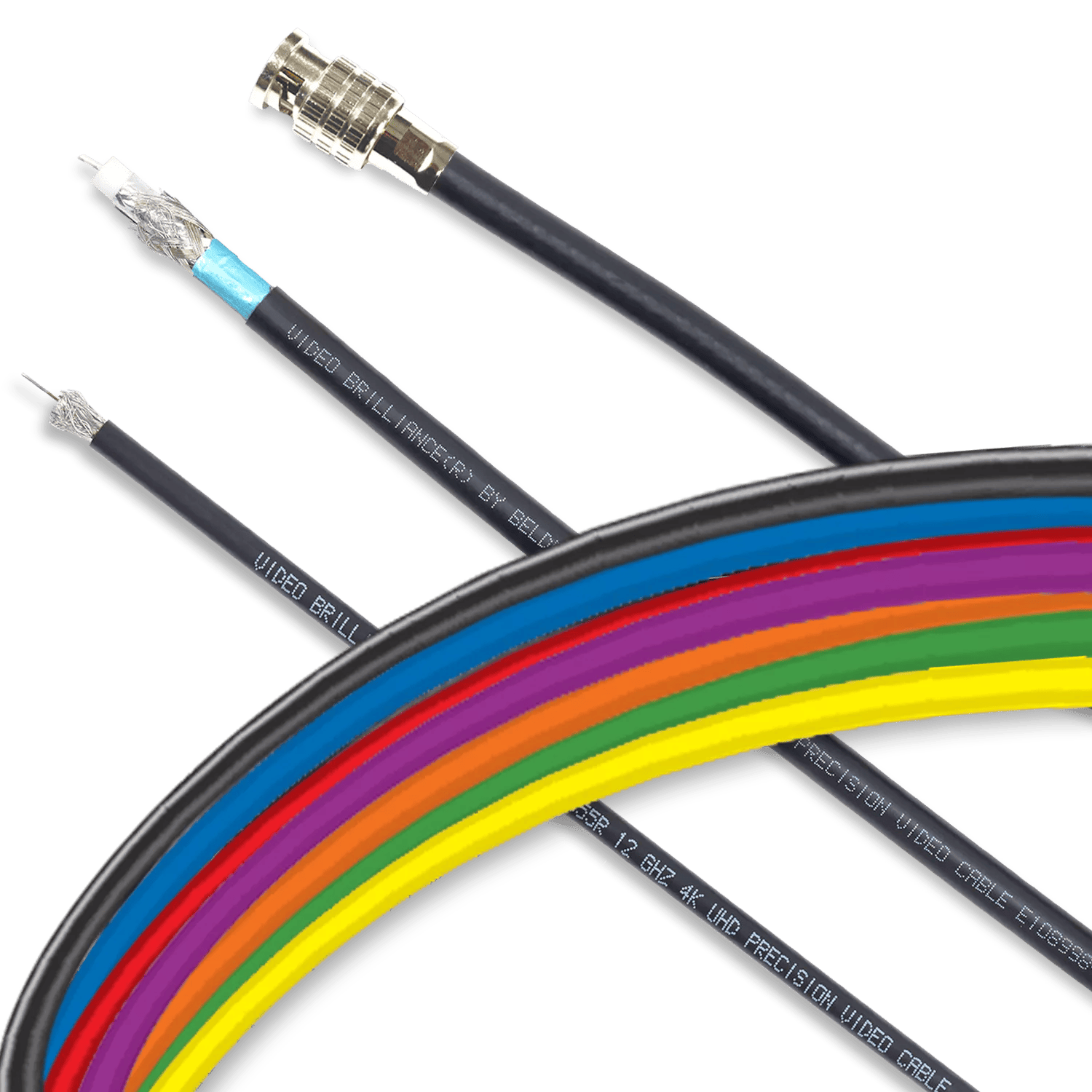

Coaxial Video Cable
In 1995, Belden first launched award-winning digital precision video coax, 1694A, which is still relied upon as the world-wide broadcast cable standard today. Now that technology has expanded to even higher resolutions, requiring more bandwidth, Belden has upgraded many of those cables to 6 GHz and has introduced a full line of 4K UHD Coax Cables for 12G-SDI. Belden 75 Ohm Video Coax Cables, ranging from 12 GHz to 3 GHz, ensure reliable signal integrity and exceptional quality. No other cable manufacturer has invested in this technology like Belden has, so no other manufacturer can assure you beyond-high-definition performance like Belden.
Features & Benefits
- Specially formulated gas injected high density foam polyethylene is more crush-resistant than standard polyethylene. Even with rough handling during installation, it resists deformation and maintains impedance and return loss characteristics.
- Belden's skin/foam insulation process provides the right amount of conductor adhesion for easier stripping and improved connector reliability.
- Compared to SMPTE's return loss limit, Belden's Precision Video Coax provides significant RL headroom to account for potential losses elsewhere in the transmission line.
53 product families
1694A
75 Ohm SDI Coax, RG-6, 18 AWG, Solid BC, Foil + 95% TC Braid, PVC Jkt, CMR
18 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
49 items
1505A
75 Ohm SDI Coax, RG-59, 20 AWG Solid BC, Foil + 95% TC Braid, PVC Jkt, CMR
20 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
44 items1855A
75 Ohm SDI Coax, Mini RG-59, 23 AWG Solid BC, Foil + 95% TC Braid, PVC Jkt, CMR
23 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
30 items7731A
75 Ohm SDI Coax, RG-11, 14 AWG Solid BC, Foil + 95% TC Braid, PVC Jkt, CMR
14 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
25 items
4694R
4K UHD Coax for 12G-SDI, 75 Ohm, RG-6, 18 AWG Solid SC, Foil + 95% TC Braid, PVC Jkt, CMR
18 AWG · SC - Silvered Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
24 items
4855R
4K UHD Coax for 12G-SDI, 75 Ohm, Mini RG-59, 23 AWG Solid SC, Foil + 95% TC Braid, PVC Jkt, CMR
23 AWG · SC - Silvered Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
23 items
1371R
Serial Digital Coax, Sub-miniature, #23 Solid BC, Foil + 85% TC Braid, CMP
23 · BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
20 items1695A
75 Ohm SDI Coax, RG-6, 18 AWG Solid BC, Foil + 95% TC Braid, PVC Jkt, CMP
18 AWG · BC - Bare Copper · FEP - Fluorinated Ethylene Propylene (Foam) · PVC - Polyvinyl Chloride
20 items4505R
4K UHD Coax for 12G-SDI, 75 Ohm, RG-59, 20 AWG Solid SC, Foil + 95% TC Braid, PVC Jkt, CMR
20 AWG · SC - Silvered Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
15 items1506A
75 Ohm SDI Coax, RG-59, 20 AWG Solid BC, Foil + 95% TC Braid, PVC Jkt, CMP
20 AWG · BC - Bare Copper · FEP - Fluorinated Ethylene Propylene (Foam) · PVC - Polyvinyl Chloride
12 items
1694F
75 Ohm SDI Coax, RG-6, 19 AWG Str BC, Double 95% TC Braid, PVC Jkt, CM, Flexible
19 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
10 items
1505F
75 Ohm SDI Coax, RG-59, 22 AWG Str BC, Double 95% TC Braid, PVC Jkt, CM, Flexible
21 AWG · BC-C - Bare Copper (Compacted) · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
9 items1855P
75 Ohm SDI Coax, Mini RG-59, 23 AWG Solid BC, Foil + 95% TC Braid, PVC Jkt, CMP
23 AWG · BC - Bare Copper · FEP - Fluorinated Ethylene Propylene (Foam) · PVC - Polyvinyl Chloride
9 items
4794R
4K UHD Coax for 12G-SDI, 75 Ohm, Series 7, 16 AWG Solid SC, Tri-Shield, PVC Jkt, CMR
16 AWG · SC - Silvered Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
9 items
1794A
75 Ohm SDI Coax, Series 7, 16 AWG, Solid BC, Tri-Shield, PVC Jkt, CMR
16 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
8 items4794P
4K UHD Coax for 12G-SDI, 75 Ohm, Series 7, 16 AWG Solid SC, Tri-Shield, PVDF Jkt, CMP
16 · SC - Silvered Copper · FEP - Fluorinated Ethylene Propylene (Foam) · PVDF - Polyvinylidene Fluoride
8 items4694P
4K UHD Coax for 12G-SDI, 75 Ohm, RG-6, 18 AWG Solid SC, Foil + 95% TC Braid, PVC Jkt, CMP
18 AWG · SC - Silvered Copper · FEP - Fluorinated Ethylene Propylene (Foam) · PVC - Polyvinyl Chloride
7 items
4731R
4K UHD Coax for 12G-SDI, 75 Ohm, RG-11, 14 AWG Solid SC, Tri-Shield, PVC Jkt, CMR
14 AWG · SC - Silvered Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
7 items7732A
75 Ohm SDI Coax, RG-11, 14 AWG Solid BC, Foil + 95% TC Braid, PVDF Jkt, CMP
14 AWG · BC - Bare Copper · FEP - Fluorinated Ethylene Propylene (Foam) · PVDF - Polyvinylidene Fluoride
6 items
1426A
Analog Video, RG59, #20 Solid BC, 95% BC Braid, PVC Jacket, CM
20 · BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
4 items
9275
Analog Video, RG59, 20 AWG Solid BCCS, Foil + Alum Braid, CM PVC Jacket
20 · BCCS - Bare Copper Covered Steel · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
4 items1694WB
Serial Digital Coax, RG6, #18 Solid BC, Foil + 95% TC braid, Waterblocked
BC - Bare Copper · PE - Polyethylene (Foam) · PE - Polyethylene
3 items
1808A
S-Video, High-Flex, Dual Mini 75 Ohm #30 Coax, Round
TC - Tinned Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride · 30 V RMS
3 items
8213
Analog Video, RG11, #14 Solid BC, 95% BC Braid, PE Jacket
BC - Bare Copper · PE - Polyethylene (Foam) · PE - Polyethylene
3 items
1694D
Serial Digital Coax, Dual RG6, #18 Solid BC, Duofoil® + 95% TC braid, CMR
BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride · 300 V RMS
2 items

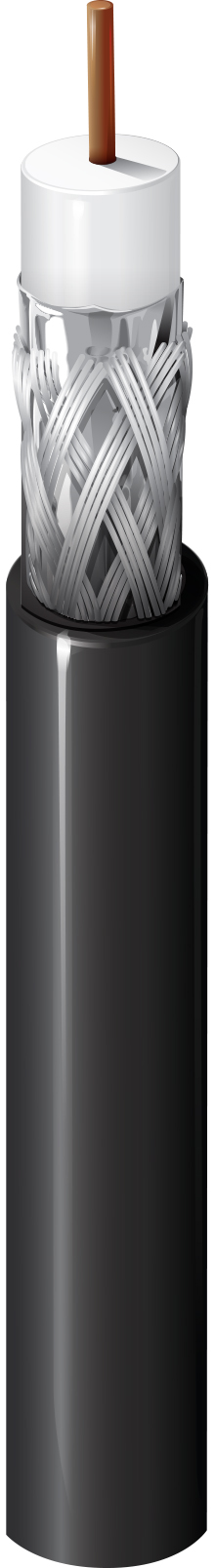

1695PX
75 Ohm SDI Coax, RG-6, 18 AWG Solid BC, Foil + 95% TC Braid, PVDF Jacket, I/O CMP
18 AWG · BC - Bare Copper · FEP - Fluorinated Ethylene Propylene (Foam) · FEP - Fluorinated Ethylene Propylene
2 items

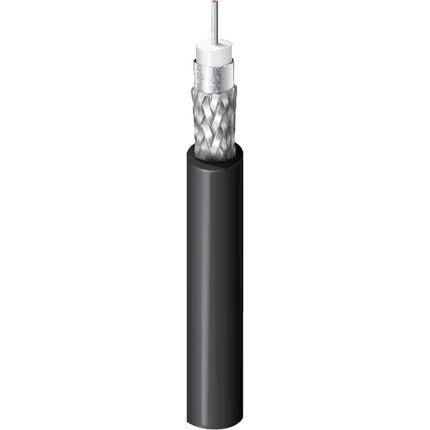

4694PX
4K UHD Coax for 12G-SDI, 75 Ohm, RG-6, 18 AWG Solid SC, Foil + 95% TC Braid, PVDF Jacket, I/O CMP
1 · 18 AWG · SC - Silvered Copper · FEP - Fluorinated Ethylene Propylene (Foam)
2 items
9165
Composite ENG, EFP and CCTV
PVC - Polyvinyl Chloride · 30 V RMS
2 items
9209
Precision Video Coax, Miniature, #23 Solid BC, Foil + 95% TC Braid
23 · BC - Bare Copper · PE - Polyethylene
2 items
9265
Composite ENG, EFP and CCTV
PVC - Polyvinyl Chloride · 30 V RMS
2 items
9274
Analog Video, RG59, #20 Solid BCCS, 95% BC Braid, PVC Jacket, CM
20 · BCCS - Bare Copper Covered Steel · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
2 items
9659
Analog Video, RG59, #22 Str BC, 95% BC Braid, PVC Jacket, CMX
BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride (Non-Contaminating) · 150 V RMS
2 items
82248
Analog Video, RG6 #18 Solid BC, Foil + 65% TC Braid, Flamarrest® Jacket, CMP
BC - Bare Copper · FEP - Fluorinated Ethylene Propylene (Foam) · PVC - Polyvinyl Chloride · 300 V RMS
2 items
89292
Analog Video, RG11, #14 Solid BC, Foil + 65% TC Braid, FEP Jacket, CMP
BC - Bare Copper · FEP - Fluorinated Ethylene Propylene (Foam) · FEP - Fluorinated Ethylene Propylene · 300 V RMS
2 items
1282P
RGB Video, Mini Hi-Res, #25 Solid TC, Foil + 95% TC Braid, CMP
TC - Tinned Copper · PFA - Perfluoroalkoxy (Foam) · PVC - Polyvinyl Chloride · 300 V RMS
1 item
1369P
Serial Digital Coax, RG6, #18 Solid BC, Foil + 85% TC Braid, CMP
BC - Bare Copper · FEP - Fluorinated Ethylene Propylene (Foam) · PVC - Polyvinyl Chloride · 300 V RMS
1 item
1369R
Serial Digital Coax, RG6, #18 Solid BC, Foil + 85% TC Braid, CMR
BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride · 300 V RMS
1 item
1370P
Serial Digital Coax, RG59 Type, 20 AWG Solid BC, Foil + 85% TC Braid, CMP
BC - Bare Copper · FEP - Fluorinated Ethylene Propylene (Foam) · PVC - Polyvinyl Chloride · 300 V RMS
1 item
1672J
75 Ohm High-Frequency Conformable Coax, #29 SCCCS Coax, Unjacketed
SCCS - Silvered Copper Covered Steel · PTFE - Polytetrafluoroethylene · PVC - Polyvinyl Chloride · 30 V RMS
1 item

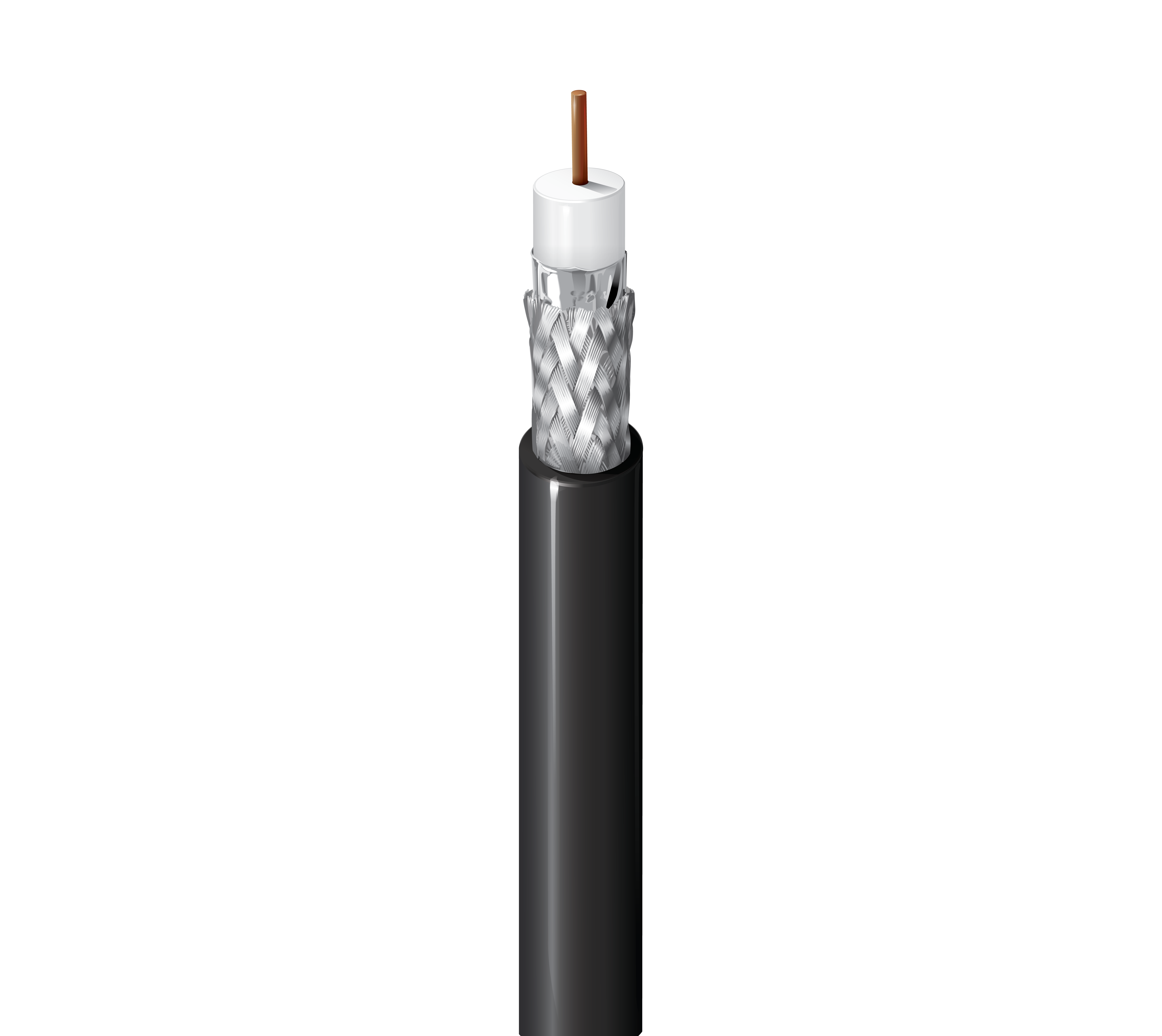

1694SB
75 Ohm SDI Coax, RG-6, 18 AWG Solid BC, Foil + 95% TC Braid, LSZH Jkt, CMG-LS, ABS Certified
18 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · LSZH - Low Smoke Zero Halogen (Flame Retardant)
1 item
1807A
S-Video, High-Flex, Dual Mini 75 Ohm #30 Coax, Parallel
TC - Tinned Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
1 item
1865A
Serial Digital Coax, Sub-miniature, #25 Stranded BC, CMR
25 · BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
1 item
7731SB
75 Ohm SDI Coax, RG-11, 14 AWG, Solid BC, Foil + 95% TC Braid, LSZH Jkt, CMG-LS, ABS Certified
14 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · LSZH - Low Smoke Zero Halogen (Flame Retardant)
1 item7731WB
Serial Digital Coax, RG11, #14 Solid BC, Foil + 95% TC braid, Waterblocked
BC - Bare Copper · PE - Polyethylene (Foam) · PE - Polyethylene · 300 V RMS
1 item
8279
Precision Video Coax, Miniature, #23 Stranded BC, 95% TC Braid
BC-C - Bare Copper (Compacted) · PE - Polyethylene
1 item

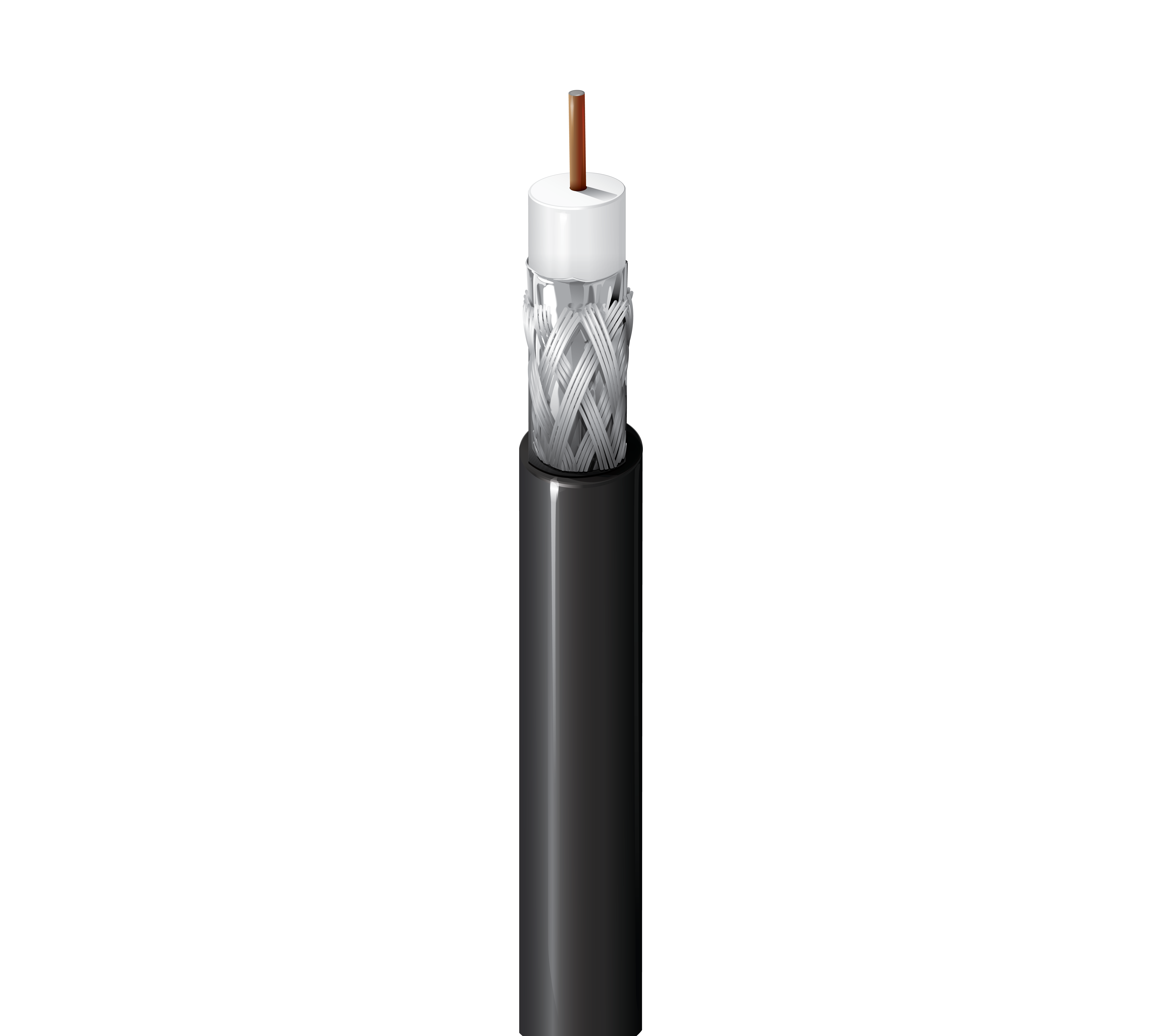

9116SB
75 Ohm SDI Coax, RG-6, 18 AWG Solid BCCS, Foil + 60% AL Braid, LSZH Jkt, CMG-LS, ABS Certified
1 · 18 AWG · BCCS - Bare Copper Covered Steel · PE - Polyethylene (Foam)
1 item
9141
Precision Video Coax, RG59, #20 Solid BC, Double 98% TC/BC Braid
20 · BC - Bare Copper · PE - Polyethylene
1 item
9224
Audio Coax, Low Noise, RG-59, 22 AWG Solid BCCS, 95% BC Brd, PVC Jkt
BCCS - Bare Copper Covered Steel · PVC - Polyvinyl Chloride
1 item
