Product Number: A03024B

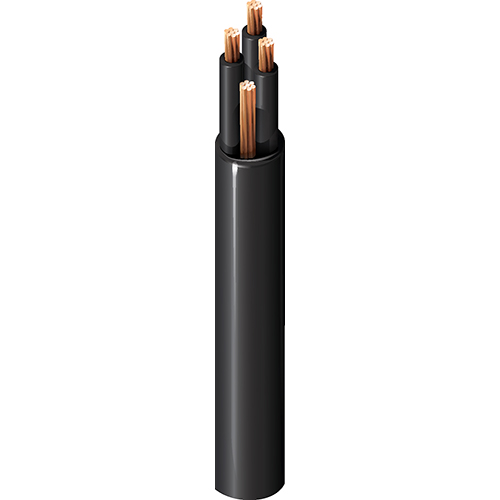

TC VN/PVC, 3+G C #2+6 Str BC, PVC-NYL Ins M4, Blk PVC Jkt, 600V TC-ER 90C Dry/Wet SUN RES DIR BUR

UL Type TC (1277) PVC-Nylon/PVC, 3+G Conductor 2+6AWG (Class B) Bare Copper, PVC-NYL Insulation M4 Color Code, Black PVC Outer Jacket, 600V TC-ER 90C Dry/Wet SUN RES DIR BUR

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

A03024B is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Putup Type	Order
A03024B 0102500	Reel	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.72 Revision Date: 02-20-2026

Product Overview

Suitable Applications	Power and Control Applications up to 600V

Construction Details

Overall Cable Diameter (Nominal)	0.987 in

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	3	1 AWG	7x10	BC - Bare Copper
Ground Wire	1	6 AWG	7x14	BC - Bare Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	PVC/Nylon - Polyvinyl Chloride + Nylon	0.038 in (0.97 mm)	0.254 in mm	Black and Numbered
Ground Wire	No Insulation

Outer Shield

Material	No Shield

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.083 in (2.1 mm)
Nom. Diameter	0.987 in
Ripcord	Yes

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	0.166 Ohm/1000ft	130 Amps per Conductor at 30oC
Ground Wire	0.47 Ohm/1000ft (1.5 Ohm/km)

Voltage

UL Voltage Rating	600 V

Mechanical Characteristics

Max. Pull Tension	3508.3 lbs (1591.3 kg)
Bulk Cable Weight	754 lbs/1000ft

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	-25°C To +90°C

Bend Radius

Stationary Min.	3.948 in (100.3 mm)
Installation Min.	4.935 in

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire	UL 1685 UL Loading, IEEE 1202 FT4
NEC / UL Compliance	Article 336, TC-ER, THWN-2
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
