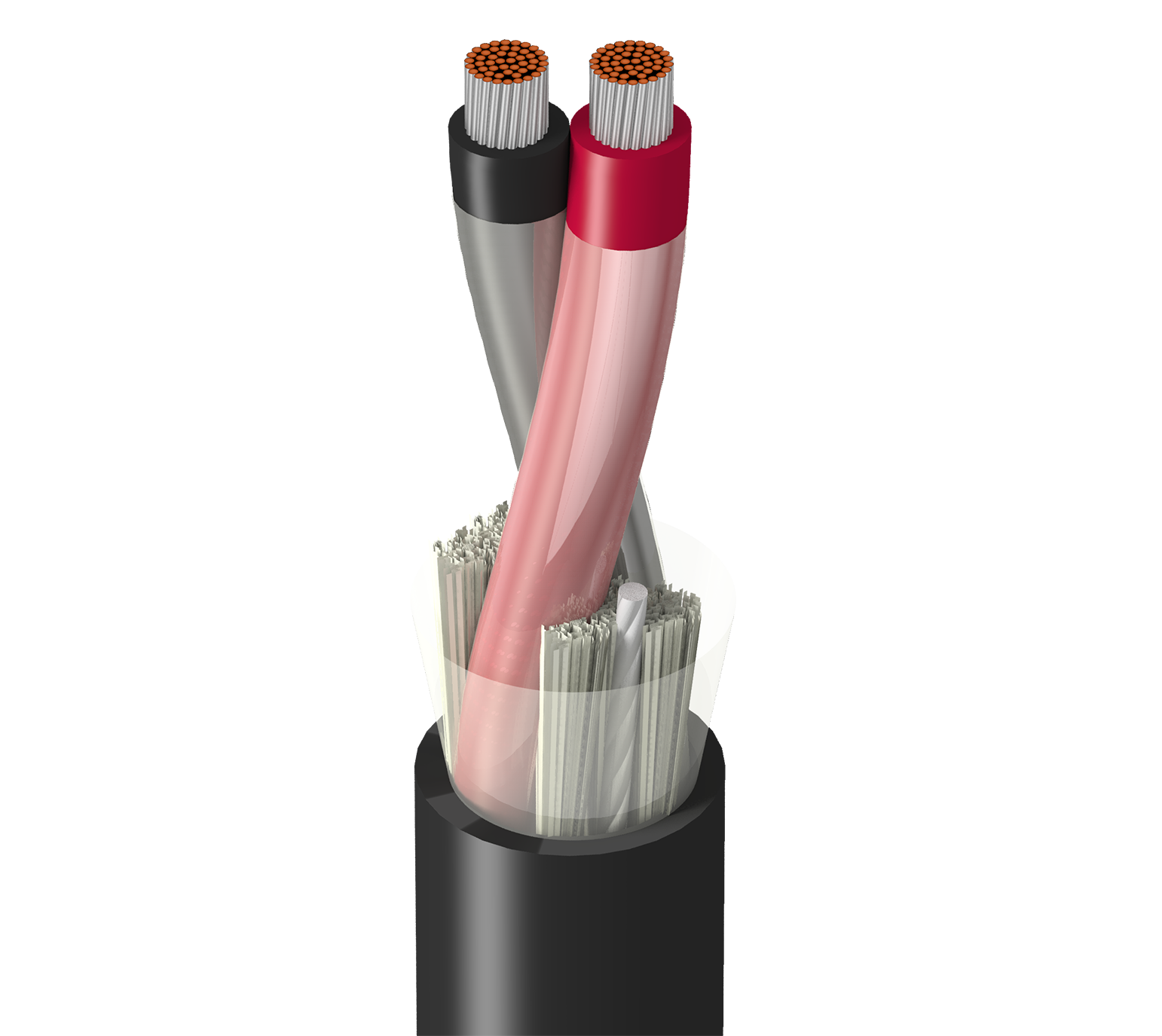

High Perform Instr, 1 Pr #14 Str TC, PVC-NYL Ins E2, Blk PVC Jkt, 600V TC
High Performance Instrumentation, 1 Pair 14AWG (41x30) Tinned Copper, PVC-NYL Insulation E2 Color Code, Black PVC Outer Jacket, 600V TC
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
9488 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 9488 0101000 | Black | 612825253815 | C | Order online |
| 9488 0105000 | Black | 612825253822 | C Z | Order online |
Specifications
Product Overview
| Suitable Applications | Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, ...), encoders, control circuits, distributed control |
|---|
Construction Details
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 14 |
| Stranding | 41x30 |
| Material | TC - Tinned Copper |
Insulation
| Material | PVC/Nylon - Polyvinyl Chloride + Nylon |
|---|---|
| Nom. Thickness | 0.023 in (0.58 mm) |
| Nom. Insulation Diameter | 0.119 in (3.02 mm) |
| Color Code | Black, Red |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.048 in (1.2 mm) |
| Nom. Diameter | 0.359 in (9.12 mm) |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 2.6 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 50 pF/ft (160 pF/m) |
| Nom. Inductance | 0.24 μH/ft (0.79 μH/m) |
| Max. Current | 26 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 600 V (TC), 150 V (NPLF) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 107 lbs (48.5 kg) |
|---|---|
| Bulk Cable Weight | 70 lbs/1000ft |
Temperature
| UL Temperature | 90°C Dry, 90°C Wet |
|---|---|
| Operating | Wet/Dry: -30°C to 90°C |
Bend Radius
| Stationary Min. | 1.4 in (36 mm) |
|---|---|
| Installation Min. | 1.75 in (44.5 mm) |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, Burial |
|---|---|
| Flammability / Reaction to Fire | UL 1685 UL loading, IEEE 1202 FT4 |
| NEC / UL Compliance | Article 336, Article 760, NPLF, TC, THWN-2 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | Alternate color coding available upon request. |
|---|
History
| Update and Revision | Revision Number: 0.580 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN. |
