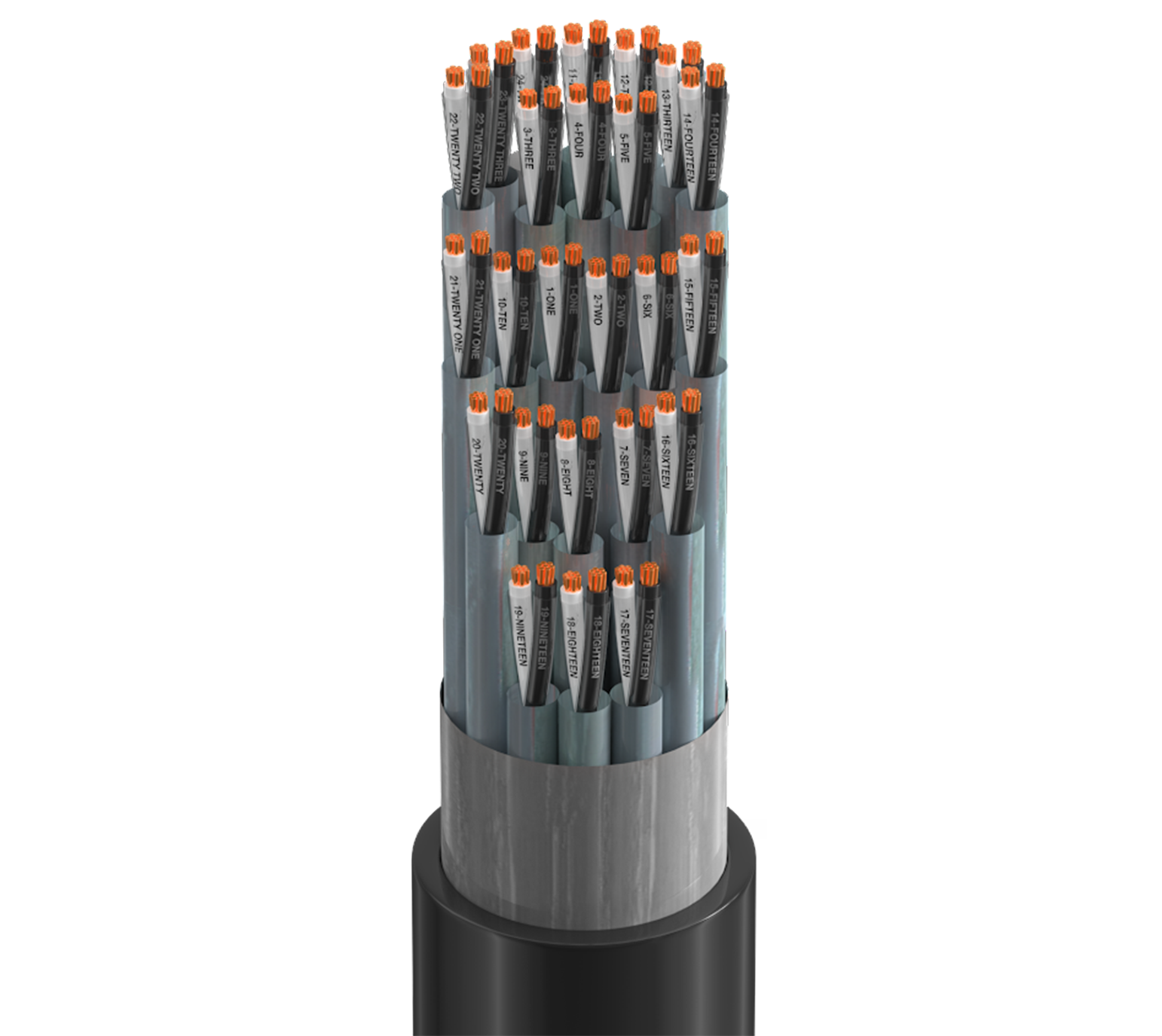

Product Number: 62P1624

Inst PVC/PVC, 24 Pr #16 Str BC, PVC-NYL Ins E1, IS/OS, Blk PVC Jkt, TC-ER NPLF 90C Dry 75C Wet

UL Instrumentation, 24 Pair 16AWG (7x24) Bare Copper, PVC-NYL Insulation E1 Color Code, Individual & Overall Beldfoil® Shield, Black PVC Outer Jacket, TC-ER NPLF 90C Dry 75C Wet SUN RES DIR BUR

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

62P1624 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Putup Type	Order
62P1624 0102500	Reel	Order online
62P1624 0105000	Reel	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.74 Revision Date: 04-10-2026

Product Overview

Suitable Applications	Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, ...), encoders, control circuits, distributed control

Construction Details

Conductor

Element	Pair(s)
No. of Elements	24
Size	16
Stranding	7x24
Material	BC - Bare Copper

Insulation

Material	PVC/Nylon - Polyvinyl Chloride + Nylon
Nom. Thickness	0.022 in (0.56 mm)
Nom. Insulation Diameter	0.101 in (2.57 mm)
Color Code	ICEA Chart E1

Inner Shield

Element	Each Pair
Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	20 AWG (7x28) TC

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	20 AWG (7x28) TC

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.084 in (2.1 mm)
Nom. Diameter	1.244 in (31.60 mm)
Ripcord	Yes

Electrical Characteristics

Nom Outer Shield DCR	1.3 Ohm/1000ft (4.3 Ohm/km)

Electricals

Nom. Conductor DCR	4.26 Ohm/1000ft
Nom. Inner Shield DCR	1.33 Ohm/1000ft (4.36 Ohm/km)
Max. Current	6 Amps per Conductor at 30oC

Voltage

UL Voltage Rating	600 V (TC-ER), 150 V (NPLF)

Mechanical Characteristics

Max. Pull Tension	2028 lbs (919.9 kg)
Bulk Cable Weight	888 lbs/1000ft

Temperature

UL Temperature	90°C Dry, 75°C Wet
Operating	-30°C To +90°C Dry, +75°C Wet
Installation	-25°C To +90°C

Bend Radius

Stationary Min.	6.2 in (160 mm)
Installation Min.	6.2 in (160 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire	UL 1685 UL loading, IEEE 1202 FT4
NEC / UL Compliance	Article 336, Article 760, NPLF, TC-ER
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
