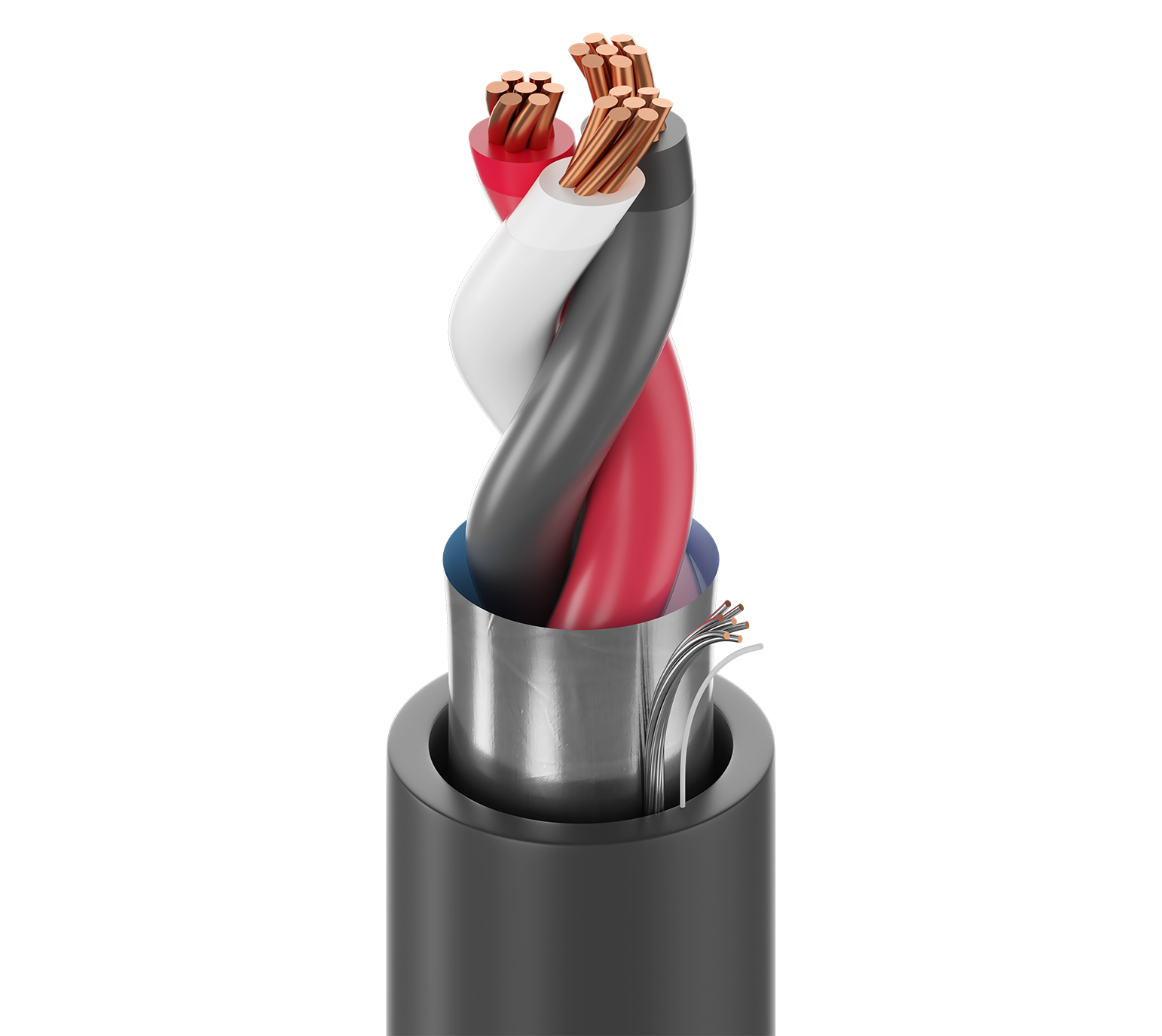

Product Number: 3091A

Inst, 1 Tri #16 Str BC, PVC-NYL Ins E1, OS, Blk PVC Jkt, 600V TC-ER 150V NPLF 90C Dry/Wet

UL Instrumentation, 1 Triad 16AWG (7x24) Bare Copper, PVC-NYL Insulation E1 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

3091A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
3091A 0101000	Black	Reel	1,000 ft	612825334361	Order online
3091A 01010000	Black	Reel	10,000 ft	612825141273	Order online

Specifications

Product Overview

Suitable Applications	Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, ...),RTD, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, actuators, positioners

Construction Details

Overall Cable Diameter (Nominal)	0.315 in (8.00 mm)

Conductor

Element	Triad(s)
No. of Elements	1
Size	16 AWG
Stranding	7x24
Material	BC - Bare Copper

Insulation

Element	Triad(s)
Material	PVC/Nylon - Polyvinyl Chloride + Nylon
Nom. Thickness	0.022 in (0.56 mm)
Nom. Insulation Diameter	0.101 in (2.57 mm)
Color Code	Black, White, Red

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	18 AWG (7x26) TC

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.047 in (1.2 mm)
Nom. Diameter	0.315 in (8.00 mm)
Ripcord	Yes

Electrical Characteristics

Nom Outer Shield DCR	5.47 Ohm/1000ft (17.9 Ohm/km)

Electricals

Element	Triad(s)
Nom. Conductor DCR	4.45 Ohm/1000ft
Max. Current	6.2 Amps per conductor at 25°C

Voltage

UL Voltage Rating	600 V (TC-ER), 150 V (NPLF)

Mechanical Characteristics

Max. Pull Tension	129 lbs (58.5 kg)
Bulk Cable Weight	62 lbs/1000ft

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	-30°C to +90°C Dry, 75°C wet

Bend Radius

Stationary Min.	3.8 in (97 mm)
Installation Min.	3.8 in (97 mm)

Standards and Compliance

Environmental Suitability	Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire	UL 1685 UL Loading, IEEE 1202, FT4
NEC / UL Compliance	Article 336, Article 760, NPLF, TC-ER
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
