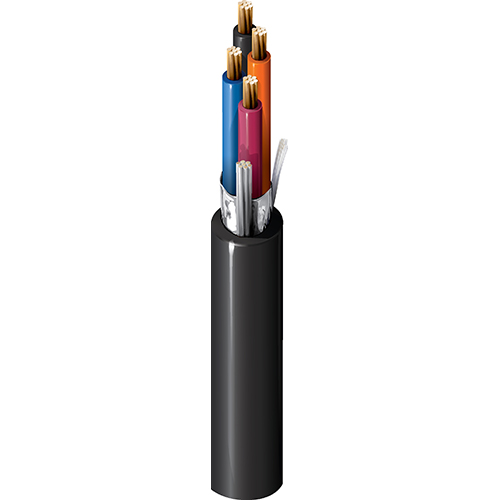

Product Number: 28601AS

TC VN/PVC, 8 C #18 Str BC, PVC-NYL Ins E2, OS, Blk PVC Jkt, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR

UL Type TC (1277) PVC-Nylon/PVC, 8 Conductor 18AWG (7x26) Bare Copper, PVC-NYL Insulation E2 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

28601AS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
28601AS 0105000	Black	Reel	5,000 ft	612825136170	C Z	Order online
28601AS01010000	Black	Reel	10,000 ft	612825136187	C Z	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.381 Revision Date: 02-20-2026
Footnote	C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

Product Overview

Suitable Applications	Power and Control Applications up to 600V

Construction Details

Overall Cable Diameter (Nominal)	0.392 in

Conductor

Element	Conductor(s)
No. of Elements	8
Size	18 AWG
Stranding	7x26
Material	BC - Bare Copper

Insulation

Element	Conductor(s)
Material	PVC/Nylon - Polyvinyl Chloride + Nylon
Nom. Thickness	0.022 in (0.56 mm)
Nom. Insulation Diameter	0.088 in (2.2 mm)
Color Code	Black, Red, Blue, Orange, Yellow, Brown, Red/Black, Blue/Black

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	18 AWG (7x26) TC

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.047 in (1.2 mm)
Nom. Diameter	0.392 in
Ripcord	Yes

Electrical Characteristics

Nom Outer Shield DCR	5.11 Ohm/1000ft (16.8 Ohm/km)

Electricals

Nom. Conductor DCR	7.06 Ohm/1000ft
Max. Current	9.8 Amps per Conductor at 30oC

Voltage

UL Voltage Rating	600 V (TC-ER), 150 V (NPLF)

Mechanical Characteristics

Max. Pull Tension	179.2 lbs (81.28 kg)
Bulk Cable Weight	103 lbs/1000ft

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	Wet/Dry: -30°C to 90°C

Bend Radius

Stationary Min.	4.704 in (119.5 mm)
Installation Min.	4.704 in

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire	UL 1685 UL Loading, IEEE 1202 FT4
NEC / UL Compliance	Article 760, Article 336, Article 402, TC-ER, NPLF, TFFN
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

History

Update and Revision	Revision Number: 0.381 Revision Date: 02-20-2026
Footnote	C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
