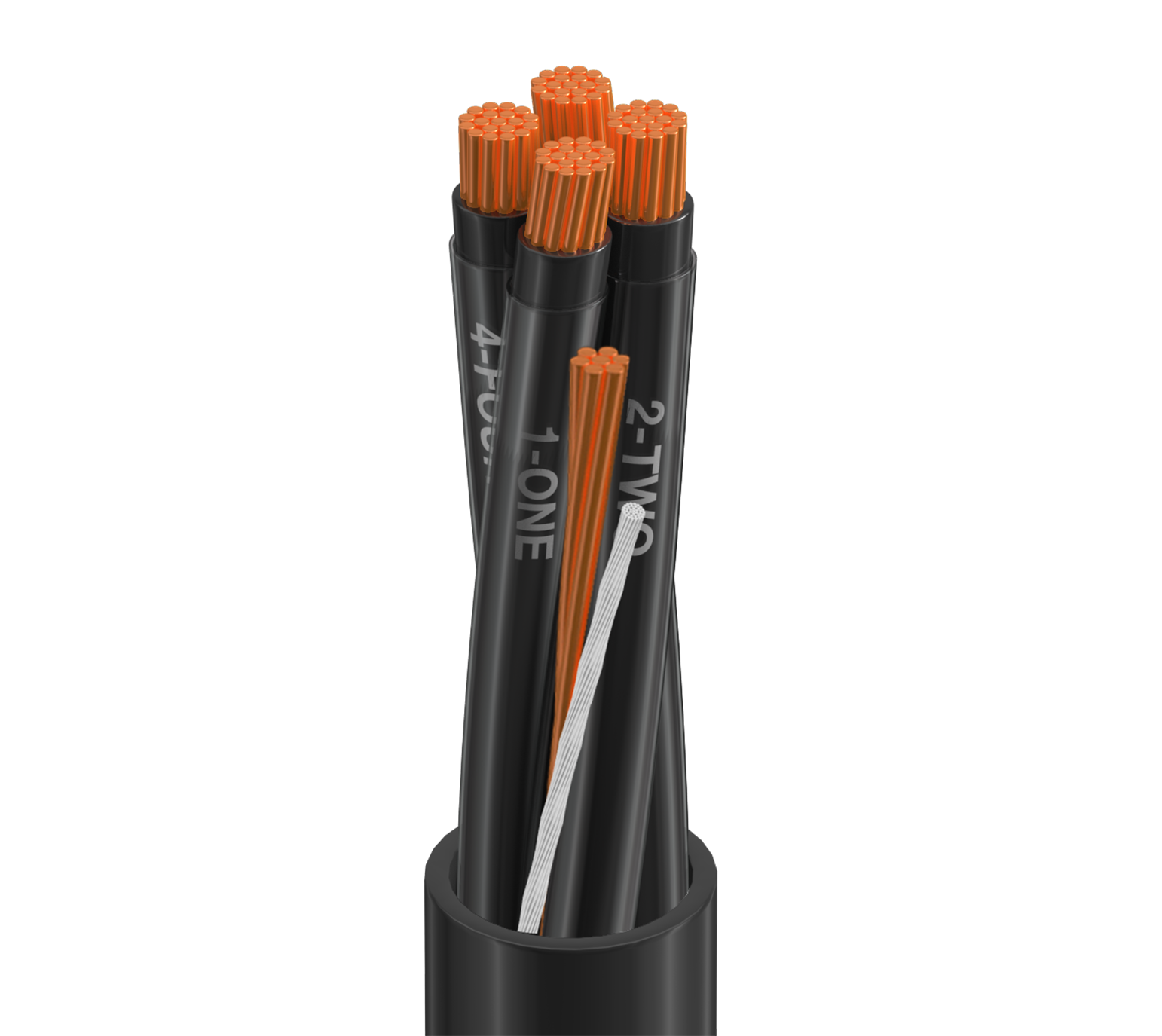

Product Number: 28178A

TC VN/PVC, 4+G C #4/0+4 Str BC, PVC-NYL Ins M4, Blk PVC Jkt, 600V TC-ER 90C Dry/Wet SUN RES DIR BUR

UL Type TC (1277) PVC-Nylon/PVC, 4+G Conductor 4/0+4AWG (19x10+7x12) Bare Copper, PVC-NYL Insulation M4 Color Code, Black PVC Outer Jacket, 600V TC-ER 90C Dry/Wet SUN RES DIR BUR

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

28178A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Putup Type	UPC	Order
28178A 0102500	Reel	612825365563	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.198 Revision Date: 02-20-2026

Product Overview

Suitable Applications	Power and Control Applications up to 600V; Class 1 Division 2 Hazardous Locations; Recommended Cable Gland Belden BTC200A1971RA

Construction Details

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	4	4/0	19x10	BC - Bare Copper
Ground	1	4	7x12	BC - Bare Copper

Insulation

Material	PVC/Nylon - Polyvinyl Chloride + Nylon
Nom. Thickness	0.054 in (1.4 mm)
Nom. Insulation Diameter	0.621 in (15.8 mm)
Color Code	ICEA Chart M4

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.116 in (2.95 mm)
Nom. Diameter	1.775 in (45.09 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	0.052 Ohm/1000ft	208 Amps per Conductor at 30oC
Ground	0.26 Ohm/1000ft (0.85 Ohm/km)	95 Amps per Conductor at 30oC

Voltage

UL Voltage Rating	600 V (TC-ER)

Mechanical Characteristics

Max. Pull Tension	10691 lbs (4849.4 kg)
Bulk Cable Weight	3386 lbs/1000ft

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	-30°C to 90°C Dry/Wet

Bend Radius

Stationary Min.	8.85 in (225 mm)
Installation Min.	8.85 in (225 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire	UL 1685 UL loading, IEEE 1202 FT4
NEC / UL Compliance	Article 336, TC-ER, THWN-2
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
