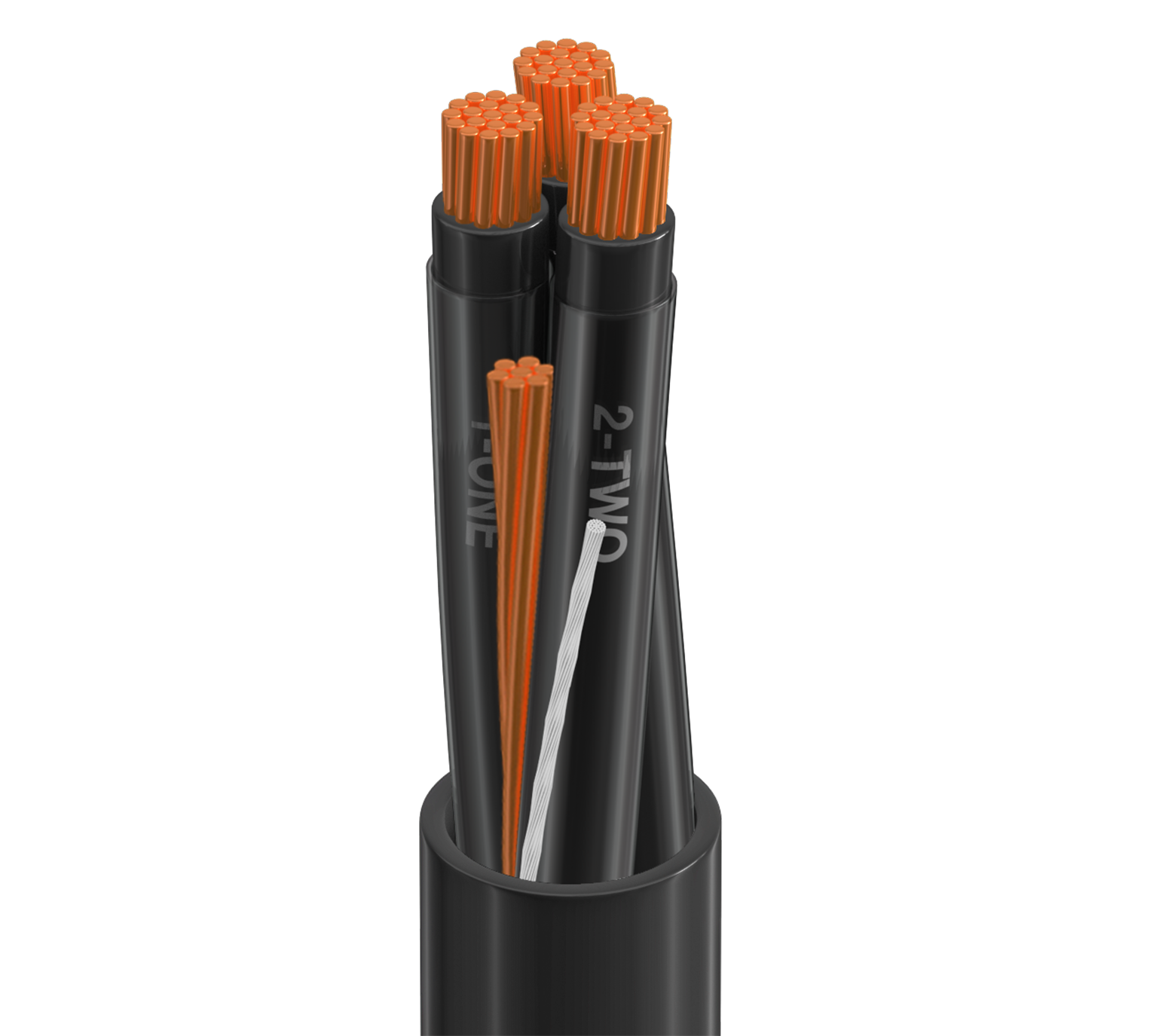

Product Number: 28177A

TC VN/PVC, 3+G C #4/0+4 Str BC, PVC-NYL Ins M4, Blk PVC Jkt, 600V TC-ER 90C Dry/Wet SUN RES DIR BUR

UL Type TC (1277) PVC-Nylon/PVC, 3+G Conductor 4/0+4AWG (Class B) Bare Copper, PVC-NYL Insulation M4 Color Code, Black PVC Outer Jacket, 600V TC-ER 90C Dry/Wet SUN RES DIR BUR

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

28177A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Putup Type	UPC	Order
28177A 0102500	Reel	612825365686	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.148 Revision Date: 04-08-2026

Product Overview

Suitable Applications	Power and Control Applications up to 600V; Class 1 Division 2 Hazardous Locations; Recommended Cable Gland Belden BTC200A1741RA

Construction Details

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	3	4/0	19x10	BC - Bare Copper
Ground	1	4	7x12	BC - Bare Copper

Insulation

Material	PVC/Nylon - Polyvinyl Chloride + Nylon
Nom. Thickness	0.054 in (1.4 mm)
Nom. Insulation Diameter	0.621 in (15.8 mm)
Color Code	Black and Numbered

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.083 in (2.1 mm)
Nom. Diameter	1.543 in (39.19 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	0.052 Ohm/1000ft	260 Amps per Conductor at 30oC
Ground	0.26 Ohm/1000ft (0.85 Ohm/km)	95 Amps per Conductor at 30oC

Voltage

UL Voltage Rating	600 V (TC-ER)

Mechanical Characteristics

Max. Pull Tension	8017.6 lbs (3636.7 kg)
Bulk Cable Weight	2525 lbs/1000ft

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	Wet/Dry: -30°C to 90°C

Bend Radius

Stationary Min.	7.7 in (200 mm)
Installation Min.	7.7 in (200 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire	UL 1685 UL loading, IEEE 1202 FT4
NEC / UL Compliance	Article 336, TC-ER, THWN-2
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
