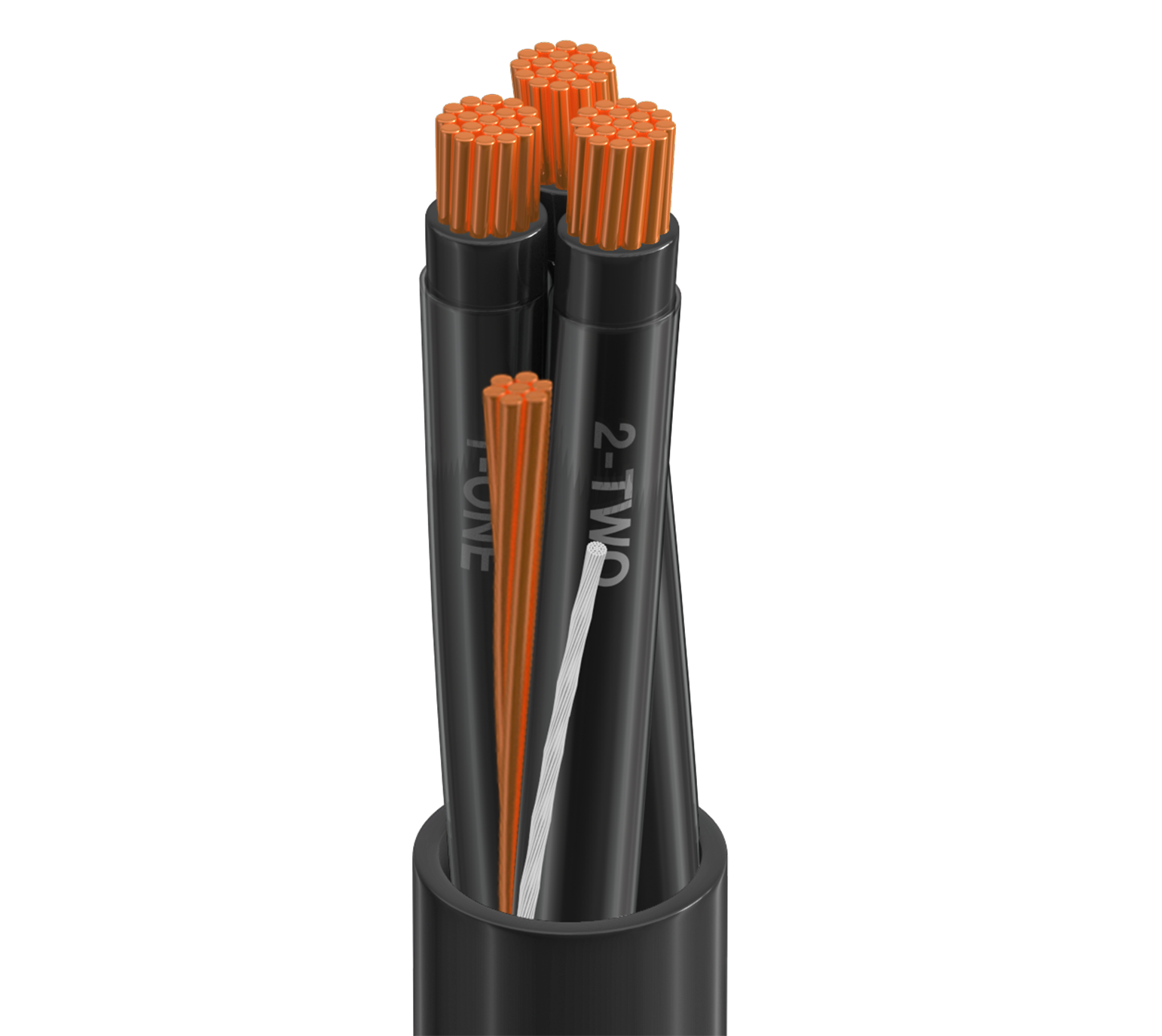

Product Number: 28168A

TC VN/PVC, 3+G C #1/0+6 Str BC, PVC-NYL Ins M4, Blk PVC Jkt, 600V TC-ER 90C Dry/Wet SUN RES DIR BUR

UL Type TC (1277) PVC-Nylon/PVC, 3+G Conductor 1/0+6AWG (19x12+7x14H) Bare Copper, PVC-NYL Insulation M4 Color Code, Black PVC Outer Jacket, 600V TC-ER 90C Dry/Wet SUN RES DIR BUR

Availability: Global
Status: Active
Orderable items: 4

Ships from and sold by A5 IT.

Part numbers

28168A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Putup Type	UPC	Order
28168A 0102500	Reel	612825365662	Order online
28168A 0103500	Reel	—	Order online
28168A 0105000	Reel	612825365327	Order online
28168A 0105300	Reel	—	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.91 Revision Date: 04-08-2026

Product Overview

Suitable Applications	Power and Control Applications up to 600V; Class 1 Division 2 Hazardous Locations; Recommended Cable Gland Belden BTC125A1271RA

Construction Details

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	3	1/0	19x12	BC - Bare Copper
Ground	1	6	7x14	BC - Bare Copper

Insulation

Material	PVC/Nylon - Polyvinyl Chloride + Nylon
Nom. Thickness	0.054 in (1.4 mm)
Nom. Insulation Diameter	0.471 in (12.0 mm)
Color Code	Black and Numbered

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.083 in (2.1 mm)
Nom. Diameter	1.22 in (31.0 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	0.106 Ohm/1000ft	170 Amps per Conductor at 30oC
Ground	0.4 Ohm/1000ft (1.3 Ohm/km)	75 Amps per Conductor at 30oC

Voltage

UL Voltage Rating	600 V (TC-ER)

Mechanical Characteristics

Max. Pull Tension	4108.1 lbs (1863.4 kg)
Bulk Cable Weight	1373 lbs/1000ft

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	Wet/Dry: -30°C to 90°C

Bend Radius

Stationary Min.	6.1 in (150 mm)
Installation Min.	6.1 in (150 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire	UL 1685 UL loading, IEEE 1202 FT4
NEC / UL Compliance	Article 336, TC-ER, THWN-2
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
