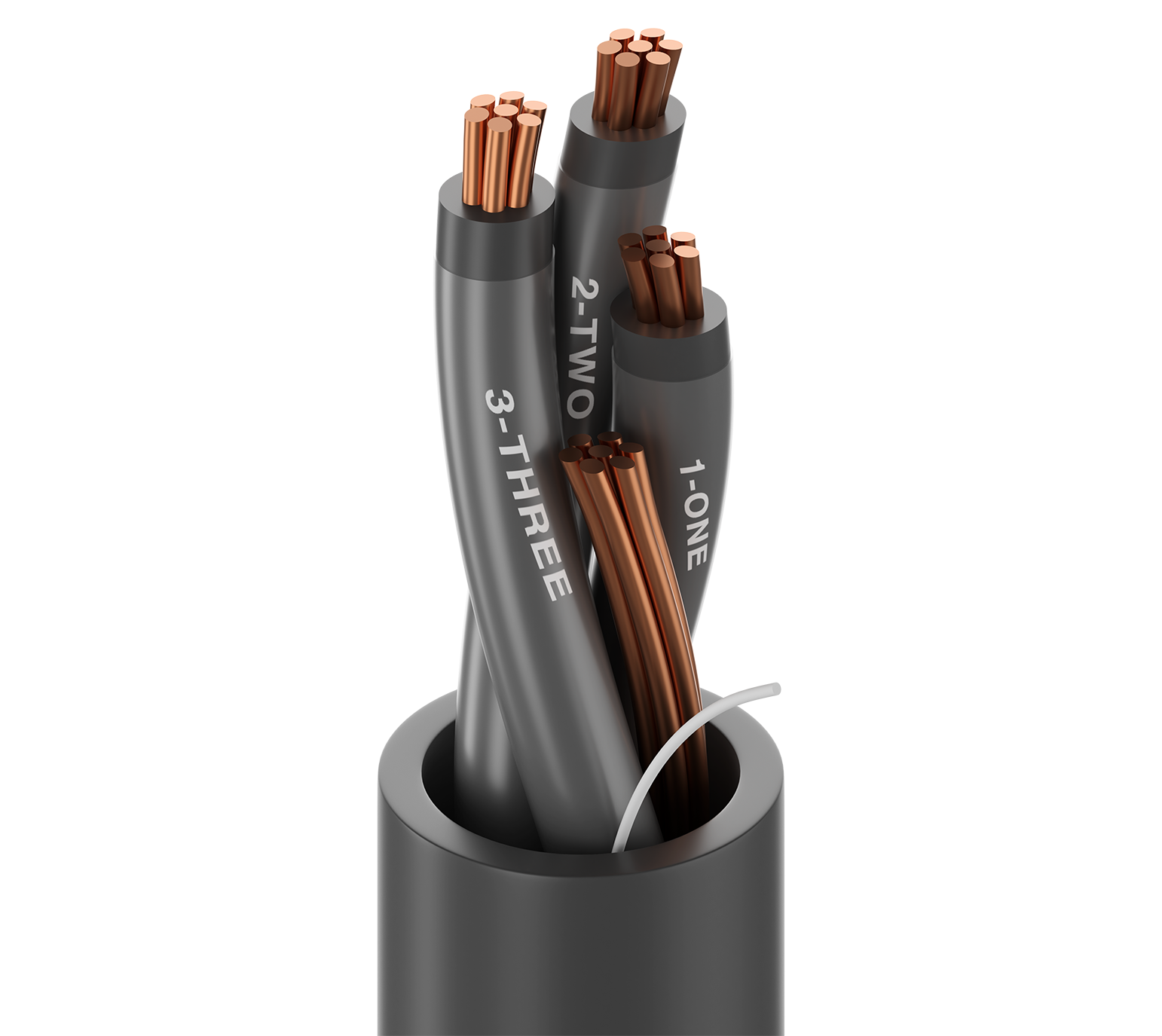

Product Number: 28153A

TC VN/PVC, 3+G C #6+8 Str BC, PVC-NYL Ins M4, Blk PVC Jkt, 600V TC-ER 90C Dry/Wet SUN RES DIR BUR

UL Type TC (1277) PVC-Nylon/PVC, 3+G Conductor 6+8AWG (7x14+7x16) Bare Copper, PVC-NYL Insulation M4 Color Code, Black PVC Outer Jacket, 600V TC-ER 90C Dry/Wet SUN RES DIR BUR

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

28153A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
28153A 0105000	Black	Reel	5,000 ft	612825135531	Order online
28153A 01010000	Black	Reel	10,000 ft	612825135524	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.614 Revision Date: 04-08-2026

Product Overview

Suitable Applications	Power and Control Applications up to 600V; Class 1 Division 2 Hazardous Locations; Recommended Cable Gland Belden BTC075A0791RA

Construction Details

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	3	6	7x14	BC - Bare Copper
Ground	1	8	7x16	BC - Bare Copper

Insulation

Material	PVC/Nylon - Polyvinyl Chloride + Nylon
Nom. Thickness	0.032 in (0.81 mm)
Nom. Insulation Diameter	0.242 in (6.15 mm)
Color Code	Black and Numbered

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.063 in (1.6 mm)
Nom. Diameter	0.68 in (17 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	0.4 Ohm/1000ft	75 Amps per Conductor at 30oC
Ground	0.65 Ohm/1000ft (2.1 Ohm/km)	57 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	600 V (TC-ER)

Mechanical Characteristics

Max. Pull Tension	1262.1 lbs (572.48 kg)
Bulk Cable Weight	410 lbs/1000ft

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	Wet/Dry: -30°C to 90°C

Bend Radius

Stationary Min.	2.72 in (69.1 mm)
Installation Min.	3.4 in (86 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire	UL 1685 UL loading, IEEE 1202 FT4
NEC / UL Compliance	Article 336, TC-ER, THWN-2 Singles
European Directive Compliance	EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
