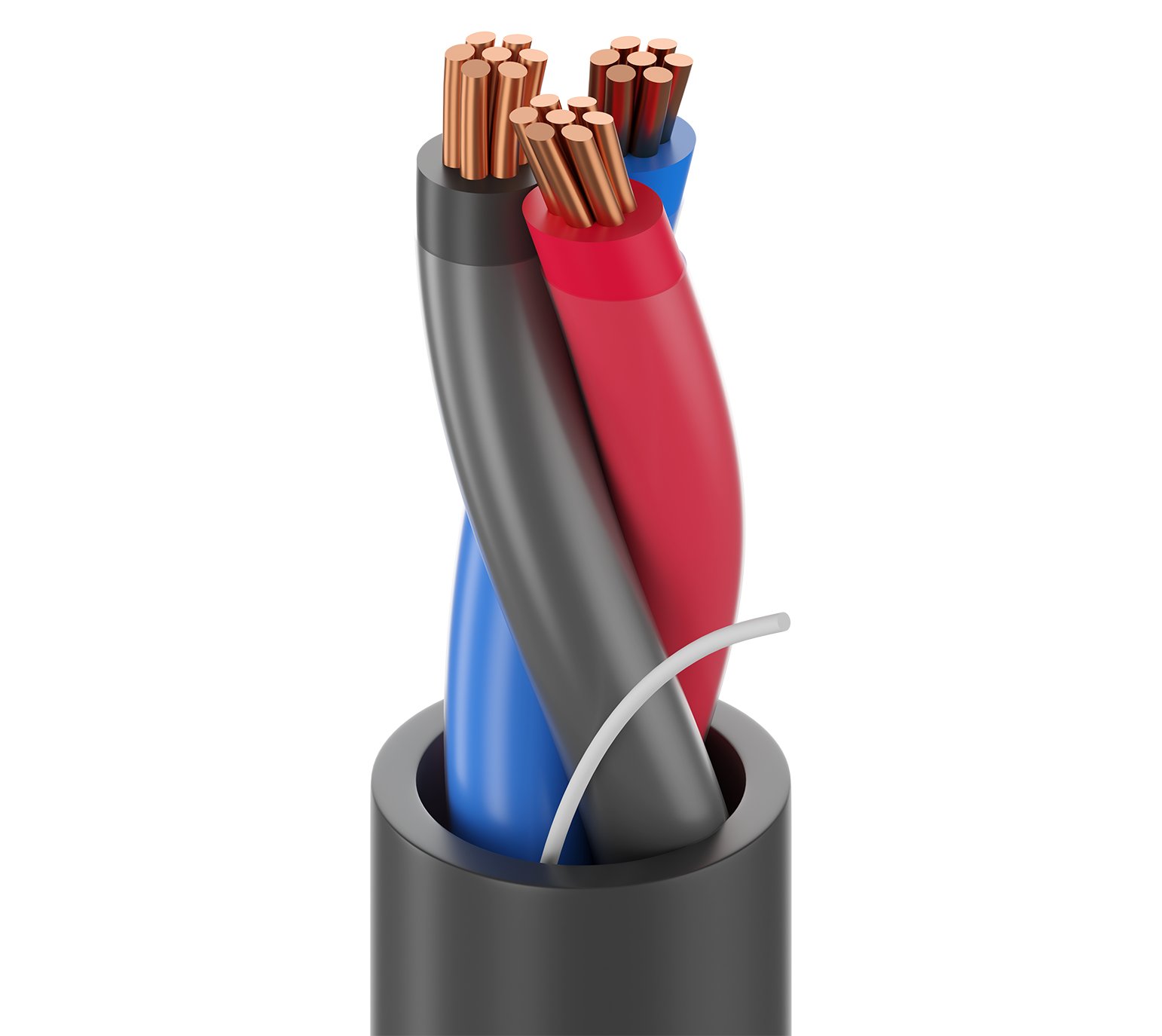

Product Number: 28139A

TC VN/PVC, 3 C #10 Str BC, PVC-NYL Ins E2, Blk PVC Jkt, 600V TC-ER 90C Dry/Wet SUN RES DIR BUR

UL Type TC (1277) PVC-Nylon/PVC, 3 Conductor 10AWG (7x18) Bare Copper, PVC-NYL Insulation E2 Color Code, Black PVC Outer Jacket, 600V TC-ER 90C Dry/Wet SUN RES DIR BUR

Availability: Global
Status: Active
Orderable items: 4

Ships from and sold by A5 IT.

Part numbers

28139A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Putup Type	UPC	Order
28139A 0105000	Reel	612825135425	Order online
28139A 0101000	Reel	612825135401	Order online
28139A 0105000	Reel	612825135425	Order online
28139A 01010000	Reel	612825135418	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.645 Revision Date: 04-08-2026
Footnote	C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

Product Overview

Suitable Applications	Power and Control Applications up to 600V; Class 1 Division 2 Hazardous Locations; Recommended Cable Gland Belden BTC075A0551RA

Construction Details

Overall Cable Diameter (Nominal)	0.447 in (11.4 mm)

Conductor

Element	Conductor(s)
No. of Elements	3
Size	10
Stranding	7x18
Material	BC - Bare Copper

Insulation

Material	PVC/Nylon - Polyvinyl Chloride + Nylon
Nom. Thickness	0.027 in (0.69 mm)
Nom. Insulation Diameter	0.166 in (4.22 mm)
Color Code	Black, Red, Blue

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.047 in (1.2 mm)
Nom. Diameter	0.447 in (11.4 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Nom. Conductor DCR	1.06 Ohm/1000ft
Max. Current	40 Amps per Conductor at 30oC

Voltage

UL Voltage Rating	600 V (TC-ER)

Mechanical Characteristics

Max. Pull Tension	450.4 lbs (204.3 kg)
Bulk Cable Weight	149 lbs/1000ft

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	Wet/Dry: -30°C to 90°C

Bend Radius

Stationary Min.	1.76 in (44.7 mm)
Installation Min.	2.2 in (56 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire	UL 1685 UL loading, IEEE 1202 FT4
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 336, TC-ER, THWN-2 Singles
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)

Product Notes

Notes	Nominal Loop Inductance: .167 ╡H/ft

History

Update and Revision	Revision Number: 0.645 Revision Date: 04-08-2026
Footnote	C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
