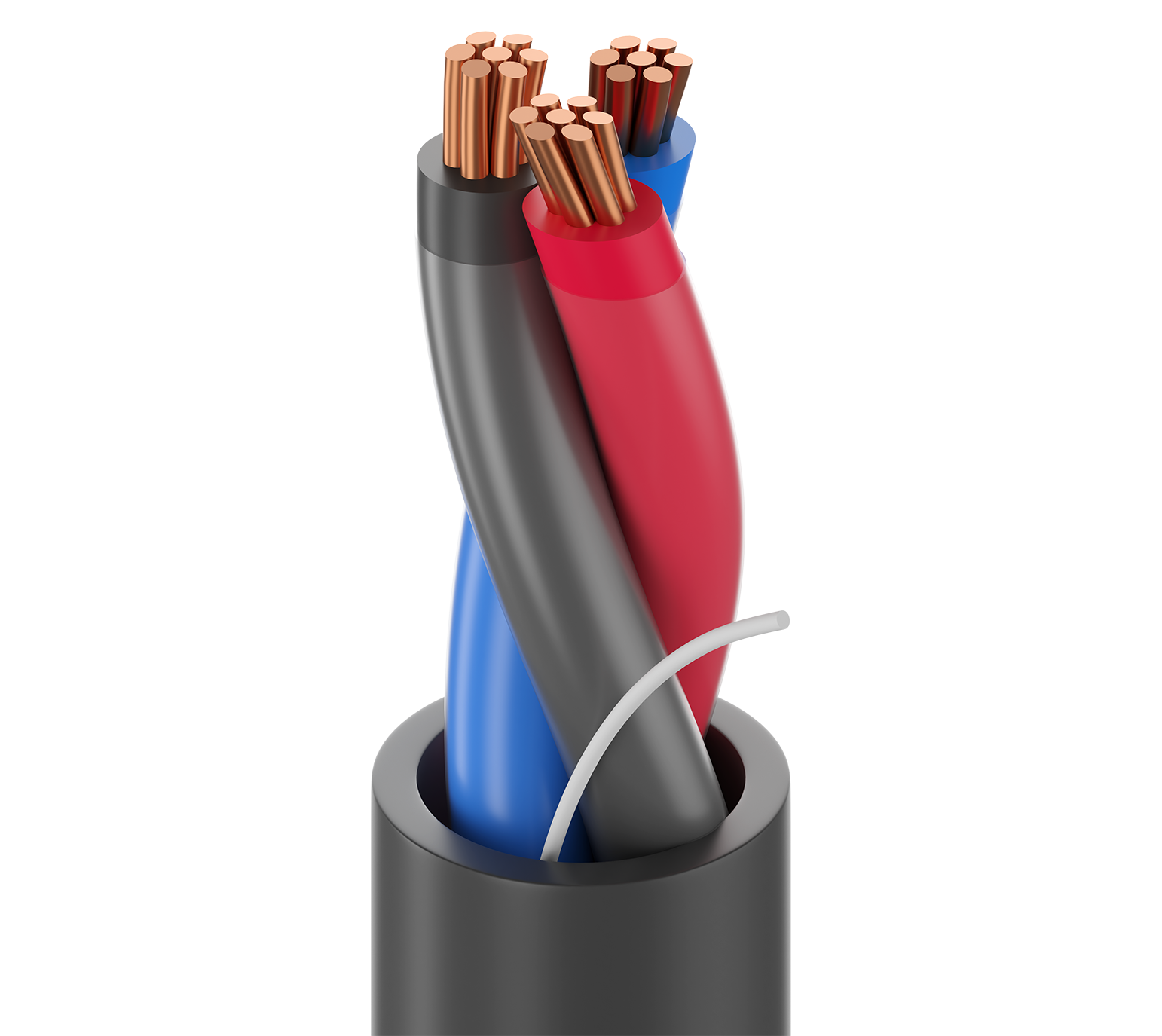

Product Number: 28110A

TC VN/PVC, 3 C #12 Str BC, PVC-NYL Ins E2, Blk PVC Jkt, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR

UL Type TC (1277) PVC-Nylon/PVC, 3 Conductor 12AWG (7x20) Bare Copper, PVC-NYL Insulation E2 Color Code, Black PVC Outer Jacket, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

28110A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Putup Type	UPC	Order
28110A 01025000	Reel	612825330356	Order online
28110A 0105000	Reel	612825135289	Order online
28110A 01010000	Reel	612825135272	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.636 Revision Date: 04-07-2026
Footnote	C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

Product Overview

Suitable Applications	Power and Control Applications up to 600V; Class 1 Division 2 Hazardous Locations; Recommended Cable Gland Belden BTC075A0551RA

Construction Details

Conductor

Element	Conductor(s)
No. of Elements	3
Size	12
Stranding	7x20
Material	BC - Bare Copper

Insulation

Material	PVC/Nylon - Polyvinyl Chloride + Nylon
Nom. Thickness	0.022 in (0.56 mm)
Nom. Insulation Diameter	0.134 in (3.40 mm)
Color Code	Black, Red, Blue

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.047 in (1.2 mm)
Nom. Diameter	0.382 in (9.70 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Nom. Conductor DCR	1.68 Ohm/1000ft
Max. Current	30 Amps per Conductor at 30oC

Voltage

UL Voltage Rating	600 V (TC-ER), 150 V (NPLF)

Mechanical Characteristics

Max. Pull Tension	260.4 lbs (118.1 kg)
Bulk Cable Weight	103 lbs/1000ft

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	Wet/Dry: -30°C to 90°C

Bend Radius

Stationary Min.	1.52 in (38.6 mm)
Installation Min.	1.9 in (48 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire	UL 1685 UL loading, IEEE 1202 FT4
NEC / UL Compliance	Article 336, Article 760, NPLF, TC-ER, THWN-2 Singles
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2)

History

Update and Revision	Revision Number: 0.636 Revision Date: 04-07-2026
Footnote	C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
